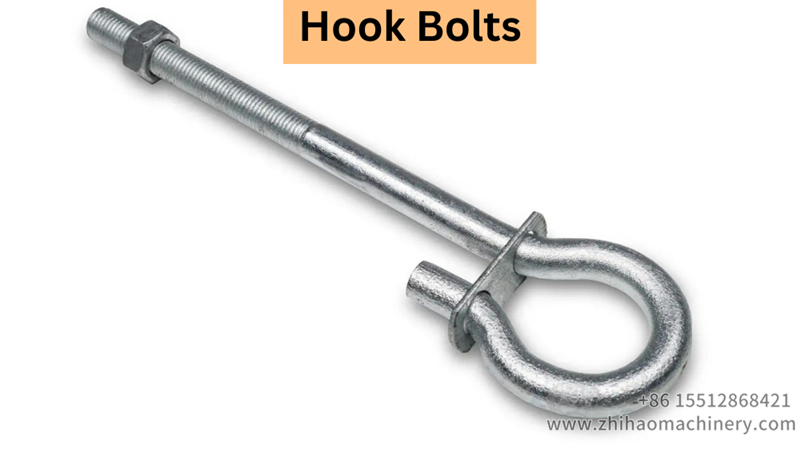

China thread rolling machine for hook bolt

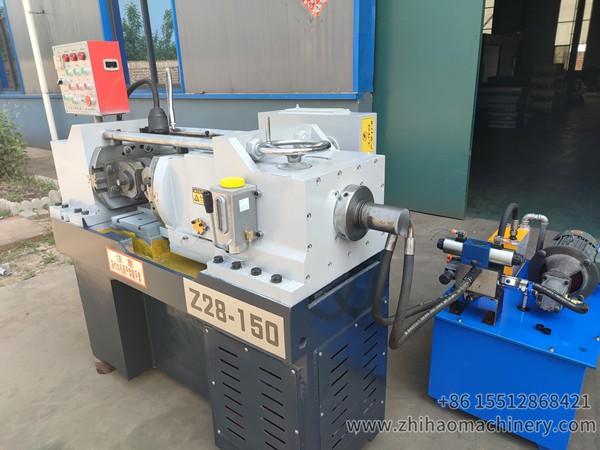

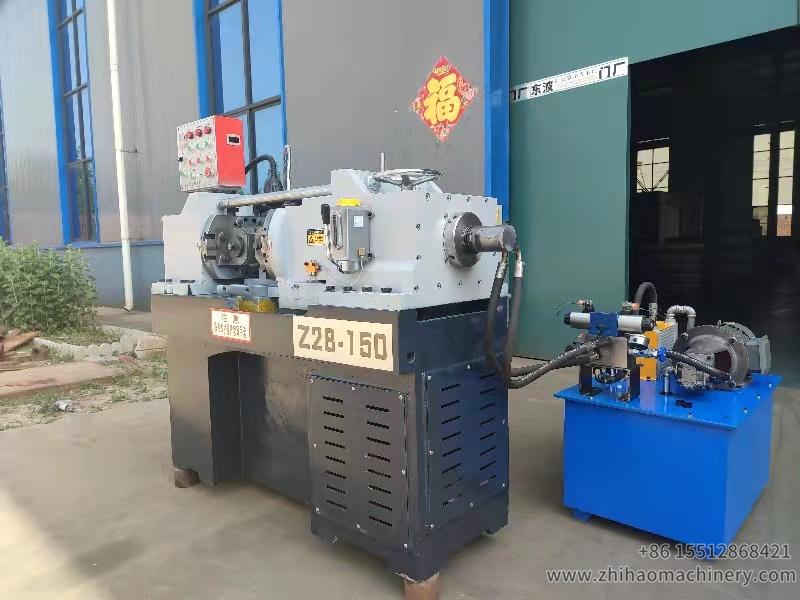

Model: Z28-150 China thread rolling machine for hook bolt
Max rolling diameter: 56mm
Max rolling thread pitch: 5mm
Max rolling pressure: 180kn
Dimension: 1560*1450*1450mm
Hydraulic power: 2.2kw
Spindle drive power: 5.5kw
Weight: 1850kg


China thread rolling machine for hook bolt



1.Two spindle of the machine rotates synchronously in the same direction .Right spindle feed motion in the horizontal direction under the rolling drive.Two rolling wheels make the work as required and other thread shape by rolling.

2.This hook bolt thread rolling machine is mainly composed of an organism, rotating box, fixed spindle seat , a movable spindle seat, hydraulic system and electrical parts etc.

3.The fixed seat and the movable seat main function is installing the screw rolling wheel and adjusting the rolling wheel tooth.

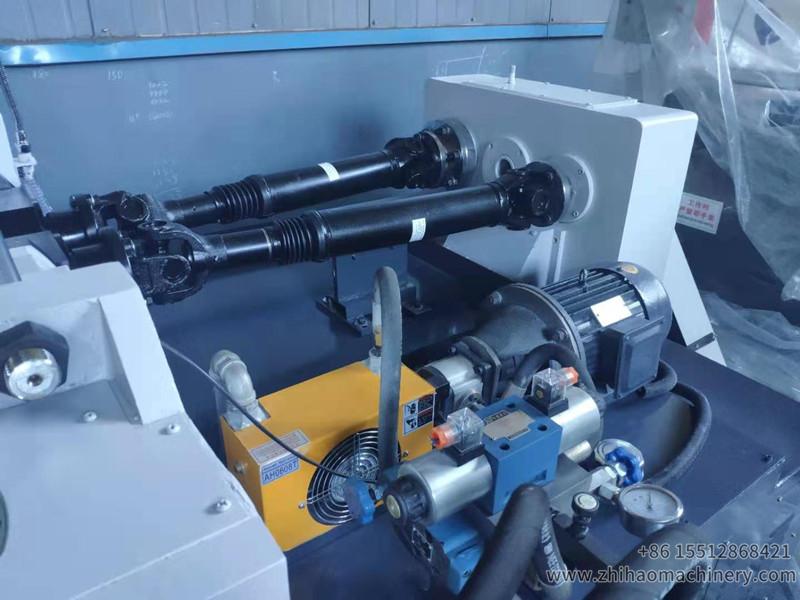

4.This threaded bold machine is a hydraulic power system, it is mainly to make the active spindle seat to feed and return .

5.The two spindle seat adjust center respectively.Angle of table axis can be adjusted in the plus or minus 3 degrees.Each shaft to feed the workpiece can be determined according to the parameters of workpiece and mechanical properties of materials

china thread rolling machine, zhihaomachinery

Technical parameter:

Model 150 China thread rolling machine for hook bolt

Rolling thread range Diameter 5-56mm

Max thread pitch 5.0mm

Spindle angle ±8°

Max rolling pressure 180kn

Spindle RPM 37/46/63/79rpm

Roller size range Outside diameter 120-170mm

Hole 54mm Max width 30-100mm

Rolling time 0.1-99.9s

Rest time 0.1-99.9s

Spindle drive power 5.5kw

Hydraulic transmission power 2.2kw

Cooling pump power 90w

Dimension 1560*1450*1450mm

Weight 1850kg

thread rolling machine for hook bolt, zhihaomachinery

screw thread rolling machine, zhihaomachinery

Trapezoidal thread rolling machine, zhihaomachinery

If have more questions for china thread rolling machine, pls contact us freely.
