Z28-150 automatic thread rolling machine manufacturer

Model: Z28-150
Max rolling diameter: 56mm
Max rolling thread pitch: 5mm
Max rolling pressure: 180kn
Dimension: 1560*1450*1450mm
Hydraulic power: 2.2kw
Spindle drive power: 5.5kw
Weight: 1850kg


Z28-150 automatic thread rolling machine manufacturer

working video: https://youtu.be/nVE42vJqS-o

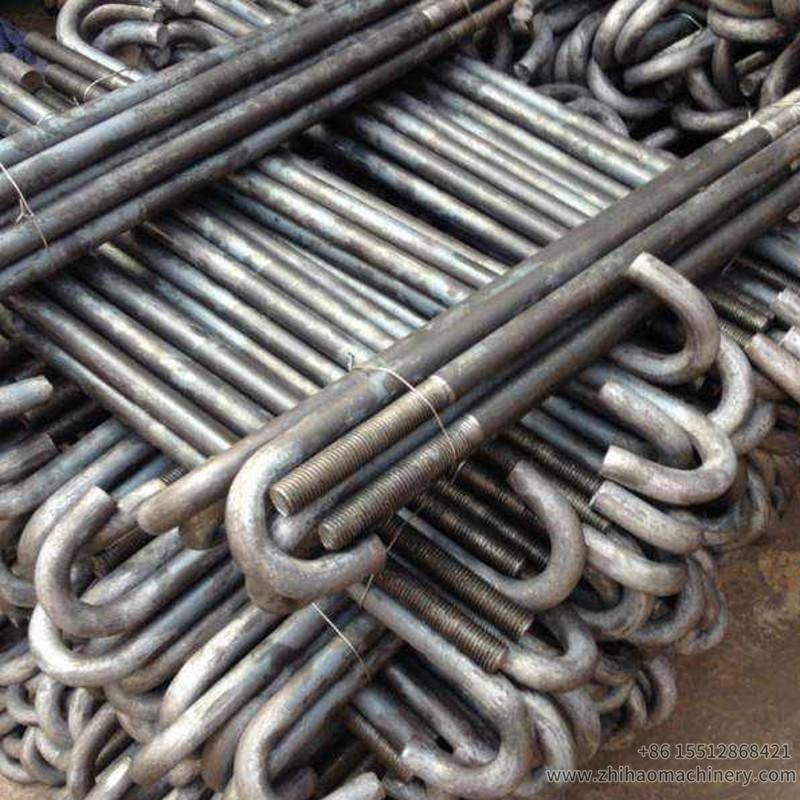

Automatic Two Thread Rolling Machine manufactured by Zhihao machinery. This machine is used for making threaded bars, bolts, studs, u-bolts, foundation bolts etc. This machine is Hydraulic operated with 2 thread rolls which are made from D2 material for long life operation, moreover they can be used again and again after resharping them. Machine is fitted with very easy to operate control pannel as well as machine can be operated from foot pedal too. Thread Rolls are made according to the requirement of client and thread size, moreover heat treated to have almost double life than normal. Coolant oil which is having auto circulation provides long life to the thread rolls of threading machine as well as help to give proper finish to the threaded rods.

bolts thread rolling machine, zhihaomachinery

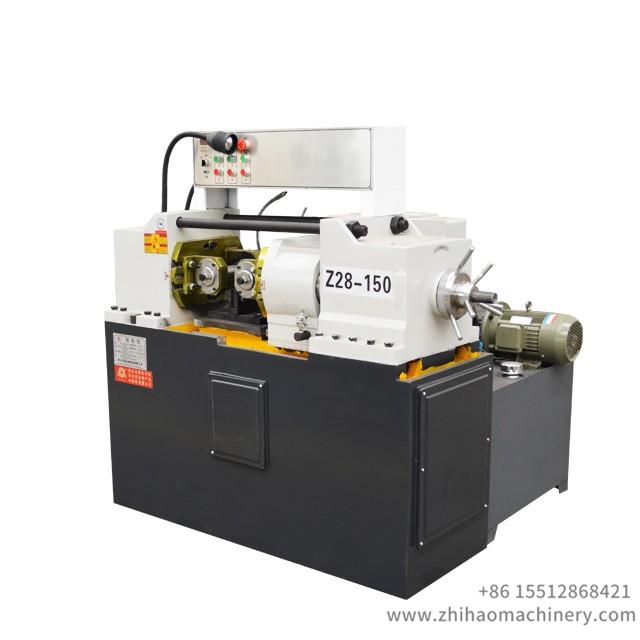

Model Z28-150 hydraulic thread rolling machine

Rolling thread range Diameter 5-56mm

Max thread pitch 5.0mm

Spindle angle ±8°

Max rolling pressure 180kn

Spindle RPM 37/46/63/79rpm

Roller size range Outside diameter 120-170mm

Hole 54mm Max width 30-100mm

Rolling time 0.1-99.9s

Rest time 0.1-99.9s

Spindle drive power 5.5kw

Hydraulic transmission power 2.2kw

Cooling pump power 90w

Dimension 1560*1450*1450mm

Weight 1850kg

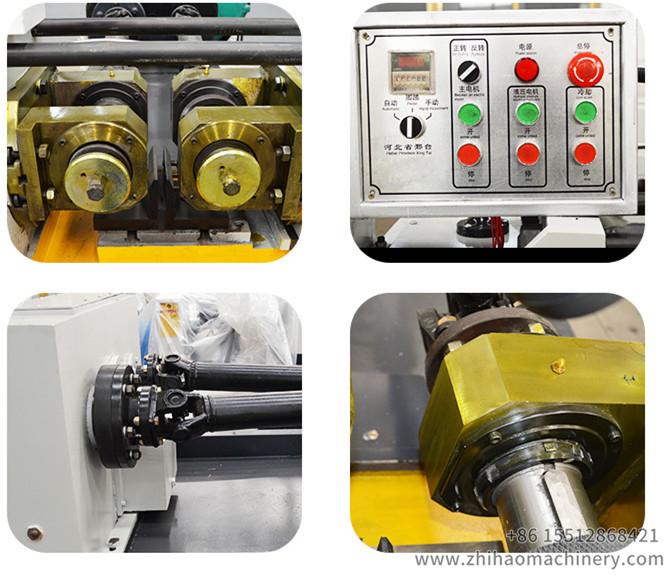

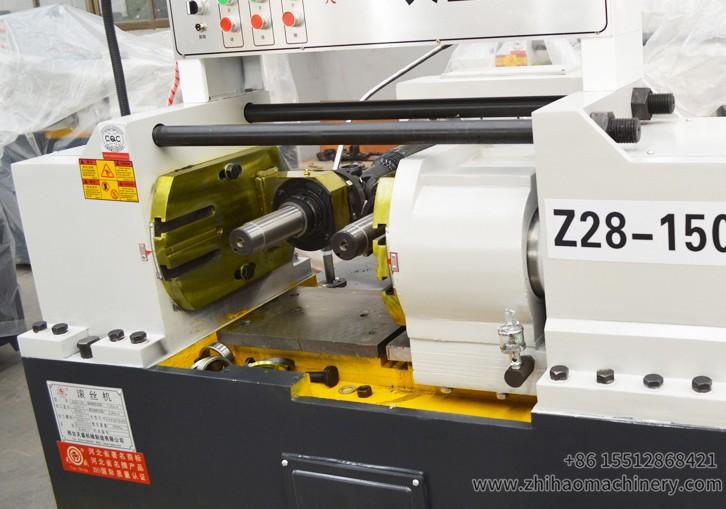

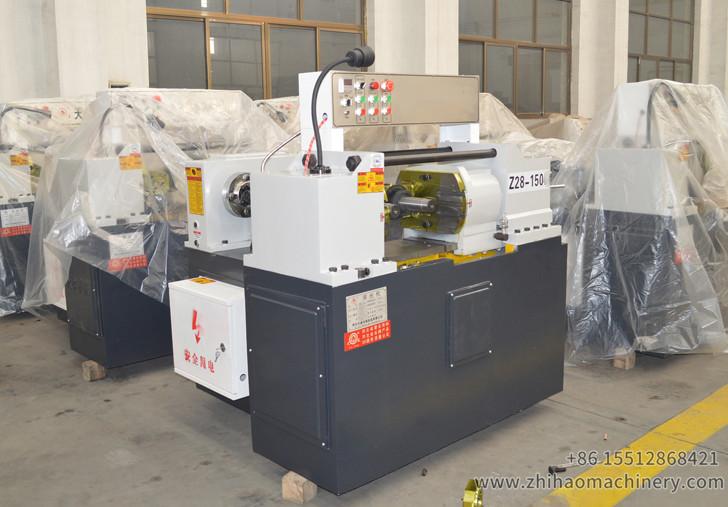

Detailed photos of automatic threading machine:

Z28-150 thread rolling machine manufacturer, zhihaomachinery

automatic thread making machine, zhihaomachinery

If have more questions for automatic hydraulic thread rolling machine, pls contact us freely.
