Welcome: Zhihao Machinery
sales@zhihaomachinery.com +86 15512868421

stainless steel threaded rods hydraulic thread rolling machine

Model: Z28-200 stainless steel threaded rods hydraulic thread rolling machine
Max rolling diameter: 64mm
Max rolling thread pitch: 6mm
Max rolling pressure: 300kn
Dimension: 1900*1700*1450mm
Hydraulic power: 5.5kw
Spindle drive power: 11kw
Weight: 2500kg


stainless steel threaded rods hydraulic thread rolling machine

The Z28-200 type stainless steel threaded rods Thread rolling machine is often used to process the external thread parts of solid workpieces such as bolts, studs, scaffolding, etc.

It has the advantages of easy operation, energy saving and environmental protection, and high work efficiency.

China zhihaomachinery - Z28-200 stainless steel threaded rods thread rolling machine

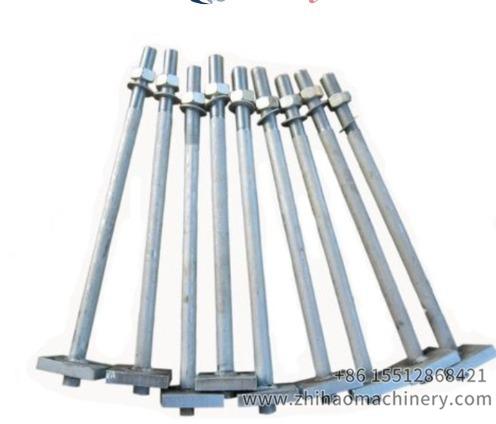

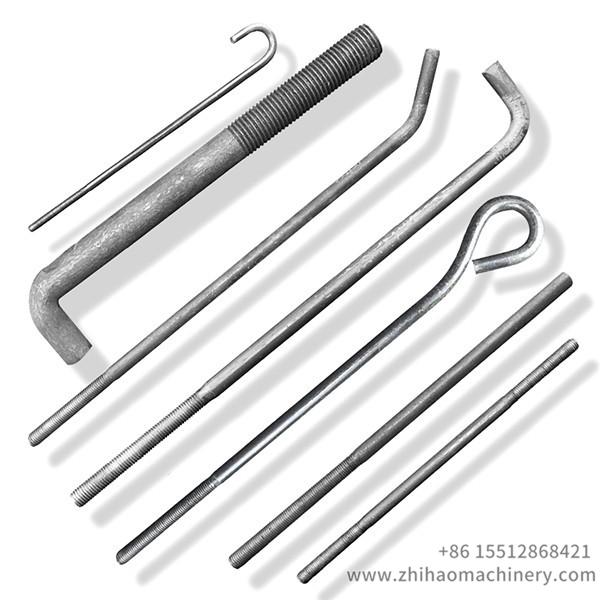

The below photos are parts of samples. And we can customized any type thread, thrufeed thread rolling dies and infeed thread rolling dies.

For example:

1 1/2 ----- 8 UN

2 ---- 4.5 UNC

3/4 --- 10UNC

1 1-2 -----6 UNC

3/4 ---- 16 UNF





3/4 -- 10 UNC

1---8 UNC

1 1/4 --7 UNC

1 1/2 --6 UNC

threaded rods thread rolling machine, zhihaomachinery    Model Z28-200 stainless steel threaded rods thread rolling machine technical parameter:

Rolling thread range Diameter 64mm

Max thread pitch 6mm

Spindle angle ±10°

Max rolling pressure 300kn

Spindle RPM 22/28/35/45/56/70rpm

Roller size range Outside diameter 210mm

Hole 75mm

Max width 150mm

Rolling time 0.1-99.9s

Rest time 0.1-99.9s

Spindle drive power 11kw

Hydraulic transmission power 5.5kw

Cooling pump power 90w

Dimension 1900*1700*1450mm

Weight 2500kg


1.Q:Where are we located in?

A:We are in Xingwan Industrial Zone Xingtai city Hebei province,China.

2.Q:How is your factory?

A: We are factory specializing in the manufacture and export of machines for more than 15 years, all of the production we sale are at a very best price and high quality.

3.Q: What is your terms of packing?

A: Generally, we pack our goods in plywood cases.

4.Q:What is your terms of payment?

A: T/T 30% as deposit, and 70% balance against BL copy.

5.Q: Warrantee and After-sale service ?

A: 12 months warrantly, man-made destory will be exception.

B: After the warrantee time, we can supply materials or teach support to you for reducing the cost of you.

6.Q:Delivery time ?

A: 10-15 days for OEM, 5-7days for ready goods.

7.Q. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

8. Q. How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Package and Delivery:

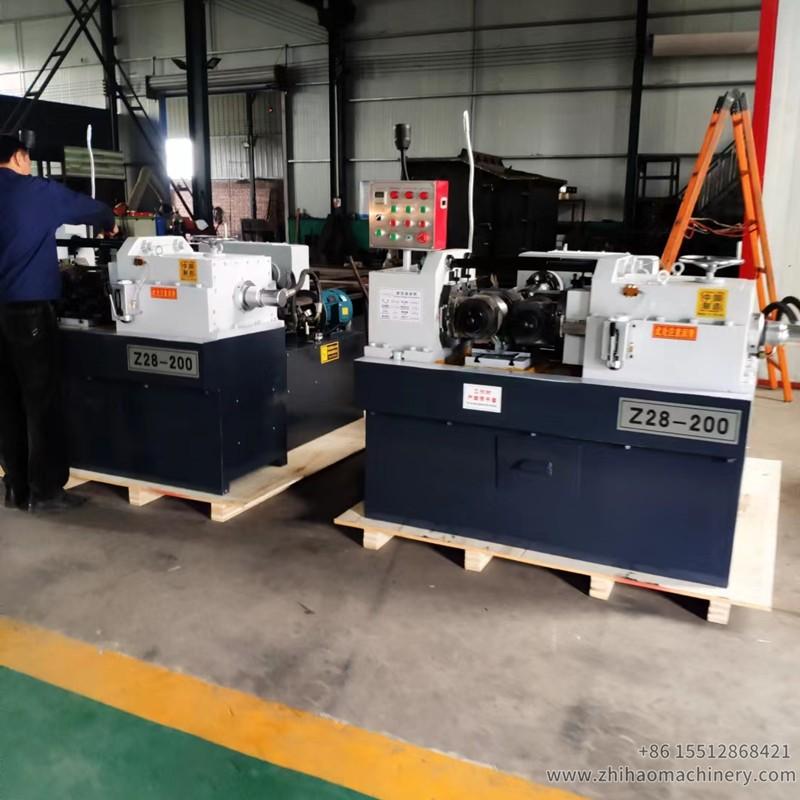

hydraulic thread rolling machine, zhihaomachinery

flat die bolt thread rolling machine for ACME, zhihaomachinery

If have more questions for stainless steel threaded rods thread rolling machine, pls contact zhihaomachinery freely.

1) pls send the diameter of rebars

2) pls send the thread pitch

3) pls send the drawing of workpiece, if u have
