Z28-200 stud bolt thread rolling machine in Russia

Z28-200 stud bolt thread rolling machine in Russia

working video: https://youtu.be/nVE42vJqS-o

1. Stud bolt Thread rolling machine with automatic feeder can save labor and cost .

2. Stud bolt Thread rolling machine with automatic feeder have high productivity .

3. Operation of stud bolt thread rolling machine with automatic feeder are more safe .

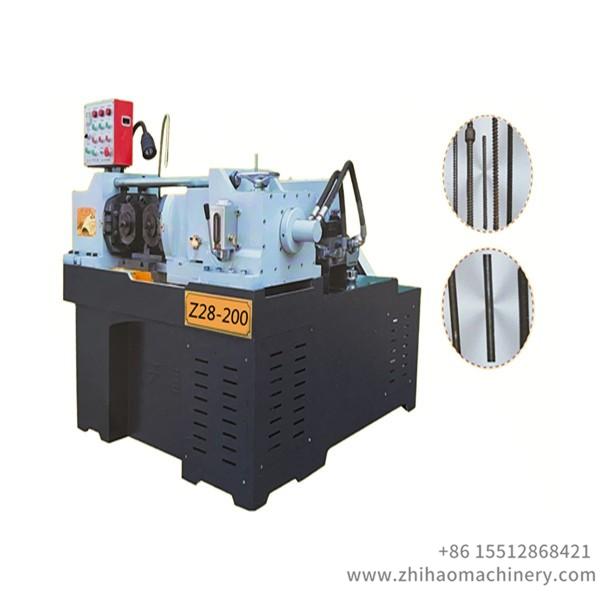

Model Z28-200 stud bolt thread rolling machine in Russia

Rolling thread range Diameter 64mm

Max thread pitch 6mm

Spindle angle ±10°

Max rolling pressure 300kn

Spindle RPM 22/28/35/45/56/70rpm

Roller size range Outside diameter 210mm

Hole 75mm

Max width 150mm

Rolling time 0.1-99.9s

Rest time 0.1-99.9s

Spindle drive power 11kw

Hydraulic transmission power 5.5kw

Cooling pump power 90w

Dimension 1900*1700*1450mm

Weight 2500kg
