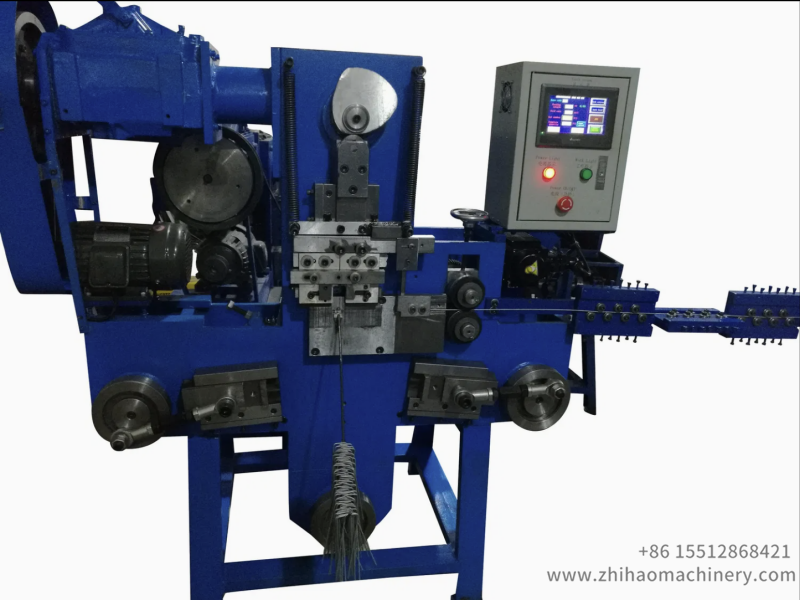

Split pin making machine Automatic cotter pin making machine

Machine Main Features:

1) Well designed and structured, computer control, easy to operate and maintain;

2) Wire feeding by stepper moter, high precision;

3) Can set product quantity, when machines production reach this set quantity, the machinewill stop automatically.

4) Driven by hydraulic, strong and durable.

5) Main part: Big gear is made of cast iron QT600-3, and heat treated. The hardness isHB280-320.The slider is made of alloy wear resistant cast iron, and heat treated, its abrasion resistanceis good. The gear is made of 40Cr, and heat treated. The hardness is HRC52-55.The shaft is made of 45# or 40Cr steel and heat treated. The wire feeding wheel, straighteningwheel are made of high quality alloy steel and vacuum heat treated. The hardness can reach HRC58-62 with high strength. The wear resistance is good. Long service life.

Automatic cotter pin making machine demo:

Application:

1) Machines can be made for Material Iron, Steel, Stainless Steel, and other metal wires.

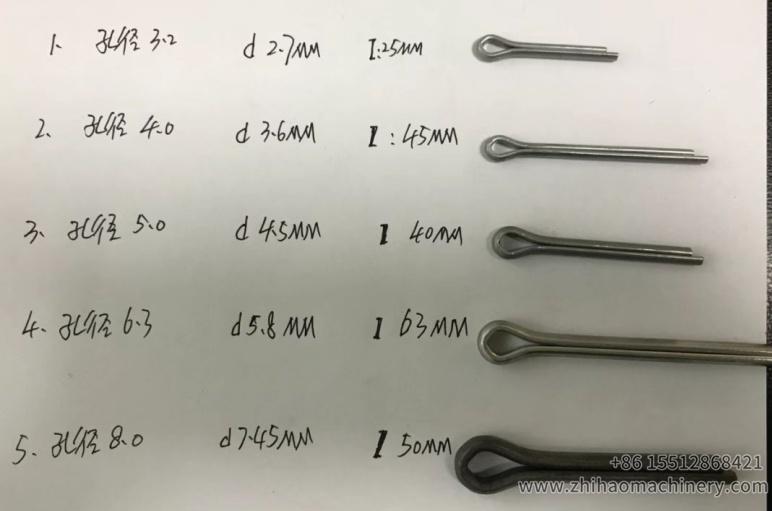

2) Machines can be made for making multiple shape of products, one shape of product needsone mold.

Technical parameter:

Suitable wire thickness 1.2-4.8mm

Total feeding length 0-260mm

Production speed 40/60/75/110pcs/min

based on size

Motor power 1.1KW

Machine dimension 1600x600x1430mm

Machine weight 580Kg

Power supply 380V, 3Phase, 50Hz or as require

Packaging Shipping:

Standard Export Polywood Package Case
