Thread Rolling Machine Manufacturer Price

Model Z28-200 Thread Rolling Machine:

Rolling thread range Diameter 64mm

Max thread pitch 6mm

Spindle angle ±10°

Max rolling pressure 300kn

Spindle RPM 22/28/35/45/56/70rpm

Roller size range Outside diameter 210mm

Hole 75mm

Max width 150mm

Spindle drive power 11kw

Hydraulic transmission power 5.5kw

Cooling pump power 90w

Dimension 1900*1700*1450mm

Weight 2500kg

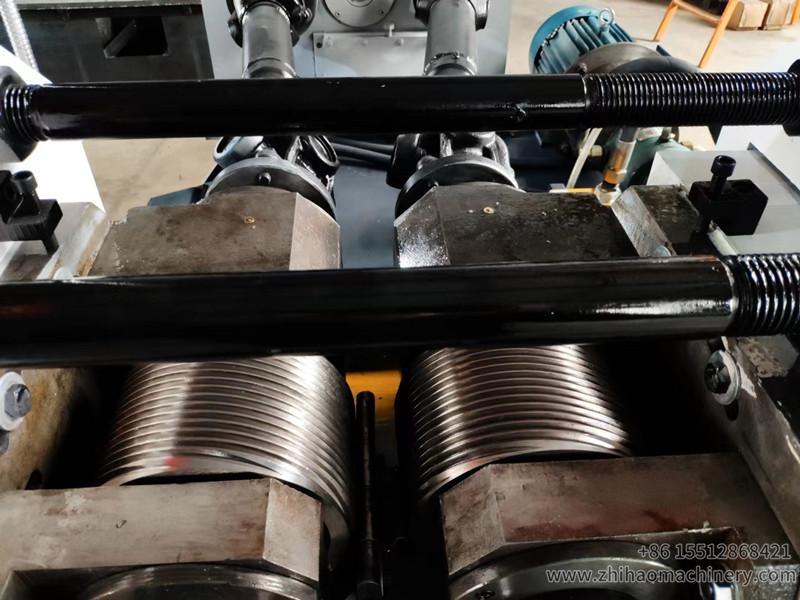

Working video:

Description:

main purpose Rolling Hercules, five-speed gearbox, a wider range of applications

The model hydraulic thread rolling machineis Large processing capacity, the transmission part of the gear module and output power are greater than the general gear box, thus solving the same type can not be processed trapezoidal thread. Modular thread and the problem of the opposite sex thread, free from chaos buckle.
