Ball Screws Thread Rolling Machine

Features:

1. Cam type machine with stable speed

2. Automatic feeder can be designed according to exact product

3. Driving by worm wheel and worm rod

4. It is easy to operate and maintain the machine

5. CE

The Z28-200 is hydraulic ball screws thread rolling machine, it is supported by strongly structure, manufacture sophisticated, Maintenance easily, mold change quickly. Machining process, also can processed bolts, special bolts, screw rod by change the thread roller.

Technical parameter:

Z28-200 including 1 set roller

Rolling thread range Diameter 64mm

Max thread pitch 6mm

Spindle angle ±10° Max rolling

pressure 300kn

Spindle RPM 22/28/35/45/56/70rpm

Roller size range Outside diameter

210mm Hole 75mmMax width 150mm

Rolling time 0.1-99.9s

Rest time 0.1-99.9s

Spindle drive power 11kw

Hydraulic transmission power 5.5kw

Cooling pump power 90w

Dimension 1900*1700*1450mm

Weight 2500kg

Ball screws thread rolling machine demo video:

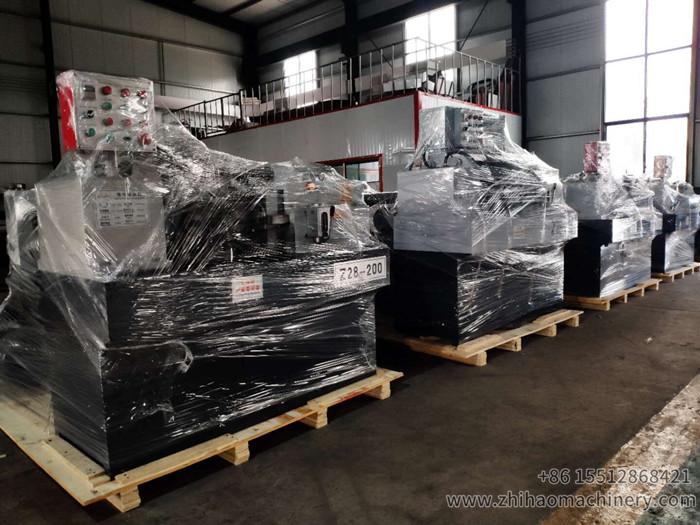

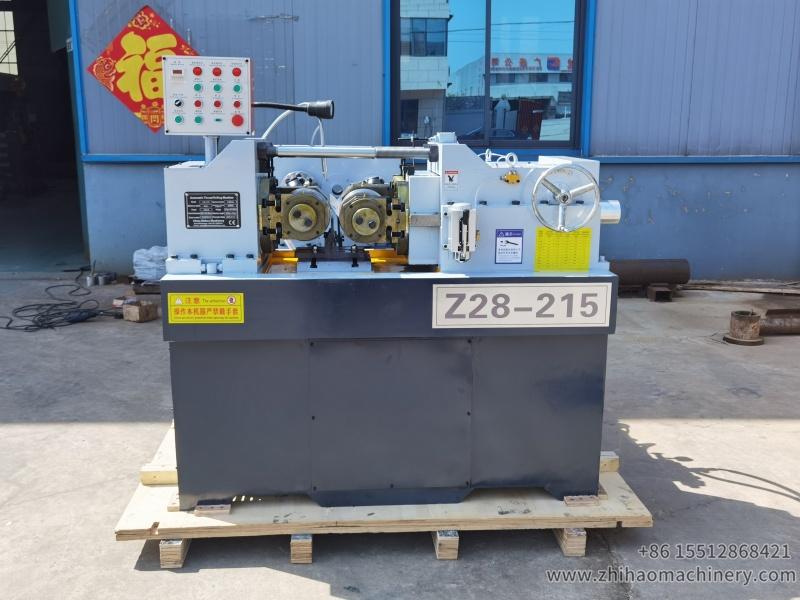

Thread rolling machine photos:

FAQ:

Question 1: Can you customize the thread rolling machine for us?

Yes, we are factory, we can customize the machine depend your request.

Question 2: Can your technician come to our country to install and adjust the machine?

Yes, our technician can go to your country to help you install and adjust machine.

Question 3: How long is the warranty?

Warranty 12 months. In period of warranty, we change the new parts for broken parts for free. We provide technical support for long-life.

Question 4: If the machine has a problem, how long will it get a reply?

We will provide solutions within 24 hours.

If have any interesting for this two axis type thread rolling machine, pls contact freely.
