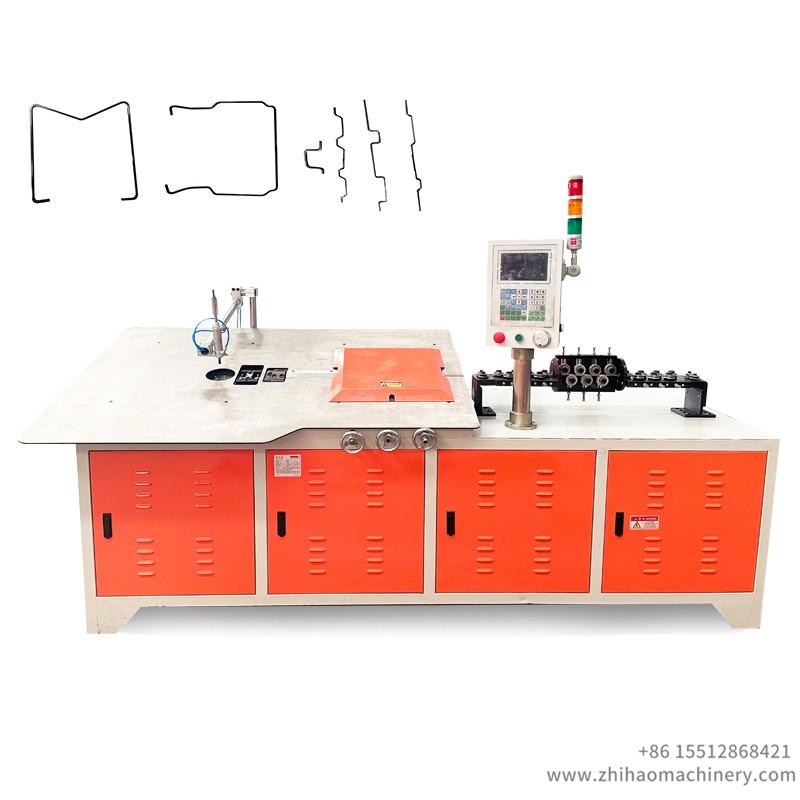

cnc wire bending machine with CE

Model: 2.0-6.0mm cnc wire bending machine with CE
Axis: 3
Feeding servo motor: 2.3kw
Hydraulic motor: 2.2kw
Machine weight: 1400kg

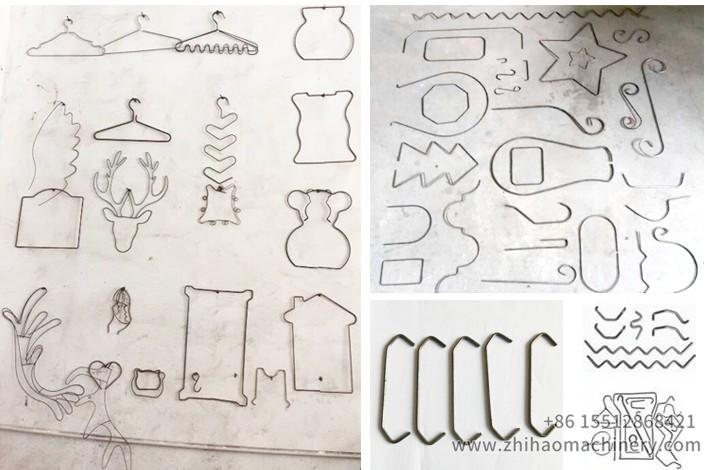

Description: cnc 2D Wire Bending Machine 2-6mm Automatic CNC 2D wire Bending Machine :Suitable for iron wire, steel wire, stainless steel wire and non-ferrous metal wire (round, square, flat), punching (bending) square, round, hexagonal, ellipse and various irregular shape of plane wire shape.


cnc wire bending machine with CE

Technical parameter:

Model 2.0-6.0mm automatic 2D Wire Bending Machine

Axle number 3

steel Wire Diameter 2-6mm

Number of feeder wheels (group): 3

Wire Range: Round line, flat line, square line (suitable for any wire material)

Storage: 10,000 data, 300 actions in a group

Maximum feeding speed (m/min): 100

Servo motor power of feeding shaft (kW) : 2.3

Cutter Shaft Servo Motor Power (kW): 1.5

Power of bending Axis Servomotor (kW)): 2.3

Irection of action: Internal and external die can be lifted and bended in both directions.

Feeding accuracy (mm): ±0.1

Maximum bending speed: 800 rpm, angle (+180)

Capacity 25-30pcs/min, (200*200mm square)

Operating system :32-bit Chinese and English (with upload and download functions)

Woltage 380V,50HZ/60HZ

Weight (KG) 1400KG

Machine size (length * width * height mm) 2500*1000*1680mm

More details of cnc 2D wire bending machine, pls contact zhihaomachinery freely!
