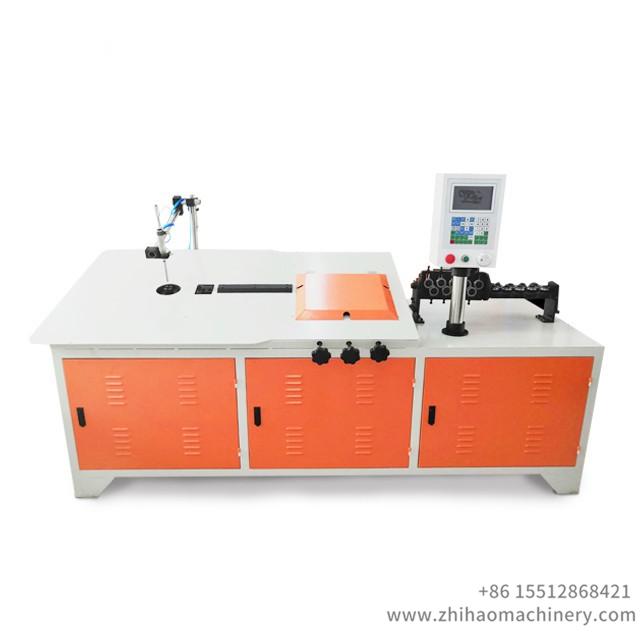

2D wire bending machine

Model: 2.0-6.0mm
Axis: 3
Feeding servo motor: 2.3kw
Hydraulic motor: 2.2kw
Machine weight: 1400kg
Description: Adopt CNC industrial computer system with 2 years guarantee period. It is combined with 3-4 servo motors, which can make and store 2000sets programs , supporting data and parameters outlet by USB,. Stable sire feeding, and convenient programming by inputting parameters. Has the advantage of less noise and endurable quality ,comparing with traditional hydraulic bending machine.


2D wire bending machine


2D Wire Bending Machine 2-6mm Automatic CNC 2D Bending Machine: Suitable for iron wire, steel wire, stainless steel wire and non-ferrous metal wire (round, square, flat), punching (bending) square, round, hexagonal, ellipse and various irregular shape of plane wire shape.

Technical parameter

Model 2.0-6.0mm 2D Wire Bending Machine

Axle number 3

steel Wire Diameter 2-6mm

Number of feeder wheels (group): 3

Wire Range: Round line, flat line, square line (suitable for any wire material)

Storage: 10,000 data, 300 actions in a group

Maximum feeding speed (m/min): 100

Servo motor power of feeding shaft (kW) : 2.3

Cutter Shaft Servo Motor Power (kW): 1.5

Power of bending Axis Servomotor (kW)): 2.3

Irection of action: Internal and external die can be lifted and bended in both directions.

Feeding accuracy (mm): ±0.1

Maximum bending speed: 800 rpm, angle (+180)

Capacity 25-30pcs/min, (200*200mm square)

Operating system :32-bit Chinese and English (with upload and download functions)

Woltage 380V,50HZ/60HZ

Weight (KG) 1400KG

Machine size (length * width * height mm) 2500*1000*1680mm

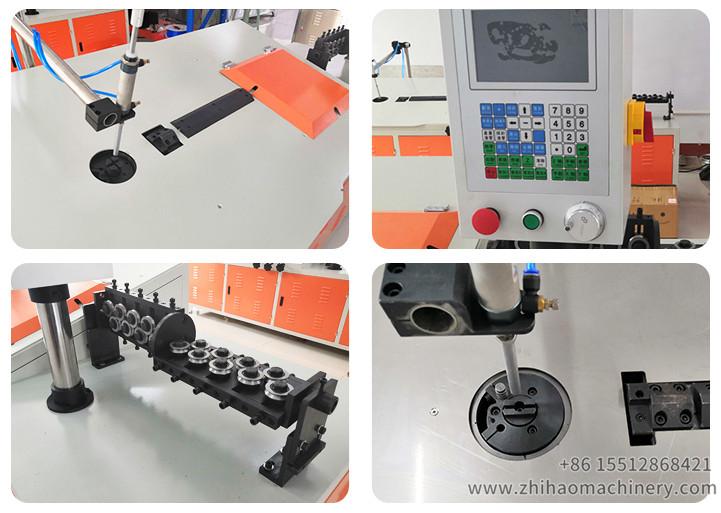

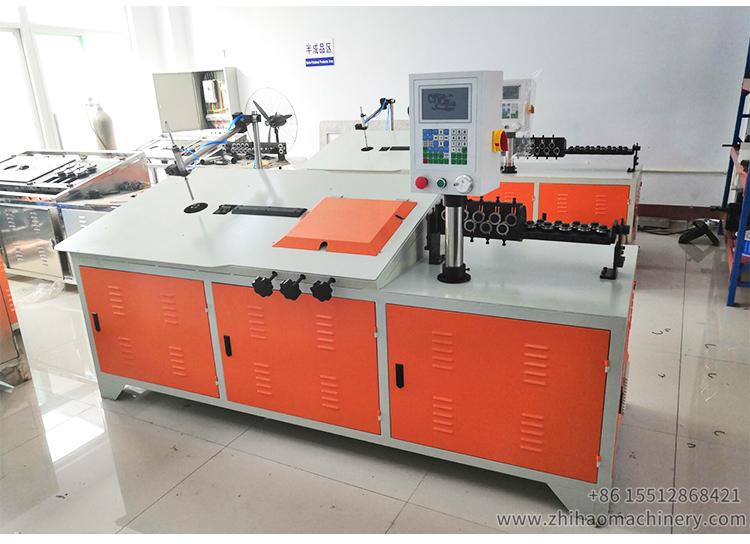

Detailed photos of cnc 2d wire bending machine

wire bending machine price, zhihaomachinery

2mm-6mm wire bending machine, zhihaomachinery

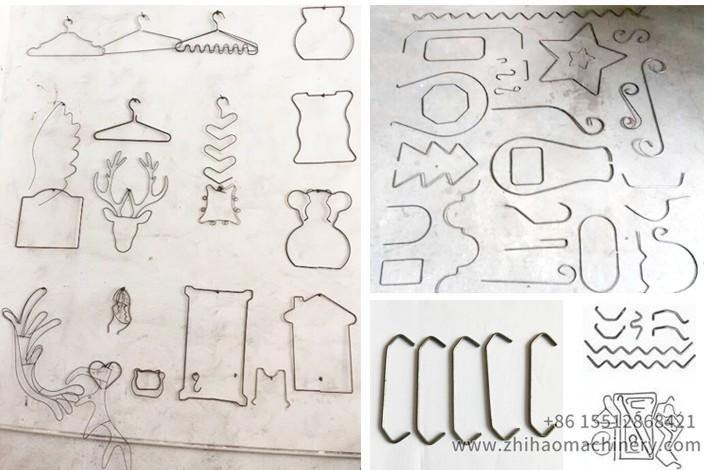

Finished workpieces of CNC 2d wire bending machine

2d cnc wire bending machine, zhihaomachinery

More details of 2D cnc wire bending machine 2mm-6mm pls contact us freely!
