cnc 2d wire bending machine

Model: 2.0-6.0mm
Axis: 3
Feeding servo motor: 2.3kw
Hydraulic motor: 2.2kw
Machine weight: 1400kg
Description: cnc 2D Wire Bending Machine 2-6mm Automatic CNC 2D wire Bending Machine :Suitable for iron wire, steel wire, stainless steel wire and non-ferrous metal wire (round, square, flat), punching (bending) square, round, hexagonal, ellipse and various irregular shape of plane wire shape.


cnc 2d wire bending machine

working video:https://youtu.be/a7VSdS9pp5s

Advantages Feature:

3-4 pars feeding roller, 3 groups wire-straightening wheels feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotating is more fast and light, turning angle is more precise and stable. Twisting head is designed in copper tube transport, more stable and stronger than bearing transfer.

CNC 2d wire bending machine Application field:

1)Auto Industry area

2)Metal wire industry

3)Display table and cargo shelf

4)Furniture and Kitchen

5)Hardware industry

6)Mattress, Sofa spring area

7)Architecture area

8)Hardware Artcraft

Technical parameter

Model 2.0-6.0mm automatic 2D Wire Bending Machine

Axle number 3

steel Wire Diameter 2-6mm

Number of feeder wheels (group): 3

Wire Range: Round line, flat line, square line (suitable for any wire material)

Storage: 10,000 data, 300 actions in a group

Maximum feeding speed (m/min): 100

Servo motor power of feeding shaft (kW) : 2.3

Cutter Shaft Servo Motor Power (kW): 1.5

Power of bending Axis Servomotor (kW)): 2.3

Irection of action: Internal and external die can be lifted and bended in both directions.

Feeding accuracy (mm): ±0.1

Maximum bending speed: 800 rpm, angle (+180)

Capacity 25-30pcs/min, (200*200mm square)

Operating system :32-bit Chinese and English (with upload and download functions)

Woltage 380V,50HZ/60HZ

Weight (KG) 1400KG

Machine size (length * width * height mm) 2500*1000*1680mm

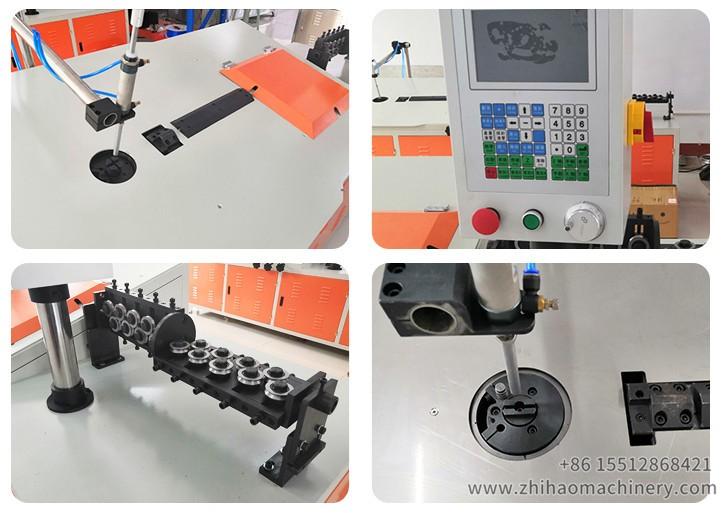

Detailed photos of wire rod forming machine:

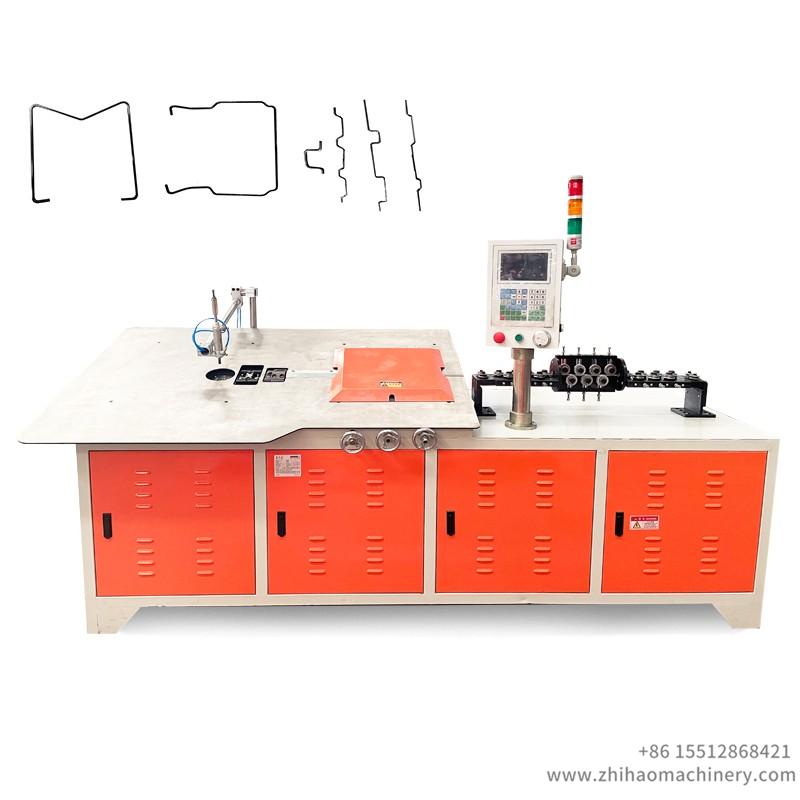

cnc 2d wire bending machine, zhihaomachinery

automatic 2d wire bending machine, zhihaomachinery

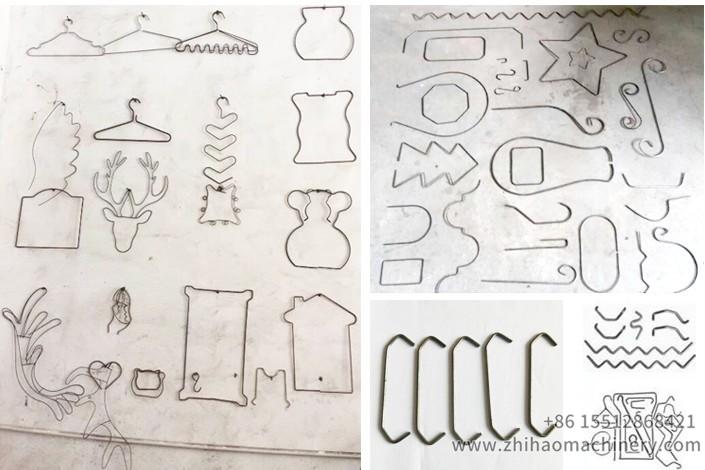

Finished workpieces of CNC 2d wire bending machine

cnc wire bending machine, zhihaomachinery

More details of cnc 2D wire bending machine 2mm-6mm pls contact zhihaomachinery freely!
