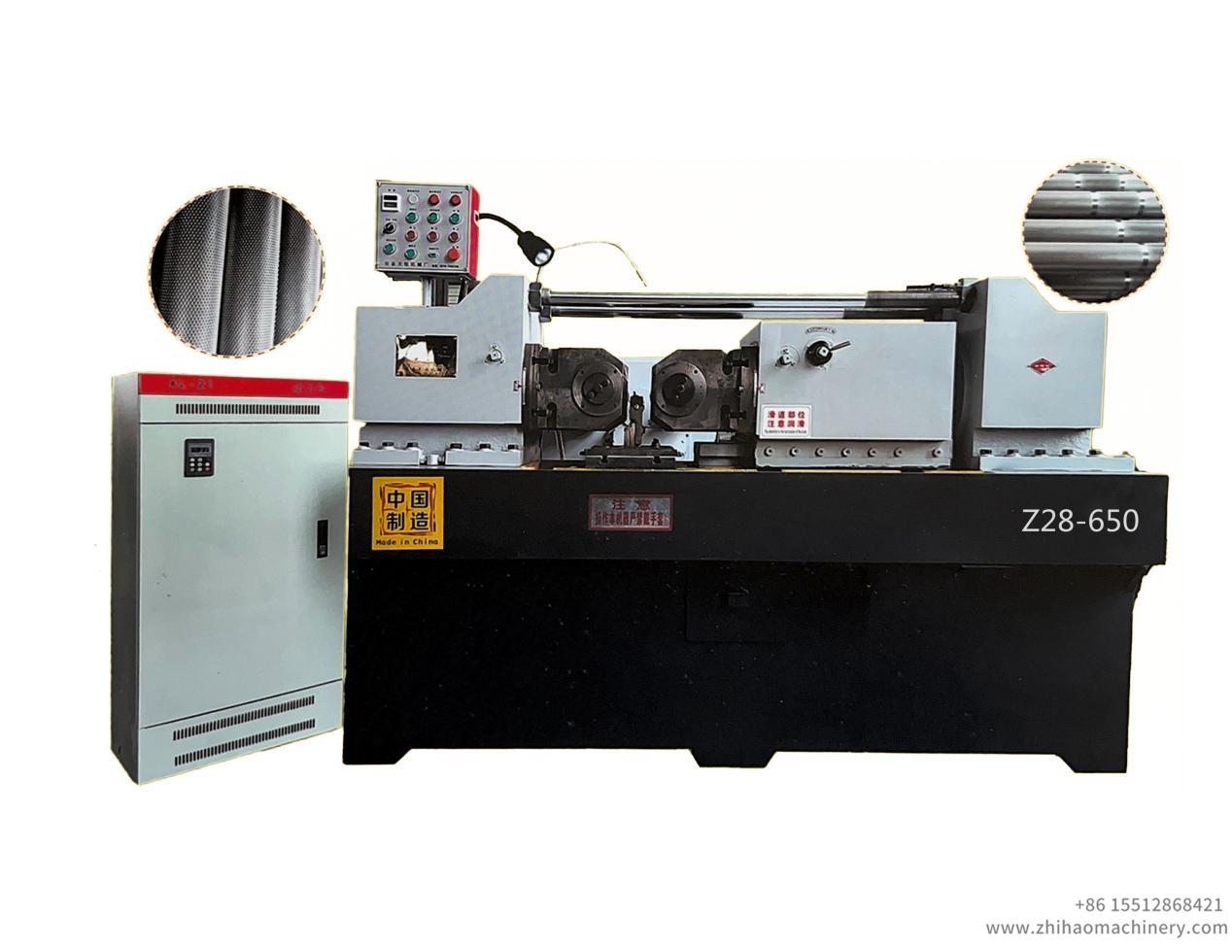

Rebar thread rolling machine factory

Model: Z28-650
Max rolling diameter: 120mm
Max rolling thread pitch: 12mm
Max rolling pressure: 650kn
Description: This product is a hydraulic thread rolling machine, which is well received by users for its sturdy structure, sophisticated manufacture and strong power. Z28-650 thread rolling machine is mainly used for rolling various high-strength materials (45#, 40cr, 42crmo, stainless steel, etc.) Standard parts, large-thread and large-diameter workpieces, including ordinary threads, trapezoidal threads, modular threads and such heterosexual parts.


Rebar thread rolling machine factory

Model Z28-650

Rolling thread range Diameter 120mm

Max thread pitch 12mm

Spindle angle ±10°

Max rolling pressure 650kn

Spindle RPM CTV

Roller size range Outside diameter 310mm

Hole 75/100mm

Max width 260mm

Rolling time 0.1-99.9s

Rest time 0.1-99.9s

Spindle drive power 18.5kw

Hydraulic transmission power 11kw

Dimension 2300*2400*1700mm

Weight 6000KG

rebar thread rolling machine, zhihaomachinery

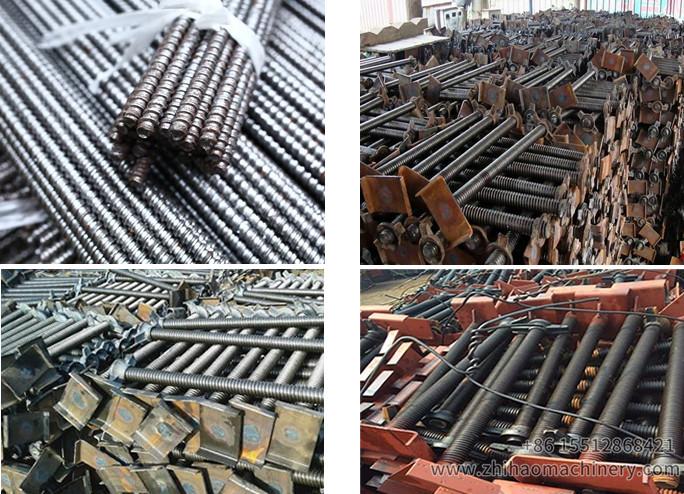

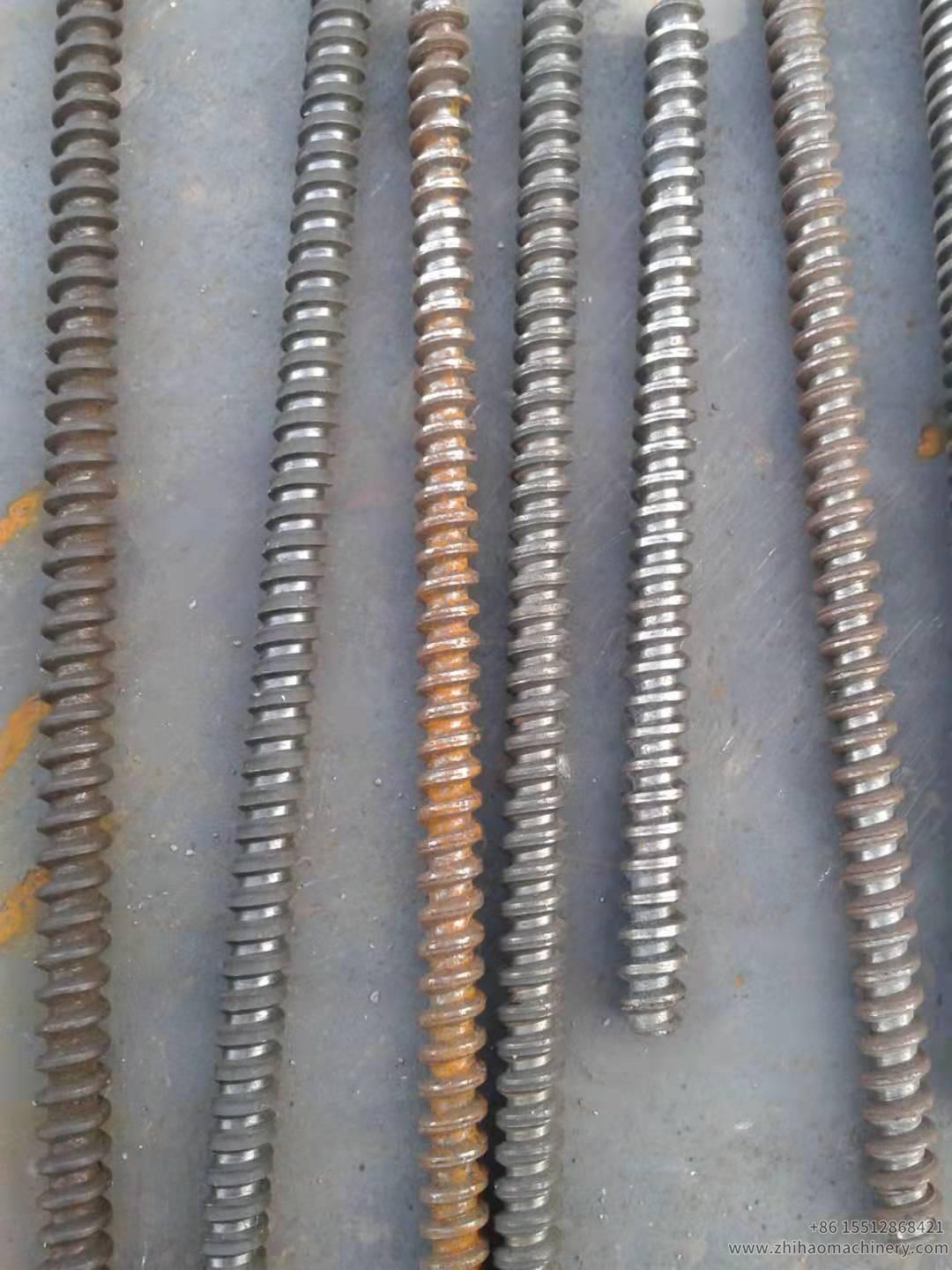

what is the finished workpieces of rebar thread rolling machine?

thread rolling machine factory, zhihaomachinery

Any more questions of Z28-650 rebar thread rolling machine, pls contact us freely.
