To Best Thread Rolling Machine

Model: Z28-360 To Best Thread Rolling Machine
metal steel thread rolling machine,foundation bolt screw thread rolling machine
Max rolling diameter: 100mm
Max rolling thread pitch: 10mm
Max rolling pressure: 450kn
Brand: ZHIHAO
Description: Z28-360 metal steel hread rolling machines are used to produce screws, bolts, and studs. Thread rolling is a cold-form forming operation used to form external screw threads in a blank. During the thread rolling process, a hard die is pressed onto a rotating workpiece (also called a blank) that is attached to the tie rod thread rolling machine.

EMAIL

To Best Thread Rolling Machine


What does a to best thread rolling machine do?

Thread rolling is a metal forging process that forms threads into the mirror image of a roller die. The process is different from metal cutting, grinding, and chasing because it does not remove any metal from the workpiece.


Technical parameter of to best thread rolling machine:

Items Z28-360

Rolling thread range Diameter 100mm

Max thread pitch 10mm

Spindle angle ±10°

Max rolling pressure 450kn

Spindle RPM CVT

Roller size range Outside diameter 230mm

Hole 75/85mm

Max width 200mm

Rolling time 0.1-99.9s

Rest time 0.1-99.9ss

Spindle drive power 15kw

Hydraulic transmission power 11kw

Dimension 2150*1850*1550mm

Weight 3600kg


Photos for foundation to best thread rolling machine:

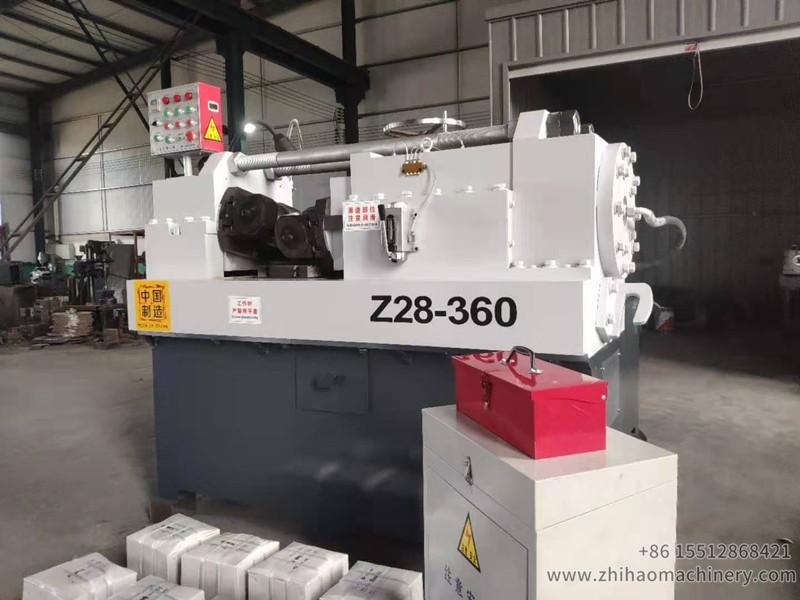

to best thread rolling machine, zhihaomachinery

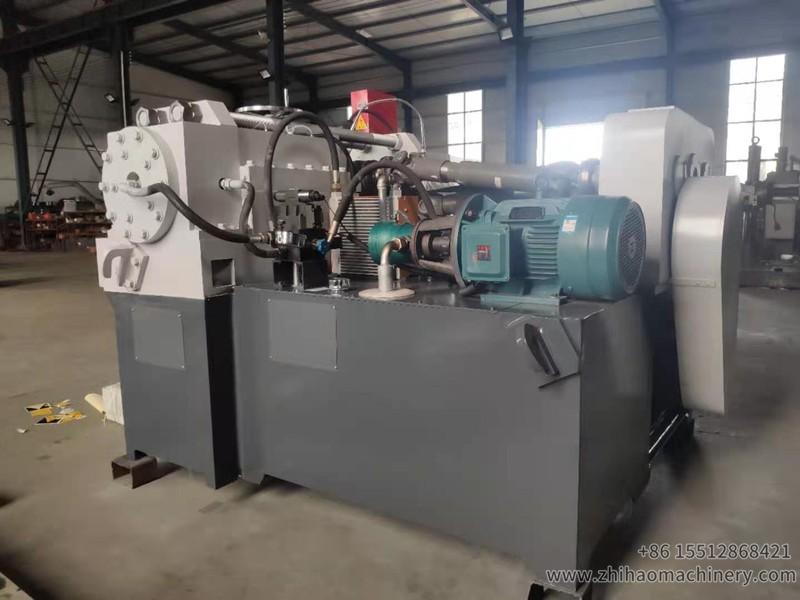

tobest thread rolling machine, zhihaomachinery

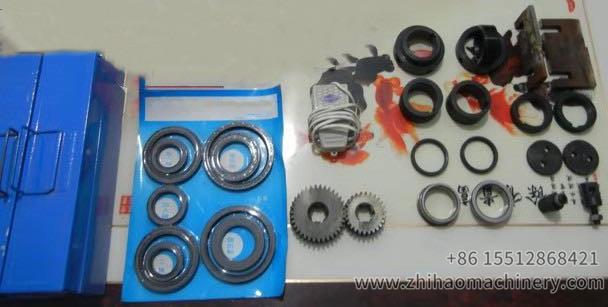

free spare parts, zhihaomachinery

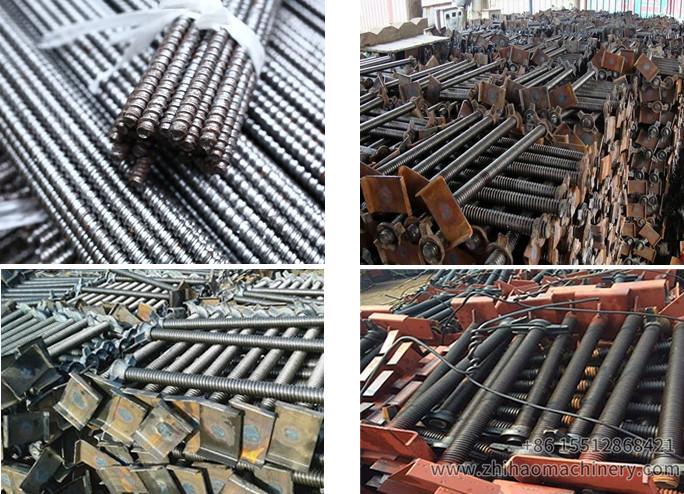

greatcity thread rolling machine, zhihaomachinery


Any more questions of to best thread rolling machine, pls contact us freely.
