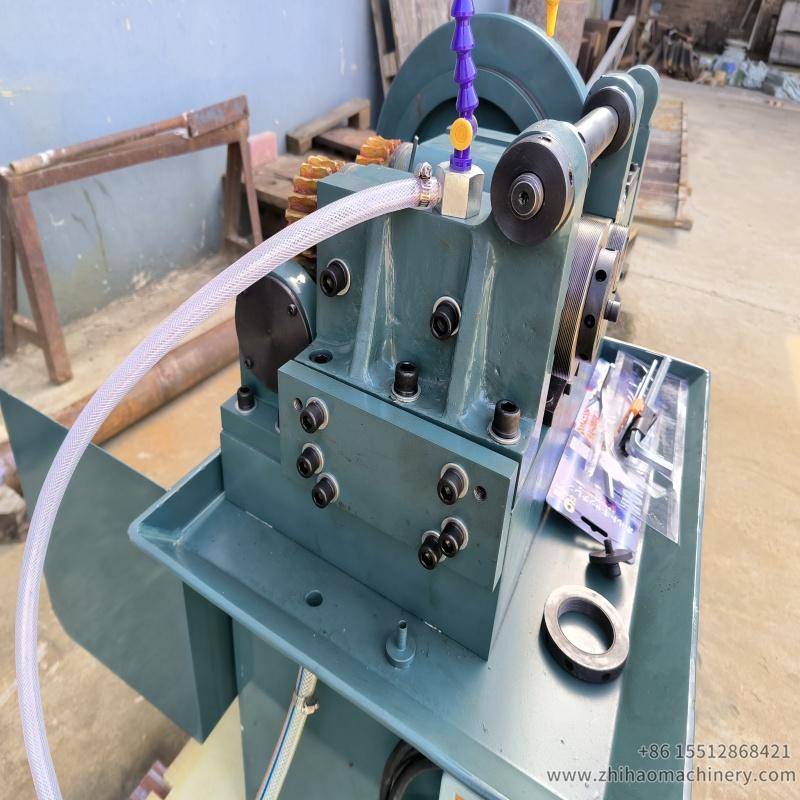

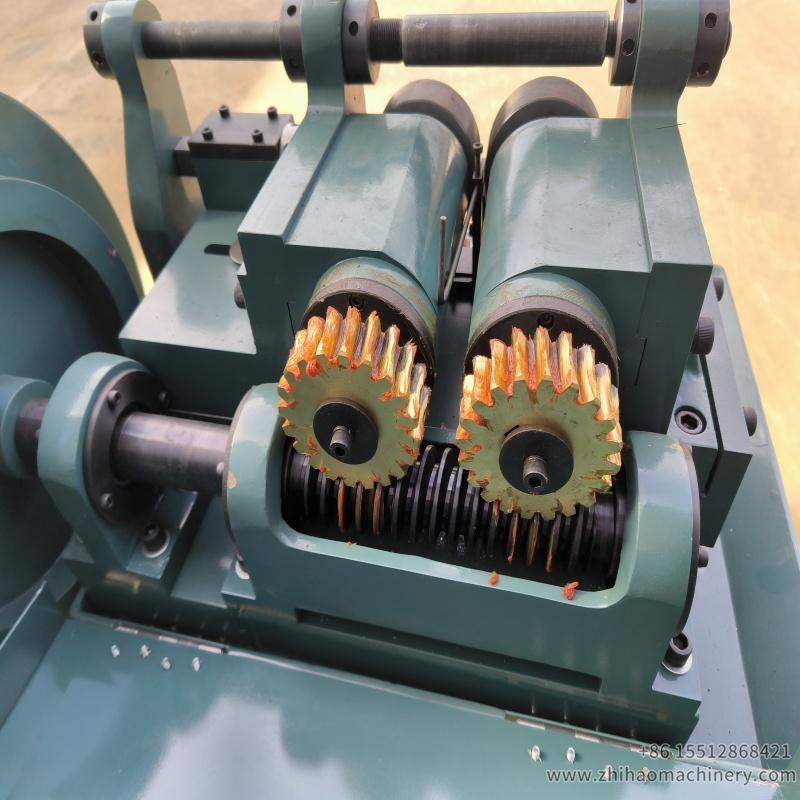

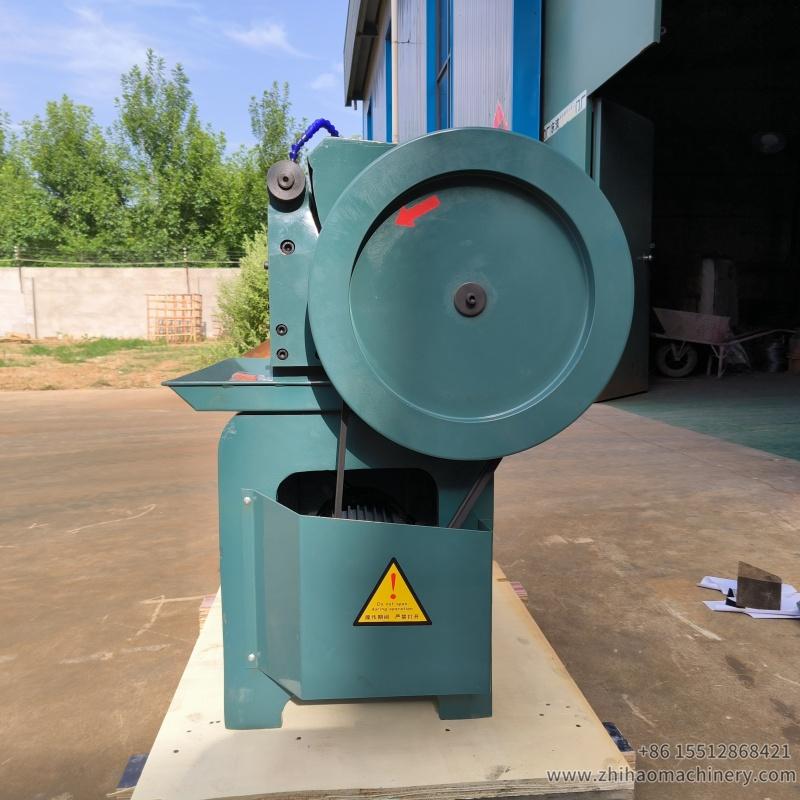

3T small type 2 axis thread rolling machine

3T small type 2 axis thread rolling machine feasures:

Mainly for shaft parts of the product structure is simple,

It is easy to extrude workpiece with eccentric feed,

The center plate should be roller easy to adjust the machine

The tank can be placed inside or outside, saving space and easy to clean

Technical Parameter:

TypeZH-3T

Max.diameter Ø2-Ø10

Pitch 0.4P~1.5P

Length regular AX3OMM

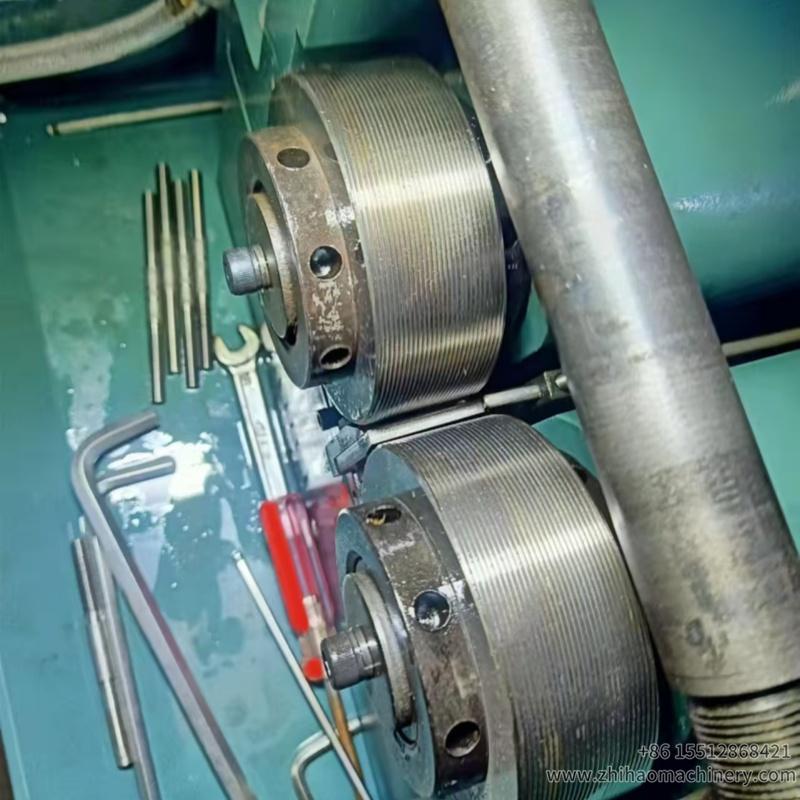

Rolling dies max.diameter 100mm

Bore Dia.meter 50.5M

Rolling dies width range 30

Rolling efficiency(pcs/min) 2.8 seconds/piece

Gross weight 200 kgs

Operating voltage 380 v

We also supply others type, big type 2 axis thread rolling machine and 3 axis thread rolling machine.

pls check below link for choose suitale models.

big type 2 axis thread rolling machine

3 axis thread rolling machine

thread rolling dies
