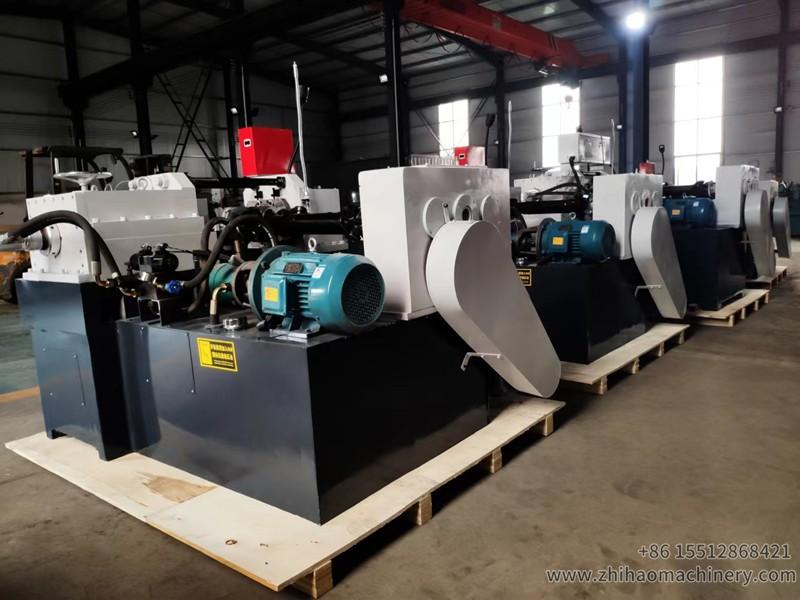

Delivery to Russia Z28-215 Tie Rod Screw Thread Rolling Machine

Model: Z28-215 Tie Rod Screw Thread Rolling Machine
Max rolling diameter: 64mm
Max rolling thread pitch: 6mm
Max rolling pressure: 300kn
Dimension: 1900*1700*1450mm
Hydraulic power: 5.5kw
Spindle drive power: 11kw
Weight: 2500kg


Delivery to Russia Z28-215 Tie Rod Screw Thread Rolling Machine

Model Z28-215 tie rod screw thread rolling machine technical parameter:

Rolling thread range Diameter 80mm

Max thread pitch 10mm

Max rolling pressure 300kn

Roller Hole 75mm

Spindle drive power 11kw/6grade

Hydraulic transmission power 5.5kw

Cooling pump power 90w

Dimension 1950*1700*1550mm

Weight 2800kg

tie rod screw, zhihaomachinery

rebar thread rolling machine, zhihaomachinery

screw thread rolling machine for sale, zhihaomachinery

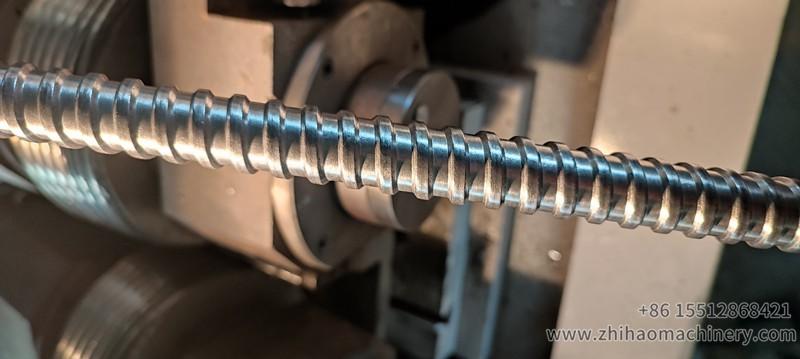

Widely used for rolling various precision external threads and high-strength standard parts, including ordinary threads, trapezoidal threads and modular threads.

ZHIHAOMACHINERY Z28-215 tie rod screw hydraulic thread rolling machine has various models, suitable for processing engineering threads such as scaffolding, auto parts threads, mechanical parts and other cold-rolled thread processing. The specifications of the thread rolling machine can be customized.

tie rod thread rolling machine, zhihaomachinery

thread rolling machine price, zhihaomachinery

If have more questions for tie rod screw thread rolling machine, pls contact zhihaomachinery freely.
