Stub acme thread wood screw thread rolling machine for Ethiopia

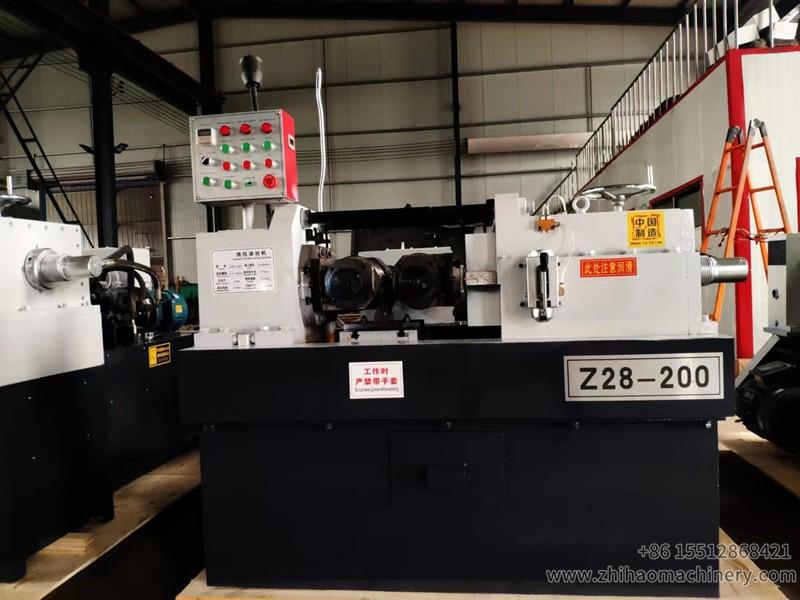

Model: Z28-200 stub acme thread wood screw thread rolling machine for Ethiopia
Max rolling diameter: 64mm
Max rolling thread pitch: 6mm
Max rolling pressure: 300kn
Dimension: 1900*1700*1450mm
Hydraulic power: 5.5kw
Spindle drive power: 11kw
Weight: 2500kg


Stub acme thread wood screw thread rolling machine for Ethiopia

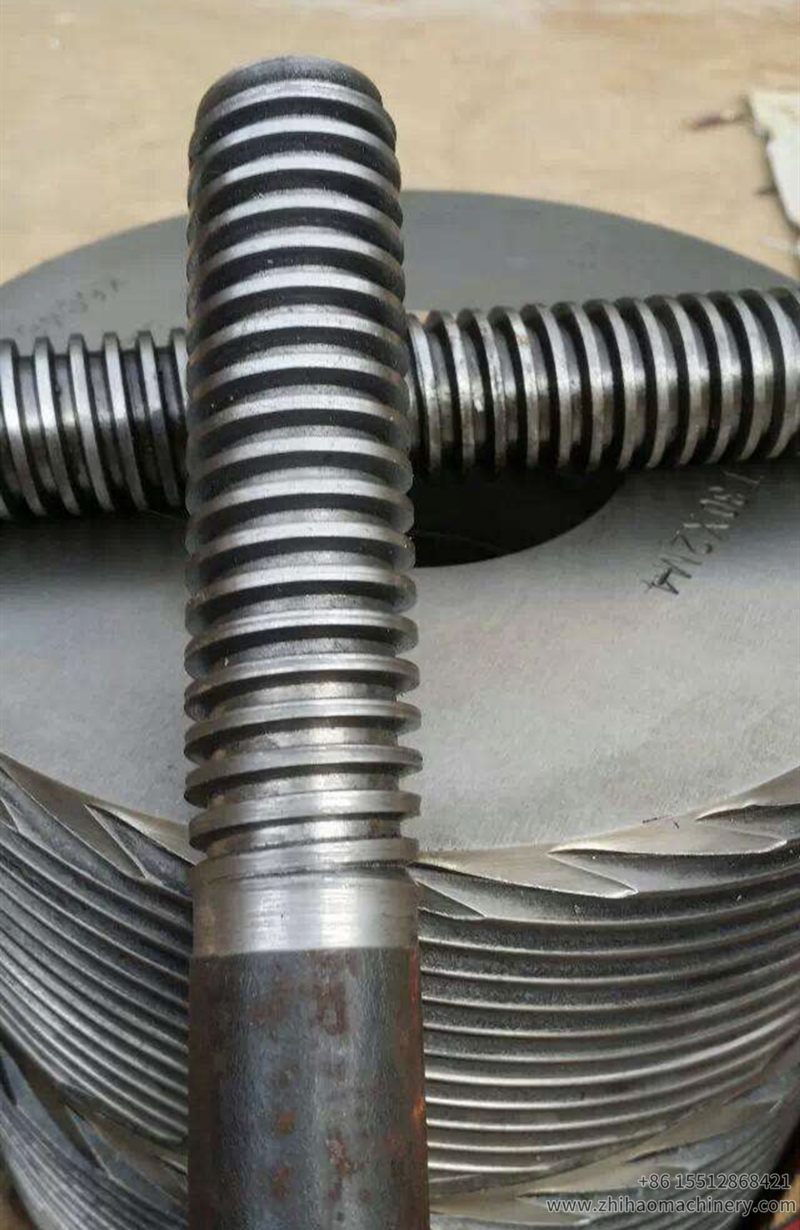

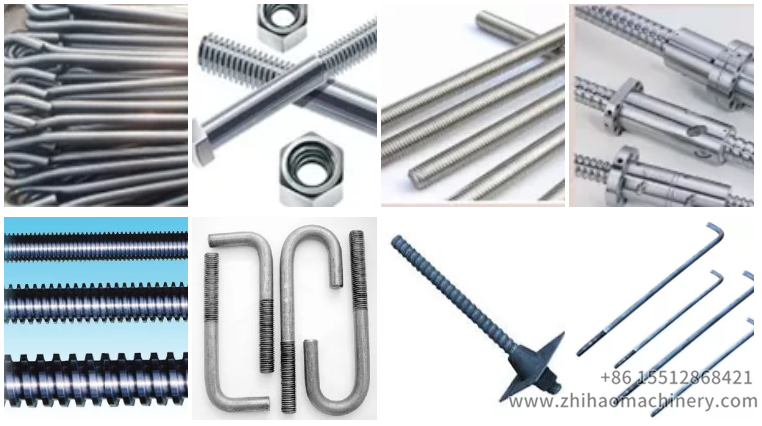

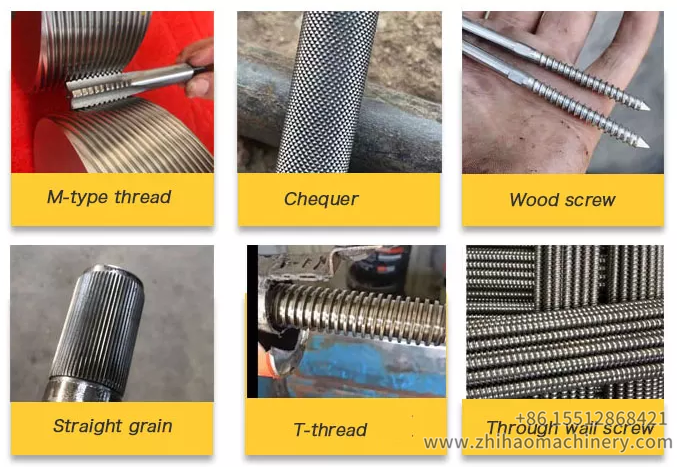

The below photos are parts of samples. And we can customized any type thread full thread roller and partical thread roller.For example:

1 1/2 ----- 8 UN

2 ----- 4.5 UNC

3/4 --- 10UNC

1 1-2 -----6 UNC

3/4 ---- 16 UNF





3/4 -- 10 UNC

1---8 UNC

1 1/4 --7 UNC

1 1/2 --6 UNC

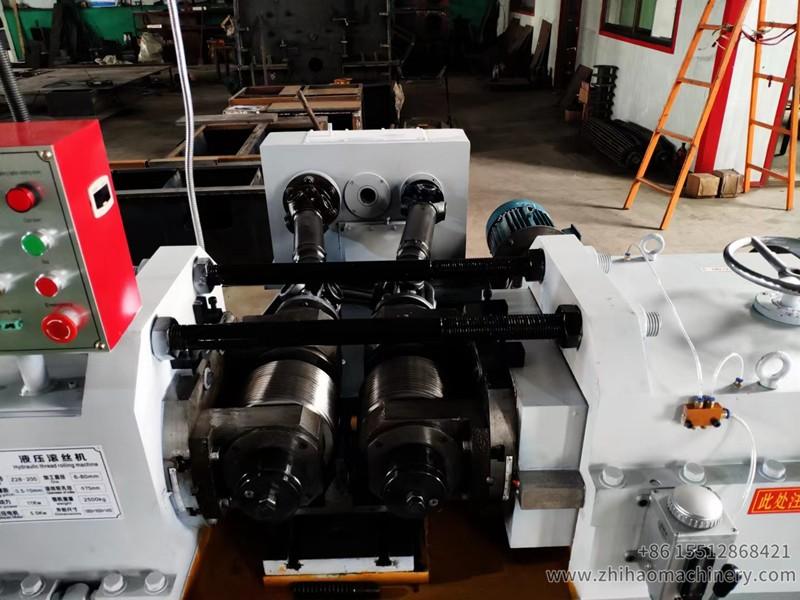

stub acme thread rolling machine, zhihaomachinery    wood screw thread rolling machine, zhihaomachinery

Technical parameter for stub acme thread wood screw thread rolling machine:

Rolling thread range Diameter 64mm

Max thread pitch 6mm

Spindle angle ±10°

Max rolling pressure 300kn

Spindle RPM 22/28/35/45/56/70rpm

Roller size range Outside diameter 210mm

Hole 75mm

Max width 150mm

Rolling time 0.1-99.9s

Rest time 0.1-99.9s

Spindle drive power 11kw

Hydraulic transmission power 5.5kw

Cooling pump power 90w

Dimension 1900*1700*1450mm

Weight 2500kg


1.Q:Where are we located in?

A:We are in Xingwan Industrial Zone Xingtai city Hebei province,China.

2.Q:How is your factory?

A: We are factory specializing in the manufacture and export of machines for more than 15 years, all of the production we sale are at a very best price and high quality.

3.Q: What is your terms of packing?

A: Generally, we pack our goods in plywood cases.

4.Q:What is your terms of payment?

A: T/T 30% as deposit, and 70% balance against BL copy.

5.Q: Warrantee and After-sale service ?

A: 12 months warrantly, man-made destory will be exception.

B: After the warrantee time, we can supply materials or teach support to you for reducing the cost of you.

6.Q:Delivery time ?

A: 10-15 days for OEM, 5-7days for ready goods.

7.Q. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

8. Q. How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

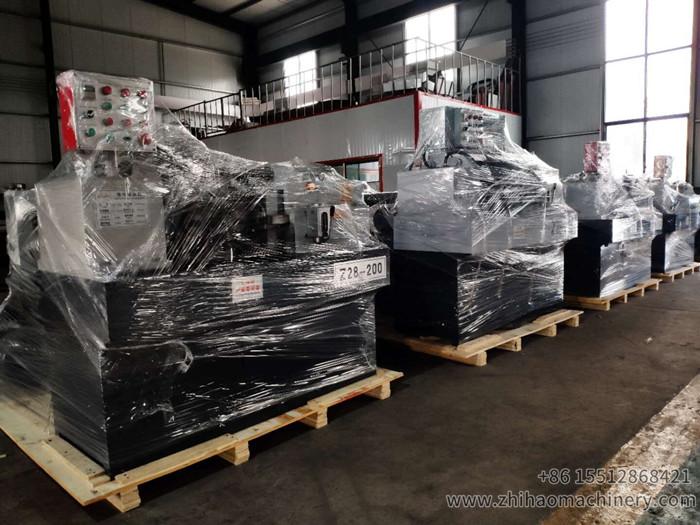

Package and Delivery:

bolt thread rolling machine, zhihaomachinery

Ethiopia thread rolling machine, zhihaomachinery

If have more questions, pls contact zhihaomachinery freely.
