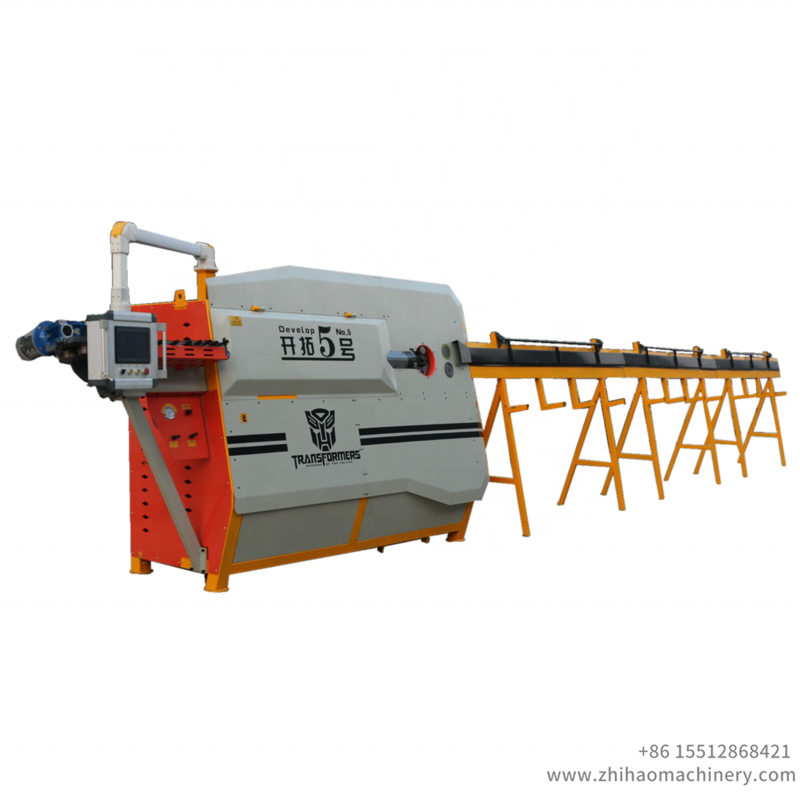

12mm 14mm cnc automatic stirrup bender for housing construction

Model: KT5
Max single bending diameter: 14mm for straight bar, 12mm for round coil bar
Max double bending diameter: 10mm
Total power: 32kw
Dimension: 3850*1200*2200mm
Weight: 2200kg
Average power: 5kw/h


12mm 14mm cnc automatic stirrup bender for housing construction

The equipment adopts PLC controller ,can process all kinds of stirrup and hook stirrup,it can automatically complete straighten,size,bend and cut.

The maximum diameter can be bent is 14mm,It can process any 2D shapes ,widely used in construction site and processing plants .

Model KT5 double bending way

Single wire Straight rebar 14mm Ribbed steel bar 5-12mm

Double wire 5-10mm

Max bending angle ±180°

Max towing speed 75m/min

Max bending speed 1000°/sec

Dimension 3850*1200*2200mm

Machine color Yellow (customized)

Process piece ≤ 2

Total power 32kw

Work temperature -5℃---40℃

Length accuracy ±1mm

Angle accuracy ±1°

Average power 5kw/h

Weight 2500kg

Long platform 3460*900*2000mm


1) automaticly straightening

2) automaticly measure

3) automaticly bending (to different shapes used in construction projects)

4) automaticly cutting

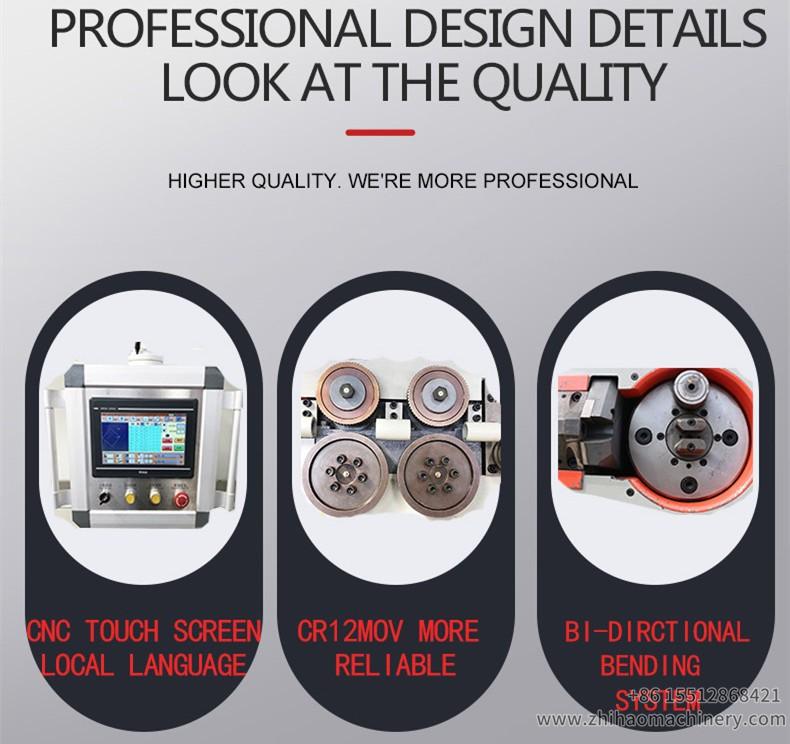

Detailed photos of China rebar bending machine:

china stirrup bending machine, zhihaomachinery

automatic stirrup bender, zhihaomachinery

Application of cnc hook bending machine:

Widely used in construction industry and rebar manufacturing enterprise; for steel wire rod, steel bar, steel rebar, etc.

hs code wire bending machine, zhihaomachinery

More details of steel bar stirrup bending machine pls contact zhihaomachinery freely!
