Two Roll anchor bolt Threading Machine

Model: Z28-40
Max rolling diameter: 36mm
Max rolling thread pitch: 4mm
Max rolling pressure: 120kn
Brand: ZHIHAO

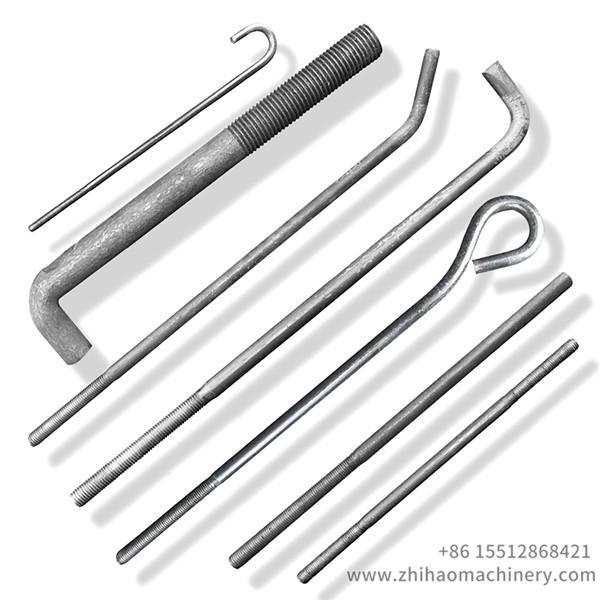

Description: anchor bolt threading machine is mainly used in the construction of ribbed steel bar straight screw thread processing, is to achieve reinforced straight thread connection process of key equipment.

EMAIL

Two Roll anchor bolt Threading Machine

working video: https://youtu.be/vlovTG_Wvxg

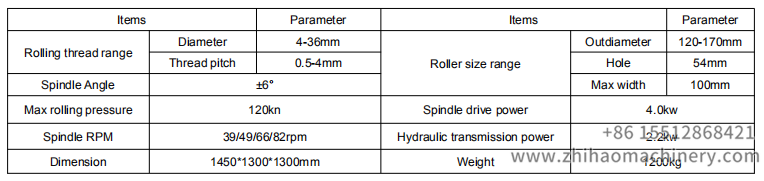

Technical parameter of Z28-40 anchor bolt threading machine:

technical parameter, zhihaomachinery

anchor bolt threading machine, zhihaomachinery

Automatic Two roll Thread Rolling Machine manufactured by zhihaomachinery. This machine is used for making threaded bars, bolts, studs, u-bolts, foundation bolts etc. This machine is Hydraulic operated with 2 thread rolls which are made from D2 material for long life operation, moreover they can be used again and again after resharping them. Machine is fitted with very easy to operate control pannel as well as machine can be operated from foot pedal too. Thread Rolls are made according to the requirement of client and thread size, moreover heat treated to have almost double life than normal. Coolant oil which is having auto circulation provides long life to the thread rolls of threading machine as well as help to give proper finish to the threaded rods.

This machine is known as with different names:

Hydraulic Threading Machine

Two Roll Thread/Threading Machine

Thread bar making machine

Automatic Threading Machine

Automatic Hydraulic Thread Rolling Machine

Automatic Scaffolding Machine

Automatic Threading Machinery

Automatic U-bolt/Bolts Threading Machine

Automatic Internal Threading Machine

Thread Rolling Machine

Scaffolding Thread Rolling Machine

Hydraulic 3 Roll Thread Rolling Machine

Scaffolding Threading Machine

Automatic Thread Rolling Machine Manufacturer

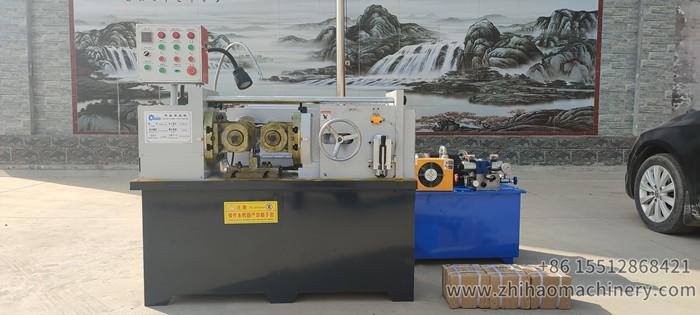

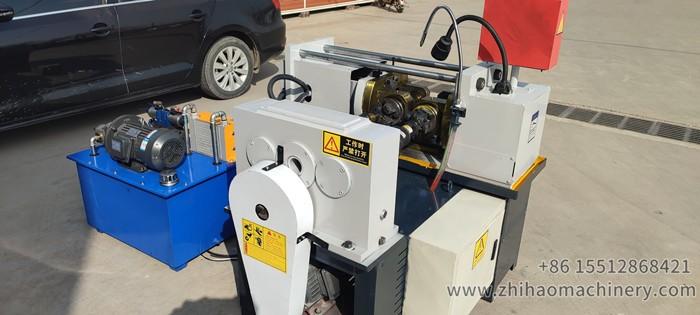

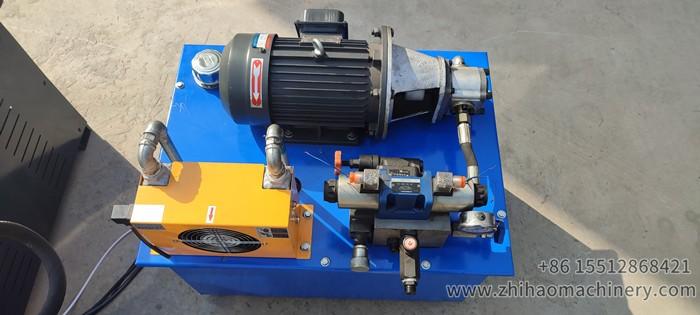

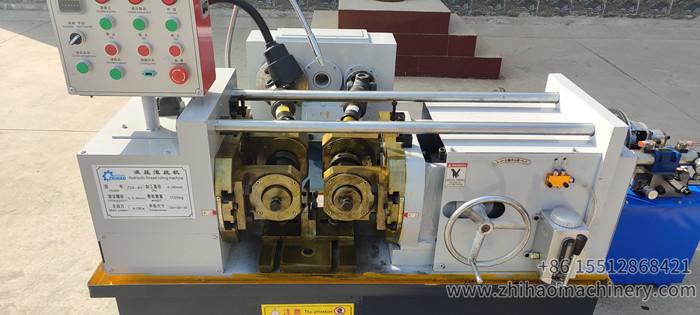

Detailed photos of Automatic Internal Threading Machine:

automatic internal threading machine, zhihaomachinery

two roll threading machine, zhihaomachinery

anchor bolt thread machine, zhihaomachinery

automatic lead screw thread rolling machine, zhihaomachinery
