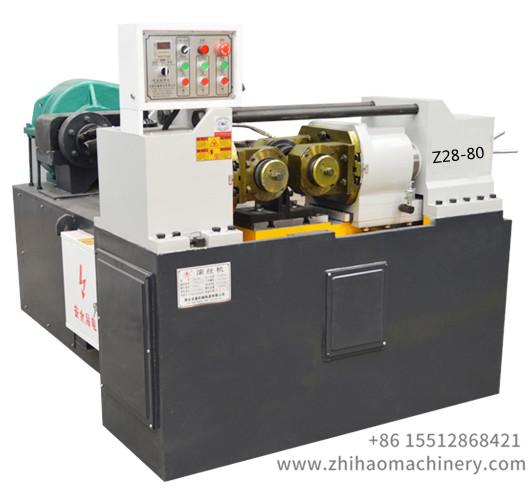

Hydraulic round die thread rolling machine

Model: Z28-80
Max rolling diameter: 48mm
Max rolling thread pitch: 4mm
Max rolling pressure: 160kn
Dimension: 1520*1400*1450mm
Hydraulic power: 2.2kw
Spindle drive power: 4.0kw
Weight: 1600kg


Hydraulic round die thread rolling machine

Hydraulic Round Die Thread Rolling Machine 2Roll use for producing screws, bolts and tools. It is a cold-forming operation only for external screws threads in a blank. The blank is pressed by thread rolling dies which are attached to the machine. The threads were formed by the pressing progress.

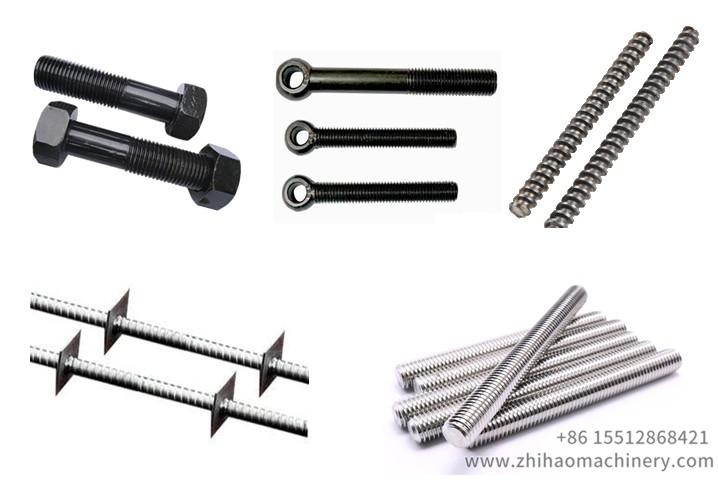

thread samples, zhihaomachinery

Model Z28-80 two roll threading machine

Rolling thread range Diameter 5-48mm

Roller size range Outdiameter 120-170mm

Hole 54mm Max width 100mm

Thread pitch 0.5-4mm

Spindle Angle ±8°

Max rolling pressure 160kn

Spindle drive power 4.0kw

Spindle RPM 37/46/63/79rpm

Hydraulic transmission power 2.2kw

Dimension 1520*1400*1450mm

Weight 1600kg

Detailed photos of automatic threading machine:

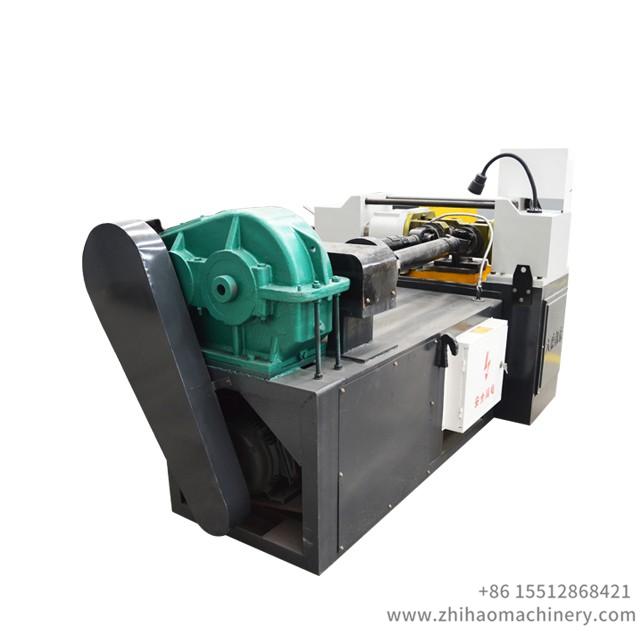

hydraulic thread rolling machine, zhihaomachinery

automatic thread making machine, zhihaomachinery

If have more questions for automatic hydraulic thread rolling machine, pls contact us freely.
