Roof sheet rolling forming machine

Type: Roof sheet roll forming machine
Raw material: colord steel sheet or Galvanized steel sheet
Voltage: 3phase 380v 50Hz
Usage: roof, wall
Description: offered Roof Sheet Roll Forming Machine is available at market leading price.

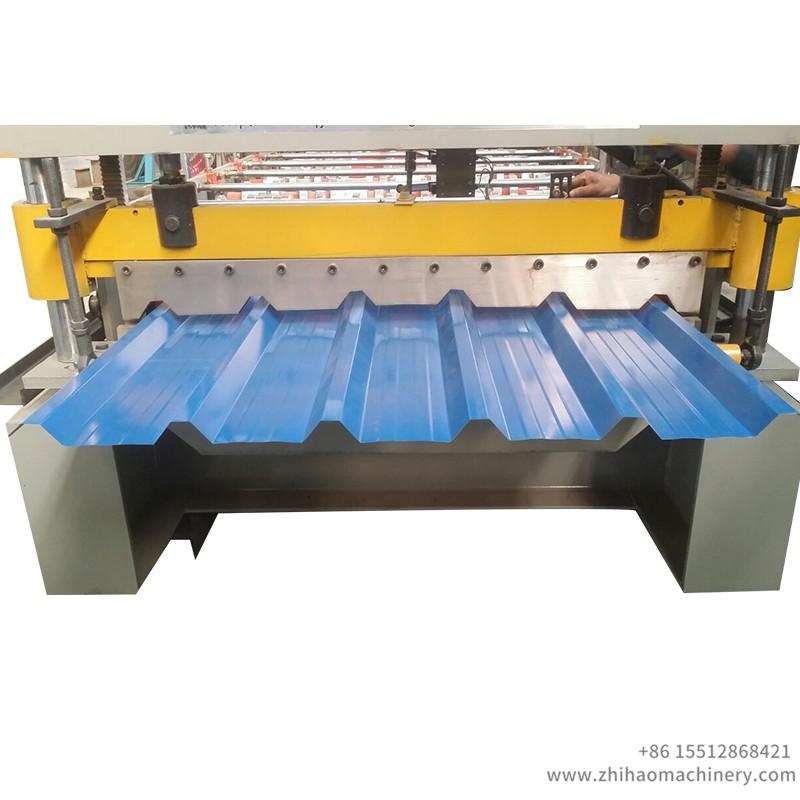

Roof sheet rolling forming machine

1.Weight capacity of decoiler 4T

2.Appearance Size(L*W*H) 6500*1500*1500mm

3.Raw material /feeding sheet material Colored steel and galvanized steel

4.Roller material 45Steel roofing roll forming machine high grade steel

5.Shaft material 45Steel roofing roll forming machine high grade steel

6.Kind of drive Chain drive

7.Cutting system Automatic hydraulic cutting

8.Cutting blade material Cr 12 high grade steel

9.Frame material 300 H-high grade steel

10.Control system Totally automatic PLC control system

11.Main power 3 kw

12.Roller stations 13 rows

13.Speed of production 8-12m/min

14.Thickness of colored steel 0.2-0.8mm

15.Feeding width 1000mm

16.Effectiv width 840/900mm

15.Frame material 300 H-steelcorrugated roll forming machine, zhihaomachinery

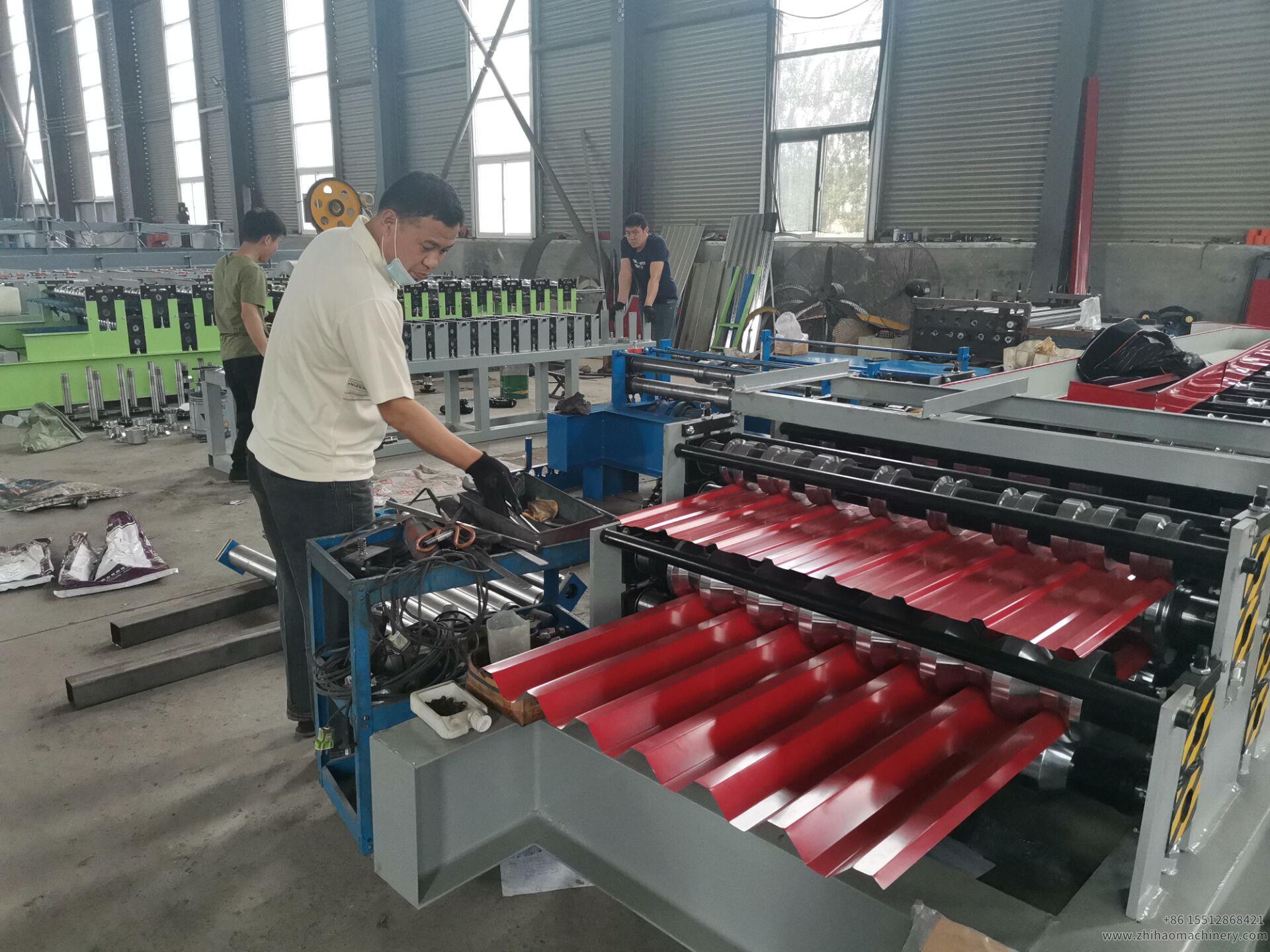

1) Double layers color steel sheet roll forming machine can produce two designs, this machine process galvanized steel and color steel sheet, thickness is 0.3-0.7mm.

2) This roof sheet roll forming machine the best advantage is save space. But three layers can not working in the same time. PLC can choose working by up layer, or down layer.

3) We can make Double Layers Color Steel Sheet Roll Forming Machine as your request, our engineer will make drawings before you order. If you have drawing, please offer it to us, our engineer will confirm it and will give advise.

Roof sheet rolling forming machine, zhihaomachinery

More details for sheet roofing machine IBR and corrugated roll forming machine, pls contact us freely.
