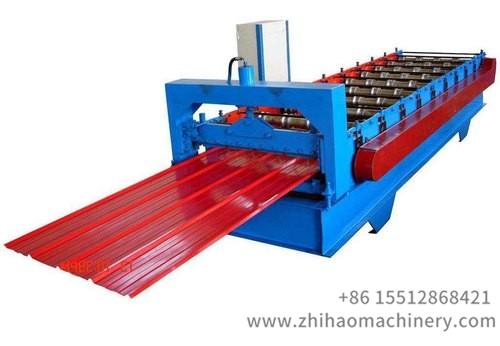

1000mm width roof sheet roll forming machine

Type: 1000mm width roof sheet roll forming machine
Raw material: colord steel sheet or Galvanized steel sheet
Voltage: 3phase 380v 50Hz

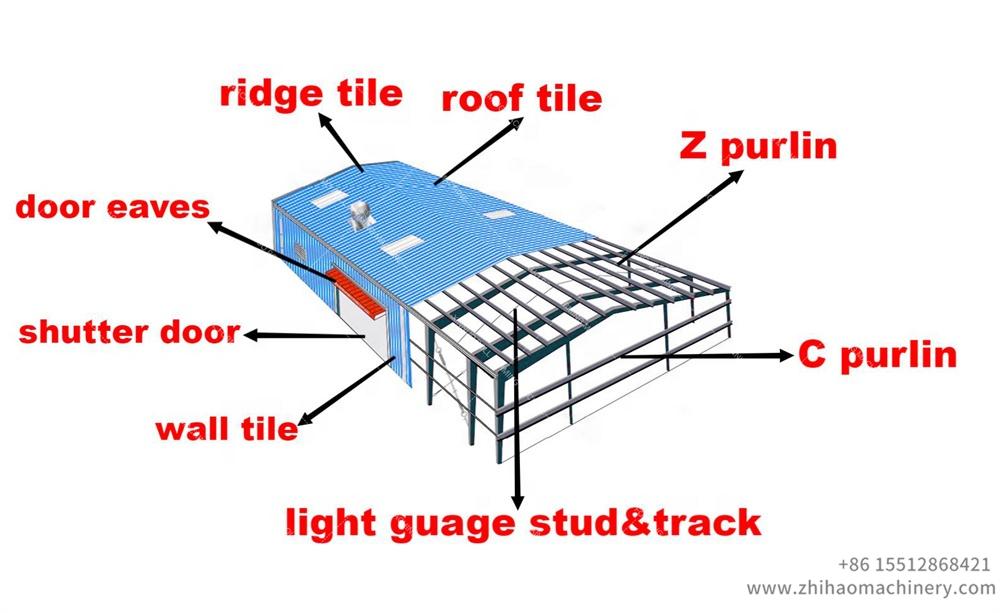

Usage: roof, wall
Description: roof and wall panel roll forming machine roof and wall sheet making machinery equipment


1000mm width roof sheet roll forming machine

Suitable to process: Color steel plate

Width of the plate: 914mm/1000mm/1200mm/1220mm/1250mm

Thickness of the plate: 0.3-0.8mm

De-coiler: Manual one, can load 5 tons raw material

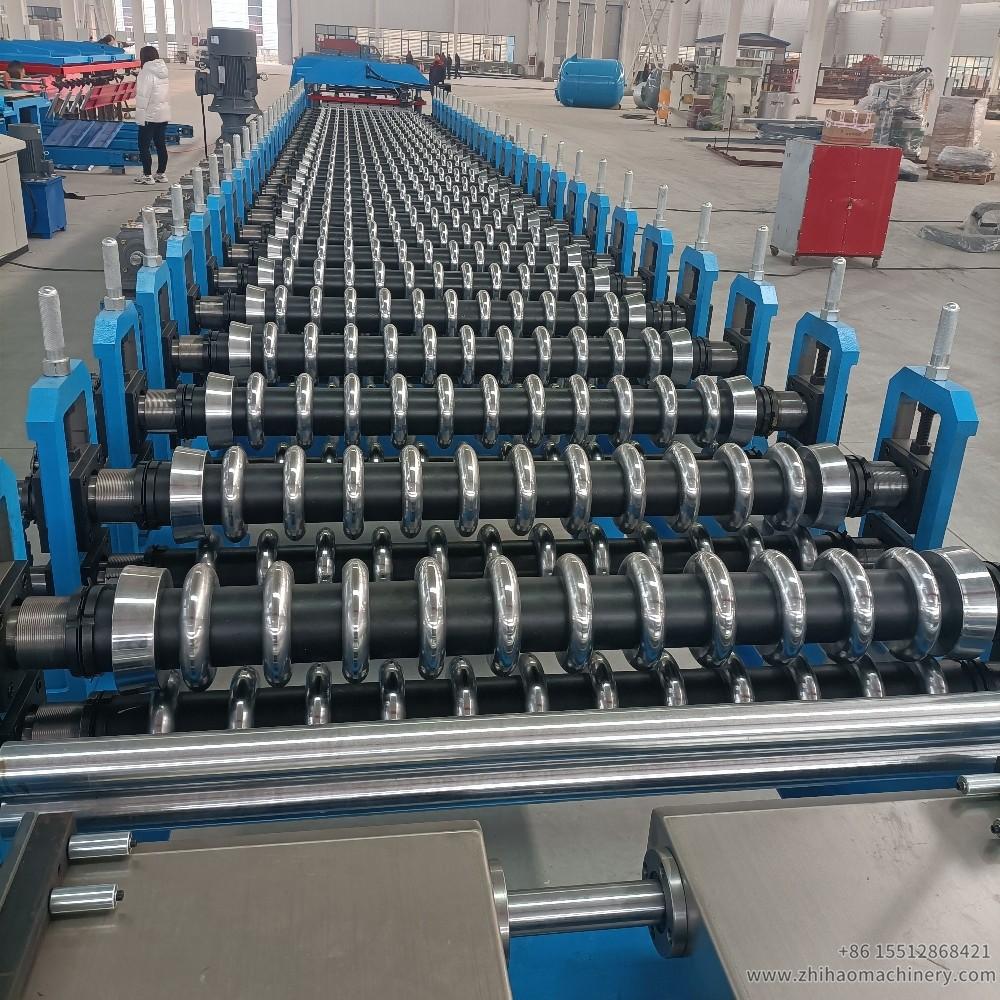

Rollers for forming: 16 rows

Diameter of the roller: 80mm

Rolling material: Carbon Steel 45#

Main motor power: 5.5kw

Material of the cutting blade: Cr12 mov

Hydraulic cutting power: 4kw

Processing precision: Within 1.00mm

Control system: Delta PLC control

Side panel of machine: 16mm

Main structure of the machine: 350 H steel

Weight: About 5T

Dimensions: 8.5*1.6*1.6m

Voltage: 380V 50Hz 3phases(changeable as needs)

Certificate: CE/ISO

Custom: According to customer's requirements

Roof Panel Forming Machine, zhihaomachinery

Roof sheet rolling forming machine, zhihaomachinery

More details for Double layer roofing sheet color steel making machine roll forming machine, pls contact zhihaomachinery freely.
