dobladora de estribos cnc

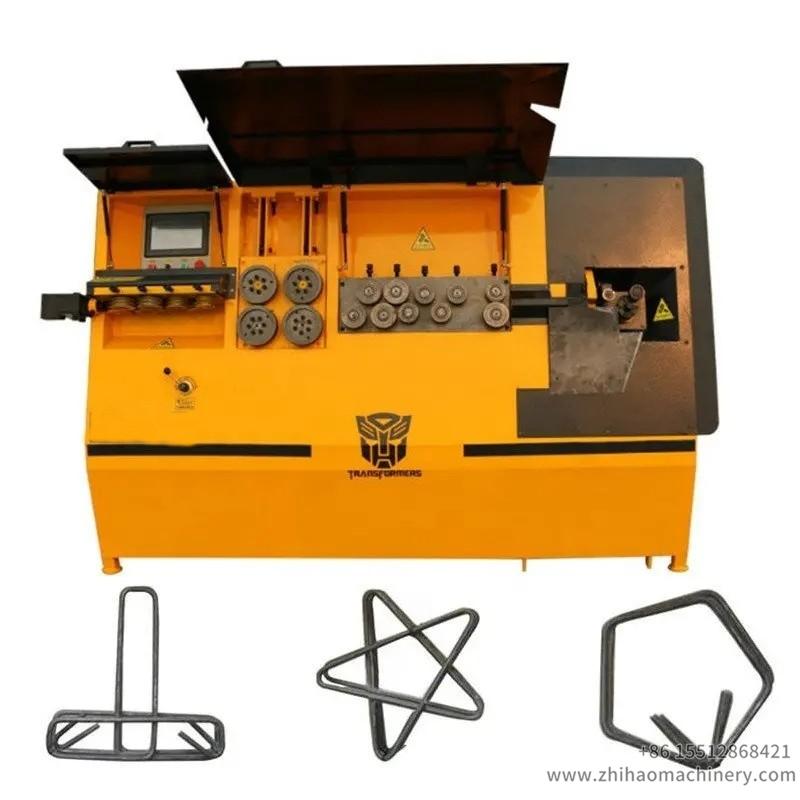

Model: KT1 dobladora de estribos cnc
Max single bending diameter: 10mm
Max double bending diameter: 6mm
Total power: 14kw
Description: 1. The automatic stirrup bender machine is used for bending .
2. The automatic stirrup bender machine uses high-quality, fast, energy-saving steel construction process, ensuring efficiency and effective.
3. But also provides the premise for the low price and high quality.
4. widly variety.can produce more than 100 different types wokpiece


dobladora de estribos cnc

The CNC automatic stirrup bending machine adopts CNC servo control system can automatically complete the straightening, sizing, bending, cutting, and other processes.The machine can bend maximum diameter is 10mm. The device is widely used in the construction industry, large steel processing plants and other fields. In addition, the production equipment is more perfect after several improved ,it can meet the actual needs of the steel processing and production.

Technical Parameter:

Model KT1 single bending way

Single wire Round steel 4-10mm Ribbed steel bar 4-8mm

Double wire Round steel 4-6mm Ribbed steel bar 4-6mm

Max bending angle ±180°

Center pin diameter 16/18/20

Max towing speed 60m/min

Max bending speed 800°/sec

Dimension 2600*800*1700mm

Machine color Yellow (customized)

Process piece ≤ 2

Air system pressure ≥ 0.8mpa

Total power 14kw

Work temperature -5℃---40℃

Length accuracy ±1mm

Angle accuracy ±1°

Average power 4.5kw/h

Weight 1200kg

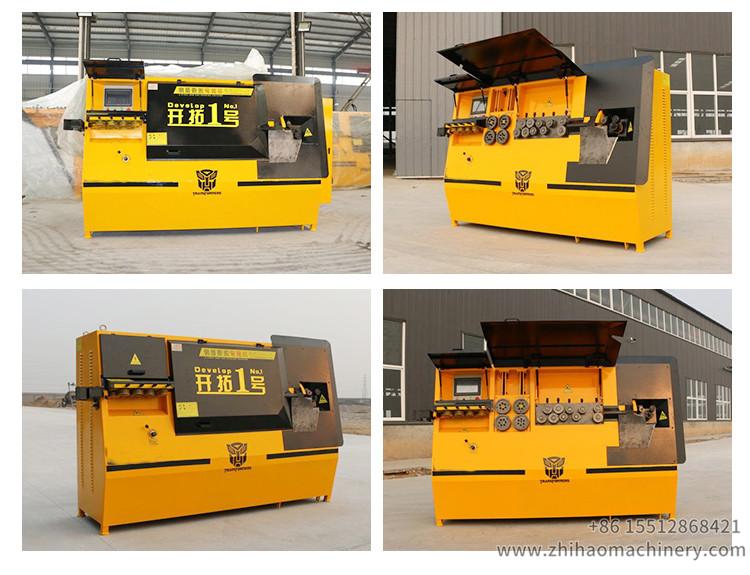

Detailed photos for dobladora de estribos cnc:

construction stirrups, zhihaomachinery

rebar bending machine, zhihaomachinery

If have any interesting for dobladora de estribos cnc, pls contact freely.
