آلة ثني الركاب باستخدام الحاسب الآلي

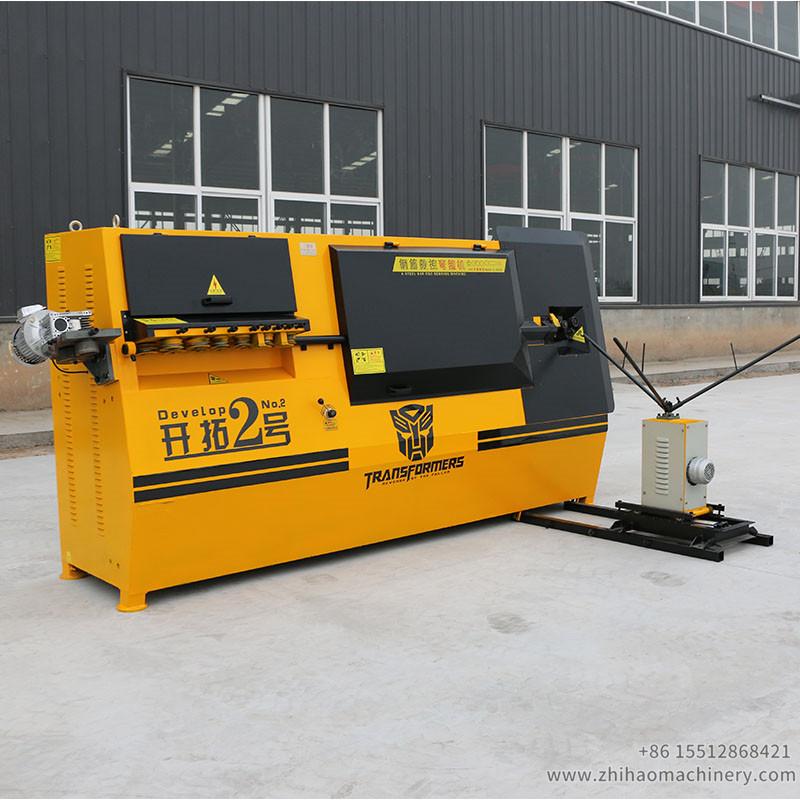

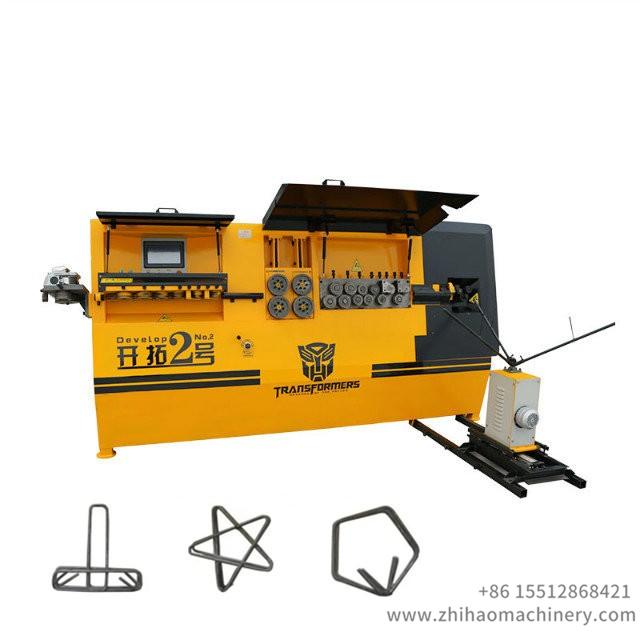

Model: KT2 cnc stirrup bender
آلة ثني الركاب باستخدام الحاسب الآلي
Max single bending diameter: 12mm
Max double bending diameter: 8mm
Total power: 20kw
Description: 1. The automatic stirrup bending machine is used for bending .
2. The automatic stirrup bending machine uses high-quality, fast, energy-saving steel construction process, ensuring efficiency and effective.
3. But also provides the premise for the low price and high quality.
4. widly variety.can produce more than 100 different types wokpiece


آلة ثني الركاب باستخدام الحاسب الآلي


1 This equipment adopts servo controlling system;

2 Automatically accomplish the functions of rebar feeding, straighten, bending and cutting etc;

3 Max bending diameter of round bar is 12mm;

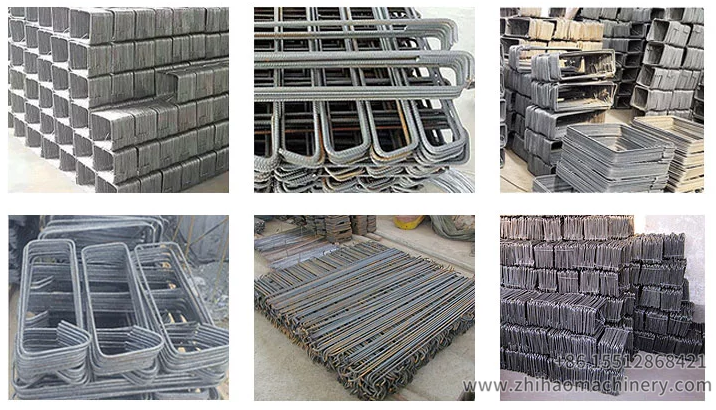

4 Continuously bend various stirrup of plane figure;

5 Bidirectional bending function,rebar stirrup bending machine can make special-shaped;

6 High efficiency and accurate processing precision;

7 Double roller synchronization with a wire feed system,easy to use and more convenient to study.

Model KT2 technical parameter:

Single wire Round steel 4-12mm

Ribbed bar 4-10mm

Double wire Round steel 4-8mm

Ribbed steel bar 4-8mm

Max bending angle ±180°

Center pin diameter 16/18/20

Max towing speed 60m/min

Max bending speed 800°/sec

Dimension 3200*1000*1700mm

Machine color Yellow (customized)

Process piece ≤ 2

Air system pressure ≥ 0.8mpa

Total power 20kw

Work temperature -5℃---40℃

Length accuracy ±1mm

Angle accuracy ±1°

Average power 5kw/h

Weight 1350kg

cnc rebar bender, zhihaomachinery

stirrups, zhihaomachinery

construction stirrups, zhihaomachinery

More details of rebar stirrup bending machine, pls contact us freely!

Email: sales@zhihaomachinery.com

Whatsapp: +8615512868421
