Indonesia thread rolling machine for lead screw

Indonesia thread rolling machine for lead screw

Mainly used for all kinds of external thread, including the common thread, trapezoidal thread and modulus thread. It also can do the rolling process, forming, slidabrading, knurling etc..

Apply for all kinds of carbon steel, alloy steel and non-ferrous metals, the elongation is more than 10%, the compressive strength is less than 100 KGF/mm².

Technical parameter of lead screw thread rolling machine:

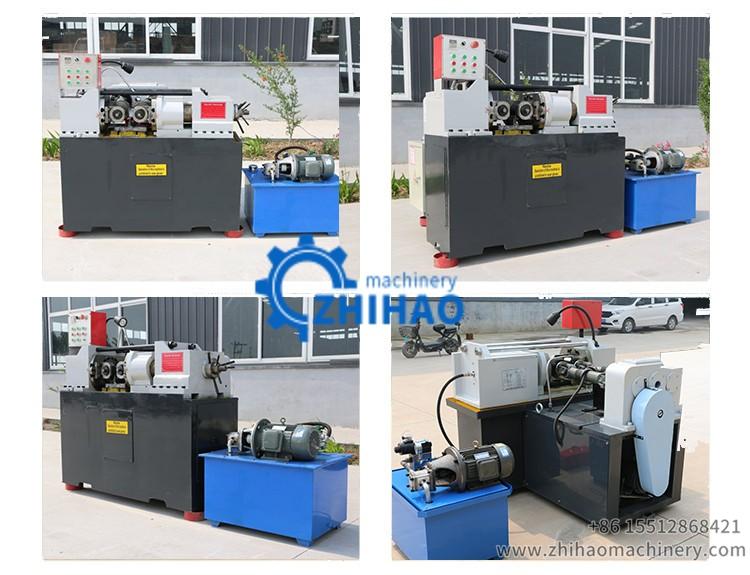

Model Z28-80 two roll threading machine

Rolling thread range Diameter 5-48mm

Roller size range Outdiameter 120-170mm

Hole54mm Max width100mm

Thread pitch 0.5-4mm

Spindle Angle ±8°

Max rolling pressure 160kn

Spindle drive power 4.0kw

Spindle RPM 37/46/63/79rpm

Hydraulic transmission power 2.2kw

Dimension 1520*1400*1450mm

Weight 1600kg

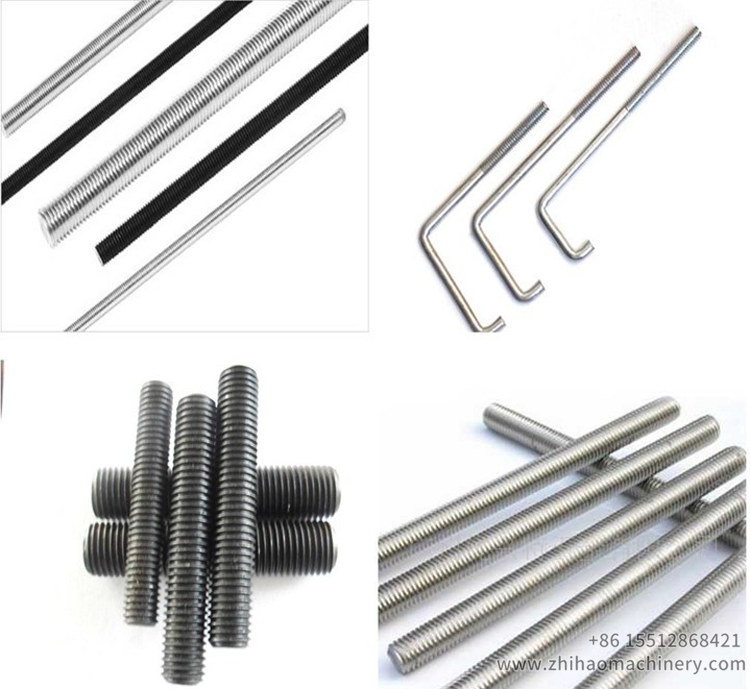

Finished workpiece of Z28-80 threaded rod thread rolling machine:

Any questions for Indonesia thread rolling machine, pls contact us freely.
