chain link fencing machine in india

automatic double chain link fencing machine hot sale in india
Model: 2-2000
Machine width: 2m
Wire mesh width: 0.5-2m
Wearing parts: Moulds, Shear knife, Proximity switch
Description: It is suitable for high quality low-carbon wire, galvanized wire, pvc cpated wire, aluminum alloy wire, aluminum-clad steel wire, stainless steel wire etc.

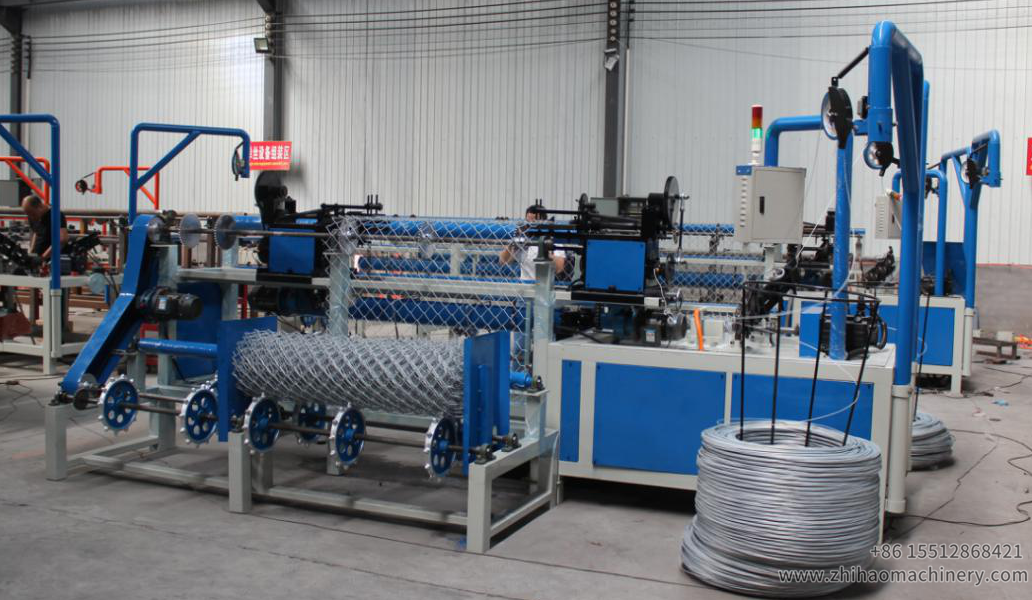

Chain link fencing machine in india

working video:https://youtu.be/Cm7okQE6lbE

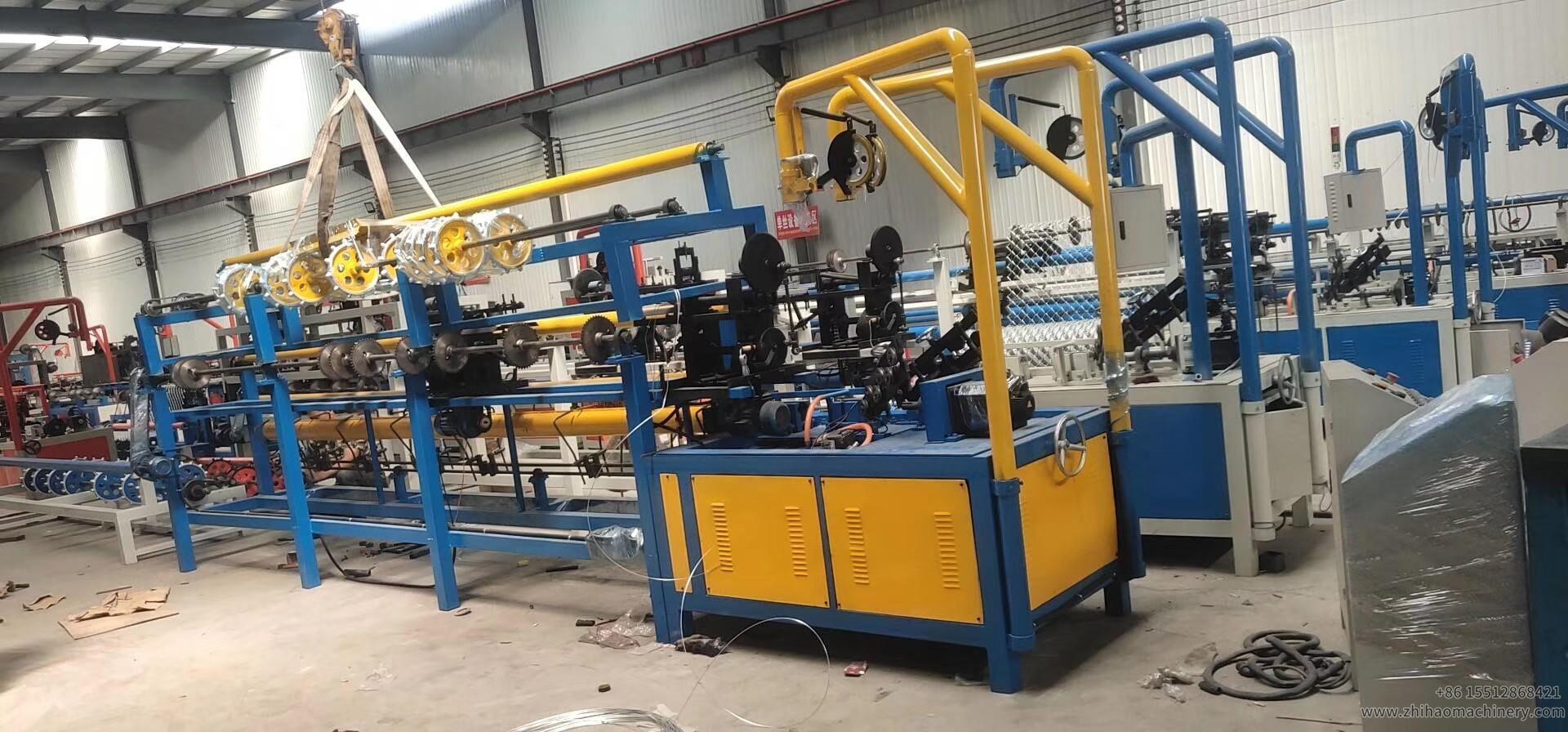

chain link fencing machine in india, zhihaomachinery

India chain link fencing machine description:

Chain link fence machine is used to make chain link fences of different sizes in different industries. The wire that is used for the process is taken from a payoff stand that further gets passed through different dies, forming a diamond shape. Moreover, it also locks the edge of the mesh and provides automatic weaving in chain link mesh. The mesh that is produced by this machine is used for fencing purposes of the garden, school, college, playground, railway, airport, industries, etc.

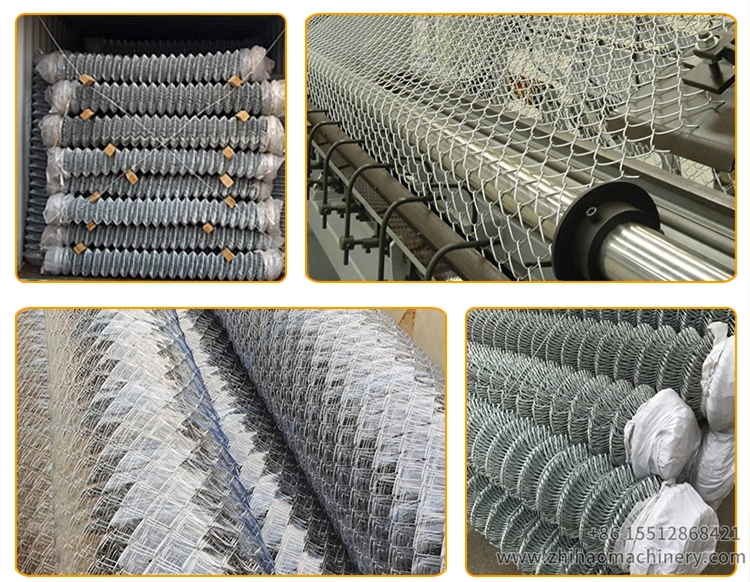

wire mesh chain link fence machine, zhihaomachinery

Technical parameter of india chain link fencing machine:

Model: 2-2000

Machine width: 2m

Wire mesh width: 0.5-2m

Overall dimension: netting: 5.8m *1m *2.2m, Lockrand: 5.7m *1m *1.4m, rolling mesh: 2.7m *1m *0.7m

Machine weight: 1700kg

Wire diameter: 2.0-4.5mm

Grid size: 25-120mm

Capacity: 50-120m2/h

Voltage: 3 phase 380v ( if need other volatge, can custom made)

Power: Major motor: 5.5kw Servo motor 1 set Cutter: 2.2kw brake motor 1 set

lockrand: 0.75kw 3 phase motor 2 sets
rolling mesh: 0.75kw 3 phase motor 1 set(rolling mesh machine)
water pump: 30w motor 1 set

Details parts of India chain link fencing machine:

(1)Double wire feeding system

1,Double wire feeding can add speed of machine. this part can remove. It is easy for loading machine.

2,Two wires twist together,and turn into the finished mesh hole. so the production can be increased to max 180 Square Meter/ Hour.

(2)Mould and Soap device

1,the material of the mould is specially treated, which increases the service life. Each machine will be equipped with three different sizes.

2,Soap water can lubricate machine and wire, which make working smoothly. the device can make soap water recycling.

(3)Mesh width adjustment

the machine increases the motor for adjusting the width of wire mesh and saves labor.

(4)Mesh Compacting system

1,the finished wire mesh can be making into mesh rolls or compacted into bundles.

2,the mesh rolling machine and mesh Compacting machine, you can choose one of them.

(5)Control system

the operating platform on the machine can be adjusted within a certain range, which is convenient for operation. the screen displays Chinese and English or more languages.

 chain link fence making machine delivery, zhihaomachinery

After sale service for india chain link fencing machine

1.We can provide detailed installation videos, Manuals, electrical schemes, layouts to help your machine installation.

2.Our best engineer to buyers factory for installation, debugging, and training.

3.We can provide online after-sales service is available.

4.We can provide free accessories for one year.

Any intestesting for india chain link fencing machine,

pls contact zhihaomachinery freely!
