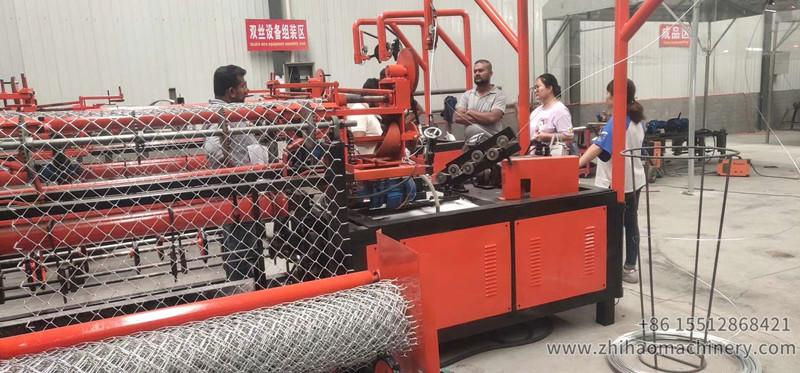

Fully Automatic Chain Link Fence Wire Netting Machine for Sale

Model: 2-2000
Machine width: 2m
Wire mesh width: 0.5-2m
Wearing parts: Moulds, Shear knife, Proximity switch
Brand: ZHIHAO
Description: The automatic chain link fence making machine is welded of high-quality steel and channel steel with a PLC control system, so the frame of the machine will be more stable and stronger, and the height of the frame can be adjustable. Easy operation and high-speed efficiency.

Fully Automatic Chain Link Fence Wire Netting Machine for Sale

working video: https://youtu.be/Cm7okQE6lbE

Technical parameter:

Model: 2-2000

Machine width: 2m

Wire mesh width: 0.5-2m

Overall dimension: netting: 5.8m *1m *2.2m, Lockrand: 5.7m *1m *1.4m, rolling mesh: 2.7m *1m *0.7m

Machine weight: 1700kg

Wire diameter: 2.0-4.5mm

Grid size: 25-120mm

Capacity: 50-120m2/h

Voltage: 3 phase 380v ( if need other volatge, can custom made)

Power: Major motor: 5.5kw Servo motor 1 set Cutter: 2.2kw brake motor 1 set

lockrand: 0.75kw 3 phase motor 2 sets
rolling mesh: 0.75kw 3 phase motor 1 set （rolling mesh machine）
water pump: 30w motor 1 set

wire netting machine, zhihaomachinery

Details parts of Fully Automatic Chain Link Fence Wire Netting Machine:

(1)Double wire feeding system

1,Double wire feeding can add speed of machine. this part can remove. It is easy for loading machine.

2,Two wires twist together,and turn into the finished mesh hole. so the production can be increased to max 180 Square Meter/ Hour.

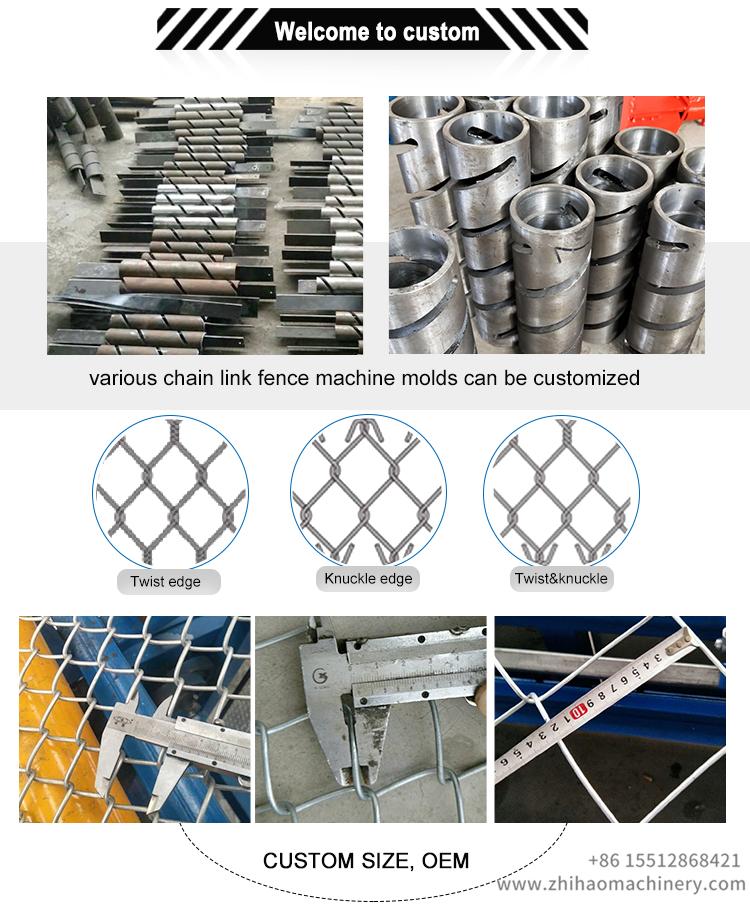

(2)Mould and Soap device

1,the material of the mould is specially treated, which increases the service life. Each machine will be equipped with three different sizes.

2,Soap water can lubricate machine & wire, which make working smoothly. the device can make soap water recycling.

(3)Mesh width adjustment

the machine increases the motor for adjusting the width of wire mesh and saves labor.

(4)Mesh Compacting system

1,the finished wire mesh can be making into mesh rolls or compacted into bundles.

2,the mesh rolling machine and mesh Compacting machine, you can choose one of them.

(5)Control system

the operating platform on the machine can be adjusted within a certain range, which is convenient for operation. the screen displays Chinese and English or more languages.
