chain fencing machine for Israel

Model: 2-2000 chain fencing machine for Israel
Machine width: 2m
Wire mesh width: 0.5-2m
Wearing parts: Moulds, Shear knife, Proximity switch
Description: The automatic chain link fence making machine is welded of high-quality steel and channel steel with a PLC control system, so the frame of the machine will be more stable and stronger, and the height of the frame can be adjustable. Easy operation and high-speed efficiency.


chain fencing machine for Israel

Model: 2-2000

Machine width: 2m

Wire mesh width: 0.5-2m

Overall dimension: netting: 5.8m *1m *2.2m, Lockrand: 5.7m *1m *1.4m, rolling mesh: 2.7m *1m *0.7m

Machine weight: 1700kg

Wire diameter: 2.0-4.5mm

Grid size: 25-120mm

Capacity: 50-120m2/h

Voltage: 3 phase 380v ( if need other volatge, can custom made)


Major motor: 5.5kw Servo motor 1 set
Cutter: 2.2kw brake motor 1set
lockrand: 0.75kw 3 phase motor 2 sets
rolling mesh: 0.75kw 3 phase motor 1 set(rolling mesh machine)
water pump: 30w motor 1 set

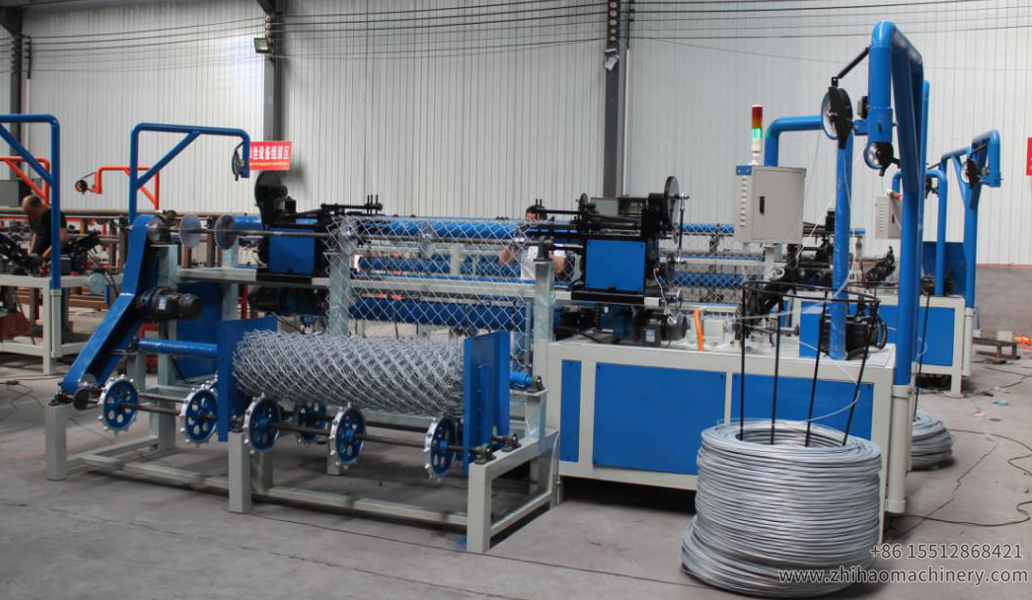

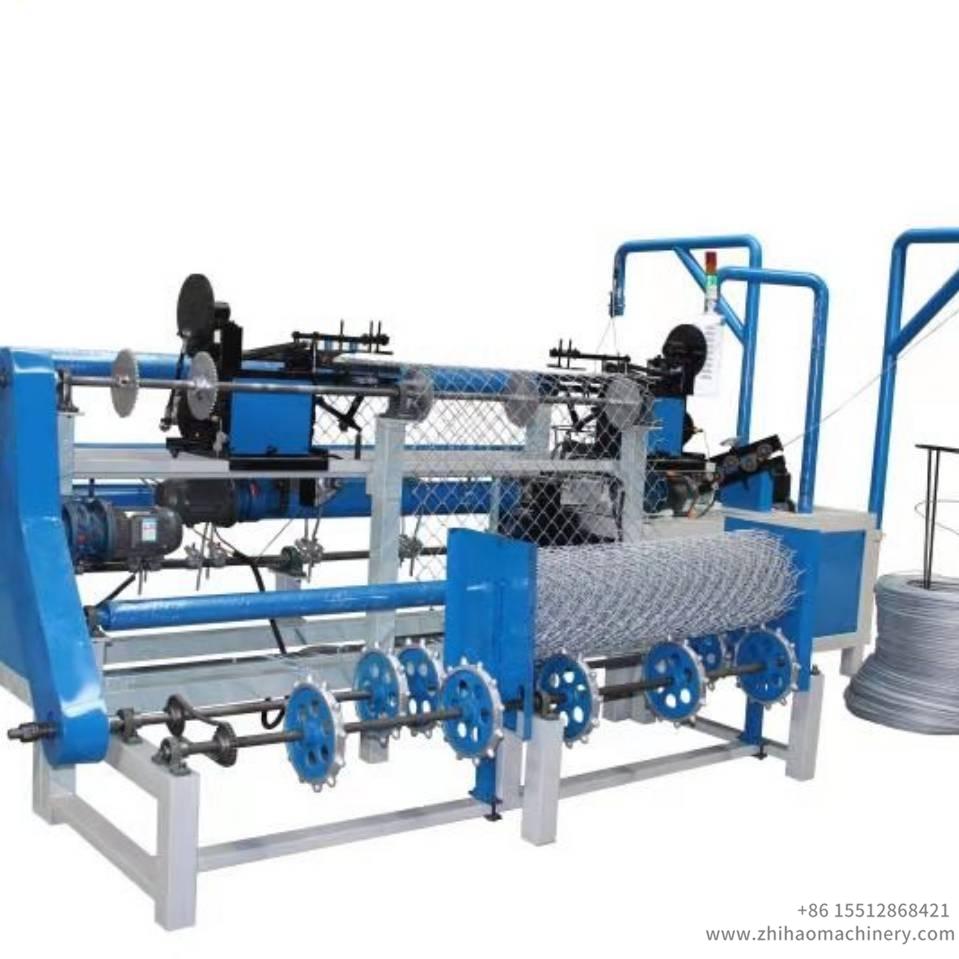

Full automatic chain fencing machine with factory price:

double wire chain link fence machine, zhihaomachinery

chain fencing machine, zhihaomachinery

Main Features of chain fencing machine:

1) PLC+Touch Screen,easy to operate.

2) Servo motor for transmission,more accurate and fast.

3) Weaving speed can be adjusted with VFD.

4) Forming mold is made of special material,it has long life.

5) Both sides can be twisted or closed according to your requirement.

6) Finished products can be compressed by compacting machine.

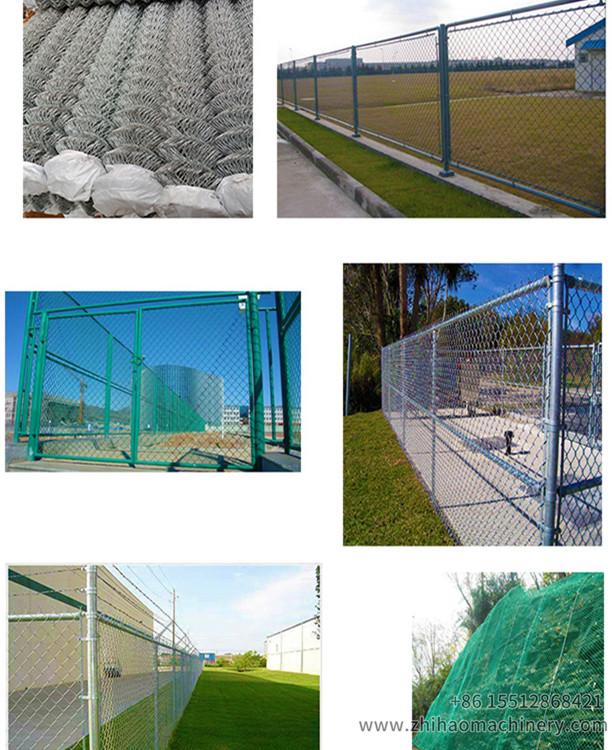

Usages of chain fencing machine

chain link fence usage, zhihaomachinery

More details for chain fencing machine, pls contact us freely!
