steel bar stirrup bending machine for 5-10mm

Model: KT3 steel bar stirrup bending machine for 5-10mm
Max single bending diameter: 14mm for straight bar, 12mm for round coil bar
Max double bending diameter: 10mm
Total power: 32kw
Dimension: 3850*1200*2200mm
Weight: 2200kg
Average power: 5kw/h


steel bar stirrup bending machine for 5-10mm

Technical parameter for bar stirrup bending machine:

Model KT5 double bending way

Single wire Straight rebar 14mm Ribbed steel bar 5-12mm

Double wire 5-10mm

Max bending angle ±180°

Max towing speed 75m/min

Max bending speed 1000°/sec

Dimension 3850*1200*2200mm

Machine color Yellow (customized)

Process piece ≤ 2

Total power 32kw

Work temperature -5℃---40℃

Length accuracy ±1mm

Angle accuracy ±1°

Average power 5kw/h

Weight 2200kg

Long platform 3460*900*2000mm

bar stirrup bending machine, zhihaomachinery

Description of bar stirrups bending machine:

Automatic steel bar stirrup bending machineCNC servo control system, can be done automaticallyreinforced straightening, cut to length, bending hoop, cutting and other process, the diameter of 6-10mm can bend steel, continuous production of any planar shape of products. This product is widely used in railways, highways, bridges, airports, real estate, large steel bar processing plants and other fields.

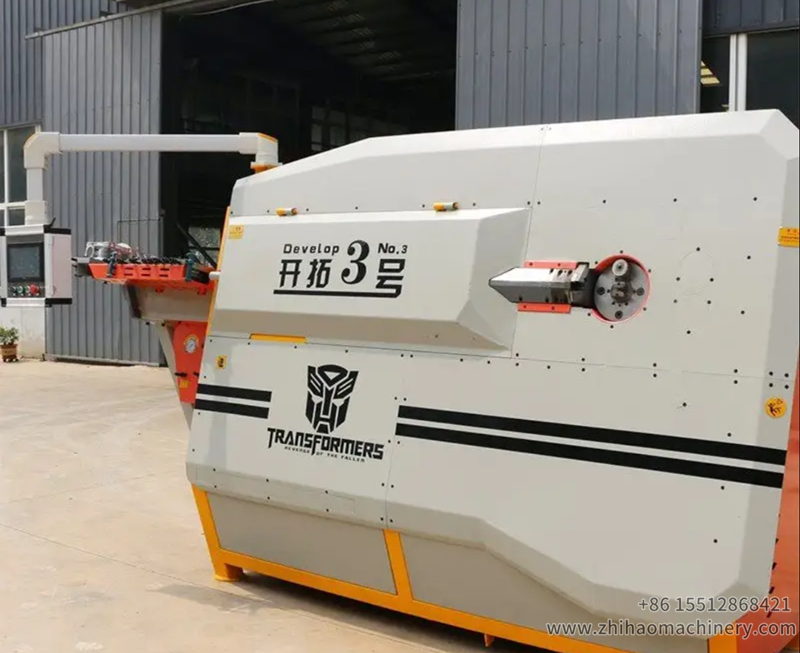

Detailed photos of bar stirrup bending machine:

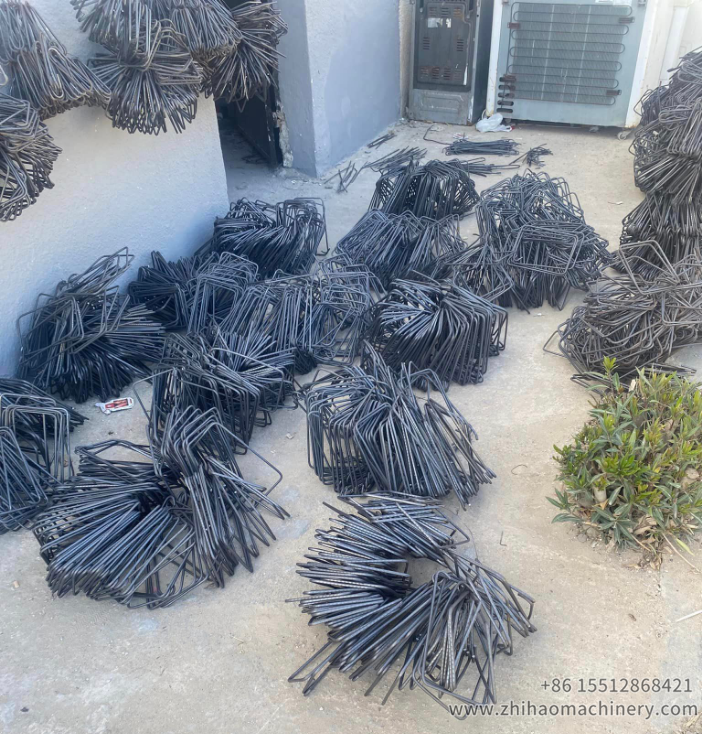

steel bar stirrup bending machine, zhihaomachinery    stirrups for concrete slabs, zhihaomachinery

Any interesting fo bar bending stirrups machine, pls contact us freely!
