cnc hoop bending machine, automatic bar stirrup bender machine

Model: KT4 cnc hoop bending machine, automatic bar stirrup bender machine
Max single bending diameter: 12mm
Max double bending diameter: 8mm
Total power: 23.5kw
Dimension: 3600*1110*1700mm
Weight: 1550kg
Average power: 5kw/h


cnc hoop bending machine, automatic bar stirrup bender machine

Fully automatic bar stirrup bender machine with straightening function, one machine for two purposes. Using CNC operation, it can process squares, rectangles, diamond-shaped polygons, etc. of various sizes and specifications. From the wire rod raw material to the stirrup product, it can be processed into cold and hot rolled wire rods. High production efficiency, equivalent to thirty workers. One-person operation saves a lot of labor and raw materials, and there is basically no loss of steel bars during continuous forming.

Technical parameter of automatic bar stirrup bender machine:

Model KT4 double bending way

Single wire Round steel 4-12mm

Ribbed steel bar 4-10mm

Double wire Round steel 4-8mm

Ribbed steel bar 4-8mm

Max bending angle ±180°

Max towing speed 60m/min

Max bending speed 800°/sec

Dimension 3600*1110*1700mm

Machine color Yellow (customized)

Process piece ≤ 2

Air system pressure ≥ 0.8mpa

Total power 23.5kw

Work temperature -5℃---40℃

Length accuracy ±1mm

Angle accuracy ±1°

Average power 5kw/h

Weight 1550kg

Optional Long platform 3m/6m/9m

bar stirrup bender machine, zhihaomachinery

Why choose us?

1. For price, we are professional manufacturer in Hebei province, we can supply competitive price for you.

2. For pre-sales service, our sales team will answer all your questions within 24 hours, welcome you visit our factory to verify quality.

3. For after-sales service, we have professional technician to solve your problems within 24 hours, life time technical support.

4. For packages, fumigation-free marine wooden box.

5. For payment, we accept TT, LC, WEST UNION and etc.

6. For delivery time, we always have stirrup bender machines in stock.

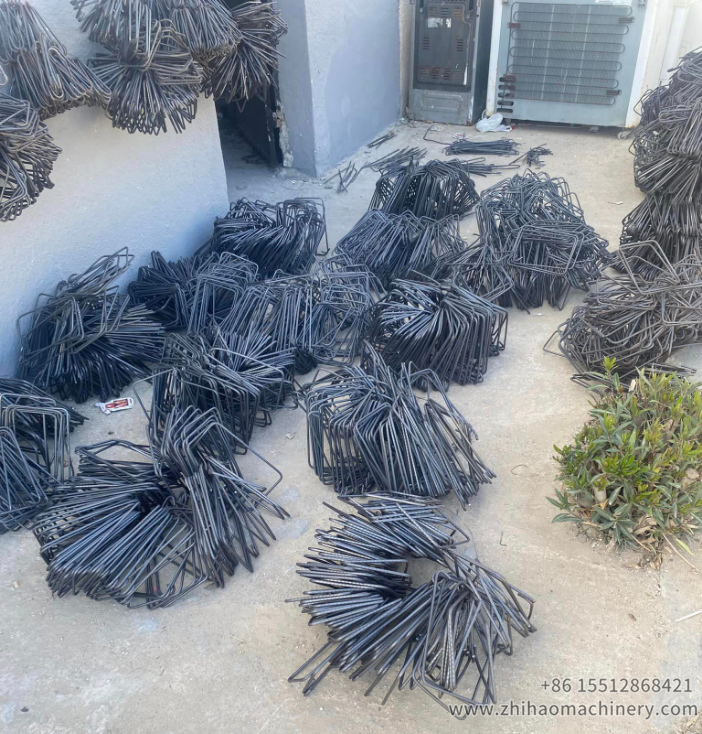

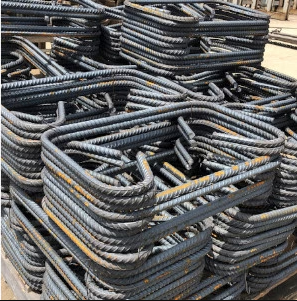

Application of automatic bar stirrup bender machine:

cnc hoop bending machine, zhihaomachinery

Any more question for automatic bar stirrup bender machine, Contact zhihaomachinery freely!

Email: sales@zhihaomachinery.com

Whatsapp: +8615512868421
