China 3 roll thread rolling machine hydraulic thread rolling machine spline rolling machine

Model: ZP28-65
Max rolling diameter: 80mm
Max rolling thread pitch: 8mm
Rolling pressure: 250kn
Description: The equipment adapt to all kinds of materials, such as carbon steel, alloy steel and non-ferrous metals.These material extension rate is greater than 10% and the compressive strength is less than 100kgf/m²


China 3 roll thread rolling machine hydraulic thread rolling machine spline rolling machine

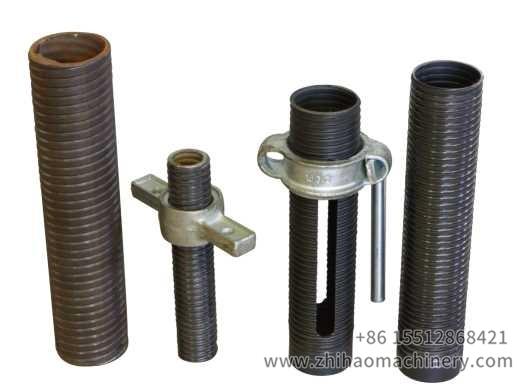

The thread rolling machine is a kind of multi-function cold extrusion forming machine, and the spinning function can process the thread, straight grain and twill rolling in the cold state within the range of the rolling pressure. Rolling of straight teeth, oblique teeth and helical spline gear; Straightening, reducing, rolling and all kinds of forming rolling.

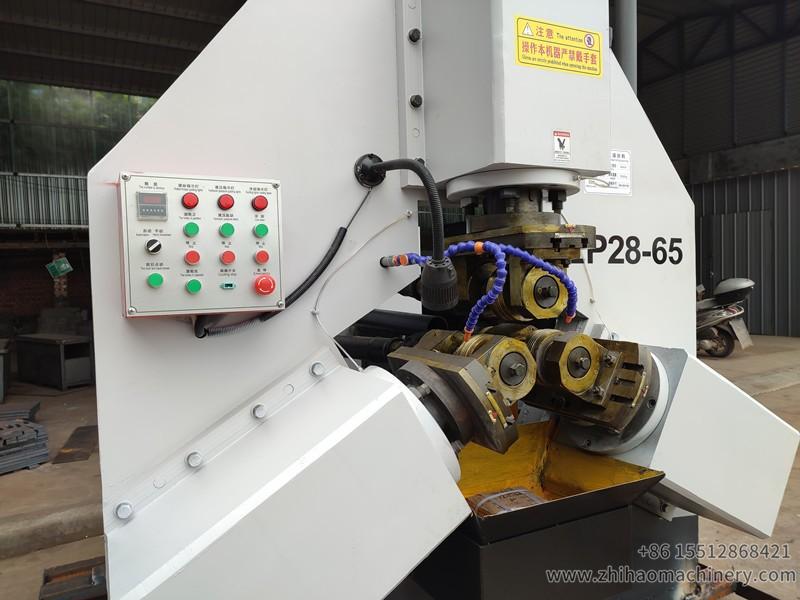

The machine has a safe and reliable electrical - hydraulic execution and control system that allows each working cycle to be selected in three ways: manual, semi-automatic and automatic

china 3 roll thread rolling machine, zhihaomachinery

working video: https://youtu.be/F6vGe4BclfM

Technical parameter:

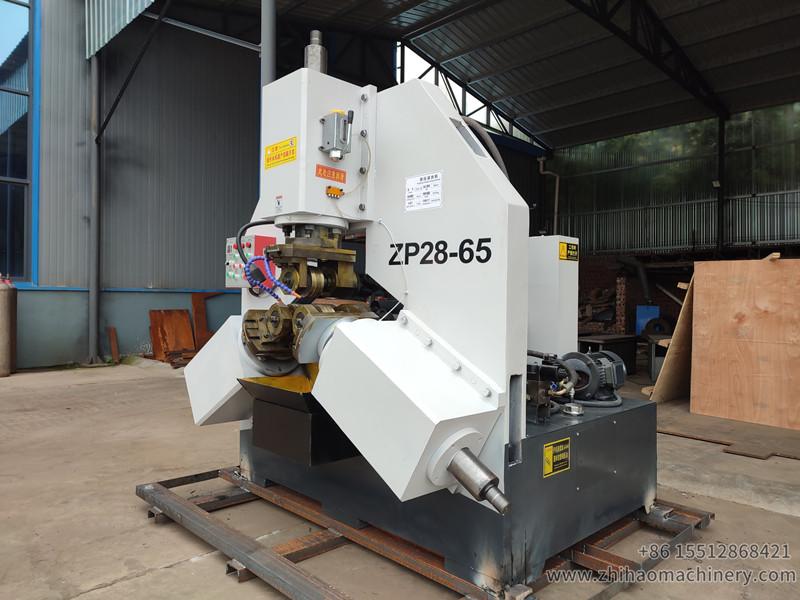

Model ZP28-65 automatic pipe thread rolling machine

Rolling thread range Diameter 80mm

Max thread pitch   8mm

Spindle angle ±6°

Max rolling pressure 250kn

Spindle RPM 22/28/35/45/56/70rpm

Roller size range Outside diameter 180mm

Hole 54mm

Max width 100mm

Rolling time 0.1-99.9s

Rest time 0.1-99.9ss

Spindle drive power 11kw

Hydraulic transmission power 3.0kw

Dimension 1800*2200*1800mm

Weight 3100kg

Packing and shipping:

hydraulic thread rolling machine, zhihaomachinery

spline rolling machine, zhihaomachinery

thread rolling machine price, zhihaomachinery

thread rolling machine for sale, zhihaomachinery

If have any questions, pls contact us freely.
