ZP28-40 auto parts thread making machine

Model: ZP28-40 three rollers type pipe thread rolling machine
Max rolling diameter: 50mm
Max rolling thread pitch: 6mm
Max rolling pressure: 120kn
Dimension: 1400*1400*1500mm
Hydraulic power: 1.5kw
Spindle drive power: 4.0kw
Weight: 1350kg


ZP28-40 auto parts thread making machine

Main Features

1.It can make the thead form of good quality.And it It has the high precision.

2.It can be used to process scerw and rebar. The rebar processed by the pipe thread rolling machine has the good overall mechanical. It can make the tensile strength increased by 20%-30%, the fatigue strength increased by 40%-60%, corrosion resistance increased by 50%-200%. Mechanical properties of rebar connector reached and more than international standards.

3.It works safe and reliable. It can works all day long, and can save steel and energy.

4.It adopt innovative design and advanced technology, alos it has the high precision and easy to operate.

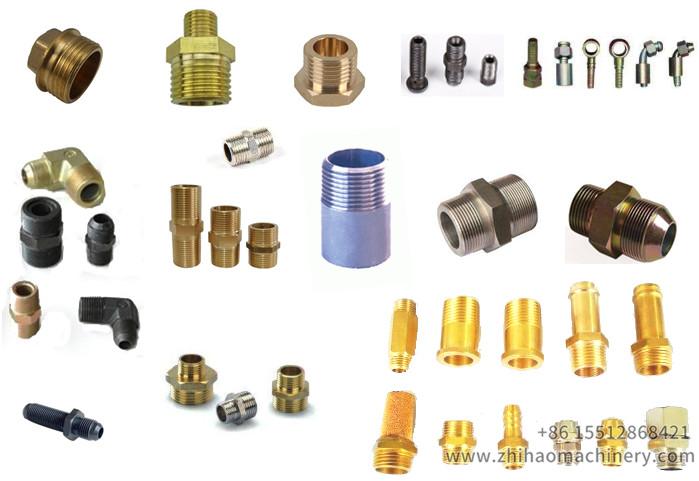

auto parts thread making machine, zhihaomachinery

auto parts thread rolling machine, zhihaomachinery

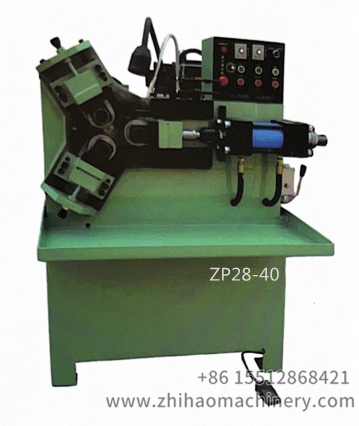

Model ZP28-40 3 rollers tube thread rolling machine

Rolling thread range Diameter 50mm

Max thread pitch 6mm

Spindle angle ±5°

Max rolling pressure 120kn

Spindle RPM CVT

Roller size range Outside diameter 65-140mm

Hole 35/45mm

Max width 100mm

Rolling time 0.1-99.9s

Rest time 0.1-99.9s

Spindle drive power 4.0kw

Hydraulic transmission power 1.5kw

Dimension 1400*1400*1500mm

Weight 1350kg

If have more questions for auto parts thread making machine, pls contact zhihaomachinery freely.
