Hydraulic 3 axis thread rolling machine in Turkey

Model: ZP28-65 hydraulic 3 axis thread rolling machine in Turkey
Max rolling diameter: 80mm
Max rolling thread pitch: 8mm
Rolling pressure: 250kn
Description: The equipment adapt to all kinds of materials, such as carbon steel, alloy steel and non-ferrous metals.These material extension rate is greater than 10% and the compressive strength is less than 100kgf/m²


Hydraulic 3 axis thread rolling machine in Turkey

   technical parameter, zhihaomachinery    technical parameter, zhihaomachinery

pipe thread rolling machine, zhihaomachinery

1.Three spindle of the pipe thread rolling machine rotates synchronously in the same direction. Right spindle feed motion in the horizontal direction under the rolling driveThree rolling wheels make the work as required and other thread shape by rolling.

2.This Automatic Scaffolding Machine pipe thread rolling machine is mainly composed of an organism, rotating box, fixed spindle seat , a movable spindle seat, hydraulic system and electrical parts etc.

3.The fixed seat and the movable seat main function is installing the screw rolling wheel and adjusting the rolling wheel tooth.

4.This automatic pipe thread rolling machine is a hydraulic power system, it is mainly to make the active spindle seat to feed and return .

5.The two spindle seat adjust center respectively. Angle of table axis can be adjusted in the plus or minus 3 degrees. Each shaft to feed the workpiece can be determined according to the parameters of workpiece and mechanical properties of materials.

photos, zhihaomachinery

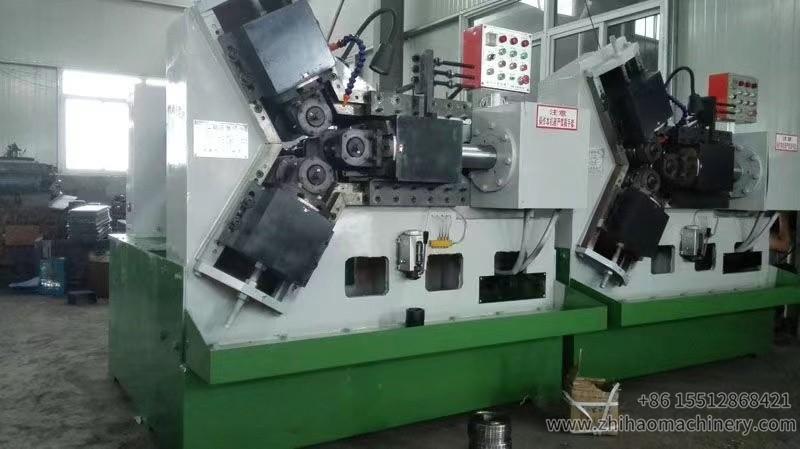

3 axis thread rolling machine, zhihaomachinery

turkey thread rolling machine, zhihaomachinery

thread rolling machine delivery, zhihaomachinery

thread rolling machine delivery, zhihaomachinery

zhihaomachineryscrew thread rolling machine, zhihaomachinery  zhihao machinery co.,ltd ;thread rolling machine delivery, zhihaomachinery zhihao machinery co.,ltdzhihaomachinery CE certificate zhihao machinery co.,ltd

We have good team of technical, sales and development with skifull experience

Our machines were widely exported to many countries around world

Our machines were with CE certification

We can specially design the machine according to your drawing or sample

The fully service be provided from pre-sales to after-sales. 24 hours on line to solve your questions at any time

Ten years manufacturing and export experience in construction machinery fiel

Strong development skill in debelopping special machine according to customers requirement

We have strict quality-control system

We have mature pre-sale and after-sale service system

ODM and OEM service available

zhihao machinery co.,ltd

zhihaomachinery contact

Email: sales@zhihaomachinery.com

Whatsapp: +8615512868421


1. What is the price of threading rollers?

Re: Kindly please let me know your rod material and the detailed size, such as diameter and thread pitch, etc., so that we can check for you accordingly.

2. We have different rod diameter from 20-80mm, how to choose threading rollers?

Re: The threading roller will be suitable for various length and diameter, but for different thread pitch, it should be changed accordingly.

3. How to operate the hydraulic 3 axis thread rolling machine, assuming it has auto cycle and foot pedal?

Re: The thread rolling machine is equipped with button control panel and foot pedal, so the working cycle can be exchanged as automatic work or inching.

4. What is the capacity of the hydrualic 3 axis thread rolling machine and what is the serve life?

Re: The speed of thread rolling machine is about 1m/min.

Generally speaking, the roller can be used for more than 60000 meters long.

Also it is relevant to the material hardness and your operation.

5. Do you have customers in our country?

We are the leader thread rolling machine supplier in China, also we have customers worldwide, such as America, Argentina, Brazil, Belarus, Bangladesh, Germany, Israel, India, and Italy, etc.
