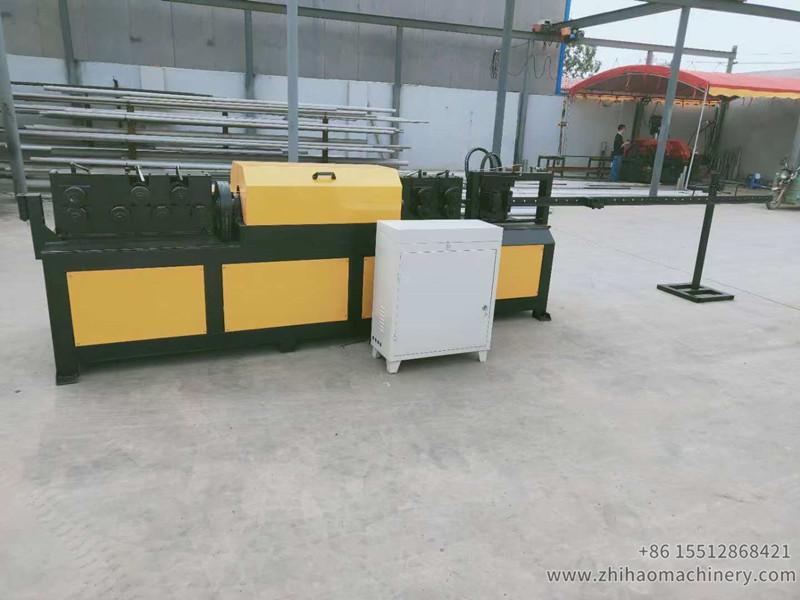

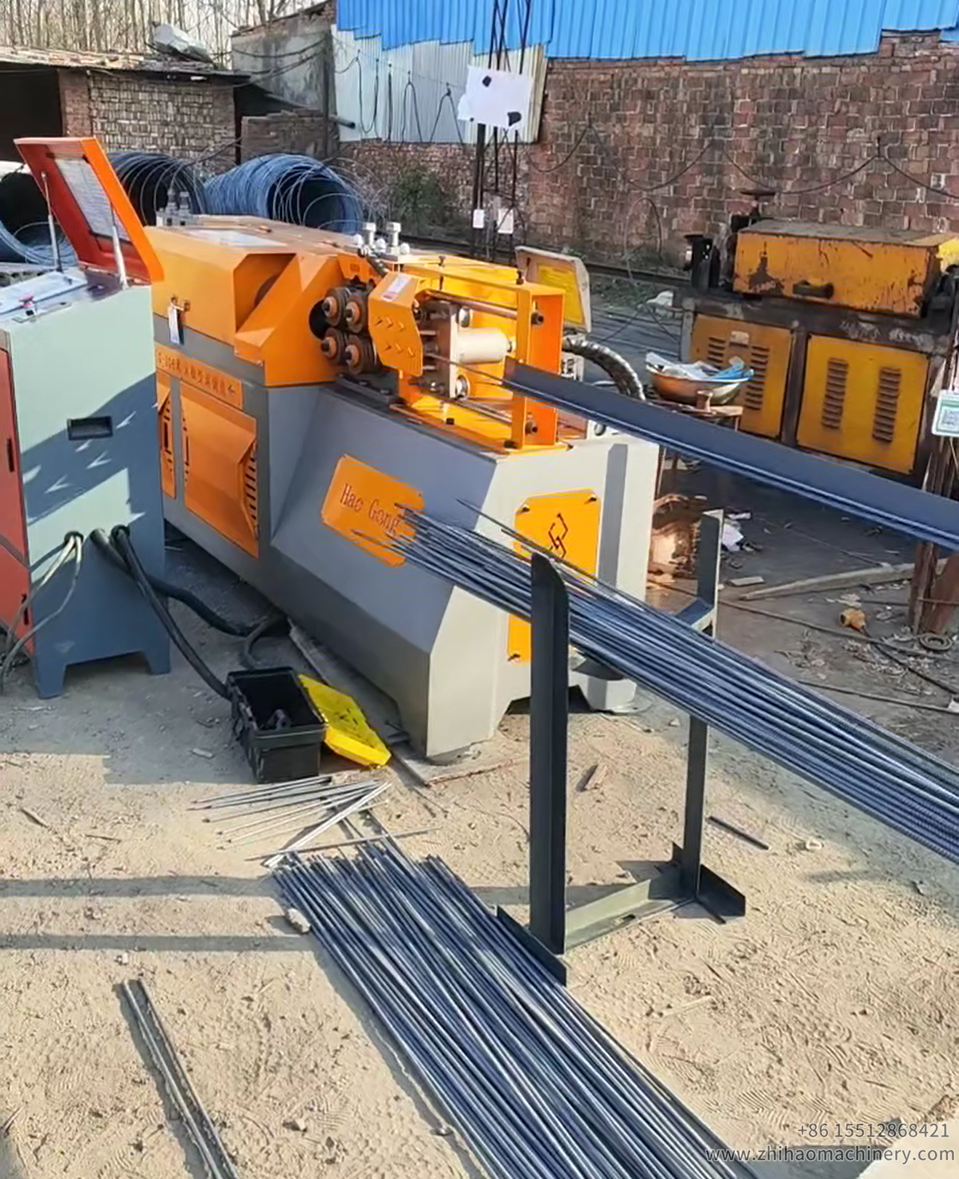

Automatic rebar straightening and cutting machine

GT10-22 automatic rebar straightening and cutting machine, has the functions of presetting , automatic counting and stopping , steel guiding. Compared with other manufacturer; similar products, the straightening frame of GT10-22 adopts the hot rolling process, which has the features of beautiful appearance, strong rigidity, good straightening effect. Hydraulic system is simple and reliable, no oil leakage.

Technical Parameter:

Model GT10-22

Processing diameter range 10-22mm round bar / 10-20mm rebar

Straightening motor 11kw

Cutting motor 7.5kw

Working speed 1-30m/min,adjustable

Rated voltage 380V,50HZ

Weight of machine 680kg

Size of machine 2850*950*1120mm / 500*300*780mm
