Automatic rebar stirrup bending machine for 6-14mm ribbed wire

Introduce of automatic rebar stirrup bending machine

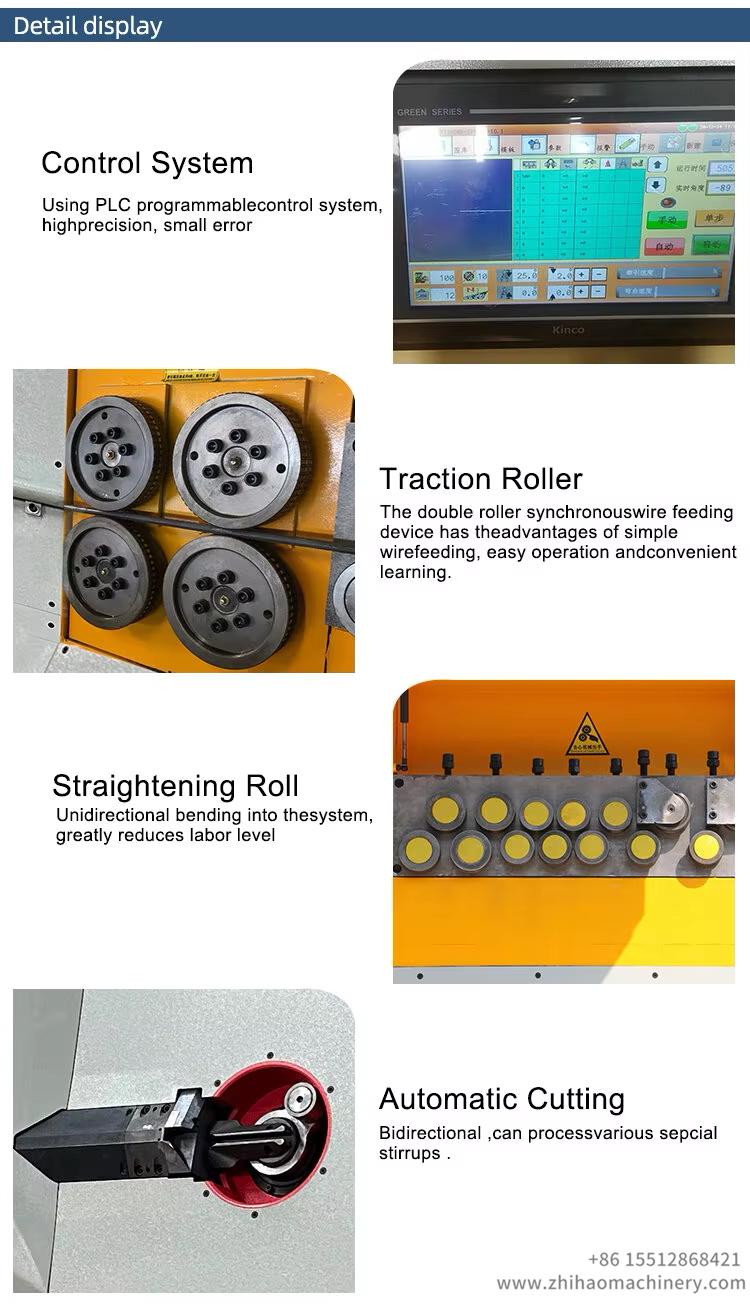

1 This equipment adopts servo controlling system;

2 Automatically accomplish the functions of rebar;s feeding, straighten, bending and cutting etc;

3 Max bending diameter of steel bar is 12mm; max bending diameter of rebar is 10mm.

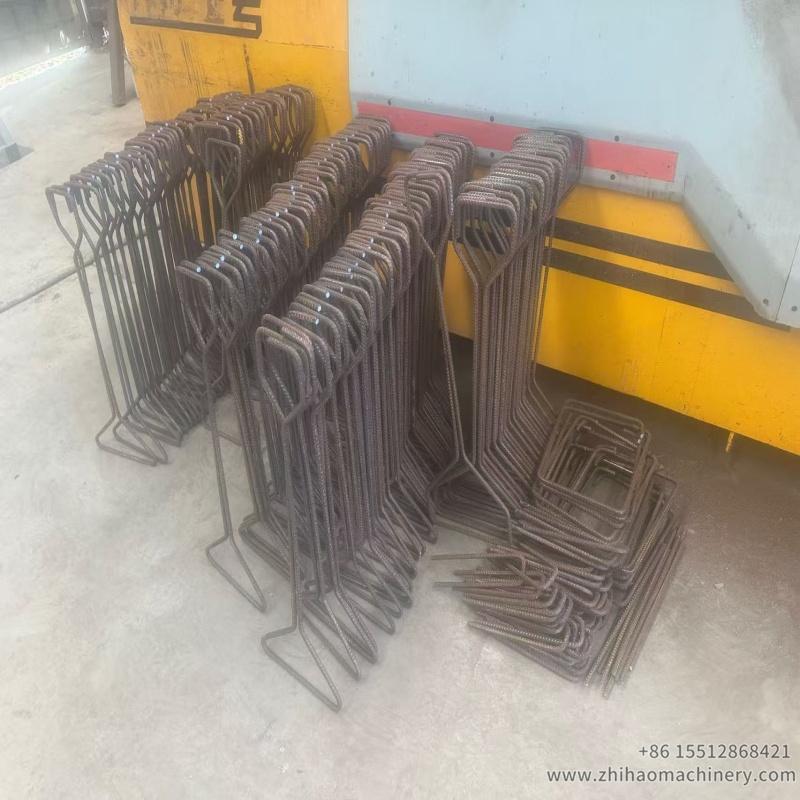

4 Continuously bend various stirrup of plane figure;

5 Bidirectional bending function,rebar stirrup bending machine can make special-shaped;

6 High efficiency and accurate processing precision;

7 Double roller synchronization with a wire feed system,easy to use and more convenient to study.

Technical parameter:

Single wire bending (mm)

4-12 mm Round bar, 4-10mm Deformed bar

Double wire bending (mm)

4-10 mm,Round bar, 4-8 Deformed bar

Max bending angle (°) ±180

Max traction speed (m/min) 75

Max bending speed (°/s) 1000

Angle precision(°) ±1

Cut length precision(mm) ±1

Average power consumption (kw/h) 5

Total power (kw) 20.6(not include air compressor )

Dimension(mm)(l*w*h) 3980*1000*1900

Weight(kg) 1550

Productivity (Double wire)（pcs/h)

2200-2400(For example 200*200mm square )

Bending direction Double direction

Additional functions Two end bending

Packing and delivery:

If have any interesting for stirrup bending machine, pls contact zhihaomachinery freely.

Mob/whatsapp: +8615512868421

Email: sales@zhihaomachinery.com
