tmt bar stirrup bending machine

Model: KT2 TMT bar stirrup bending machine
Max single bending diameter: 12mm
Max double bending diameter: 8mm
Total power: 20kw
Description: 1. The automatic stirrup bending machine is used for bending .
2. The automatic stirrup bending machine uses high-quality, fast, energy-saving steel construction process, ensuring efficiency and effective.
3. But also provides the premise for the low price and high quality.

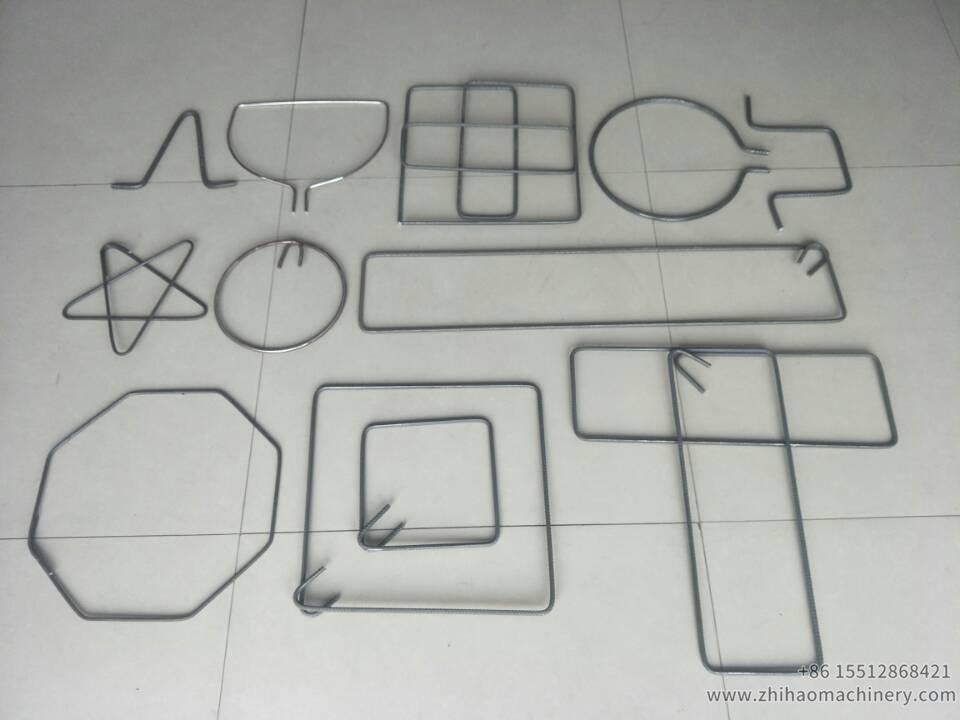

4. widly variety.can produce more than 100 different types wokpiece


tmt bar stirrup bending machine

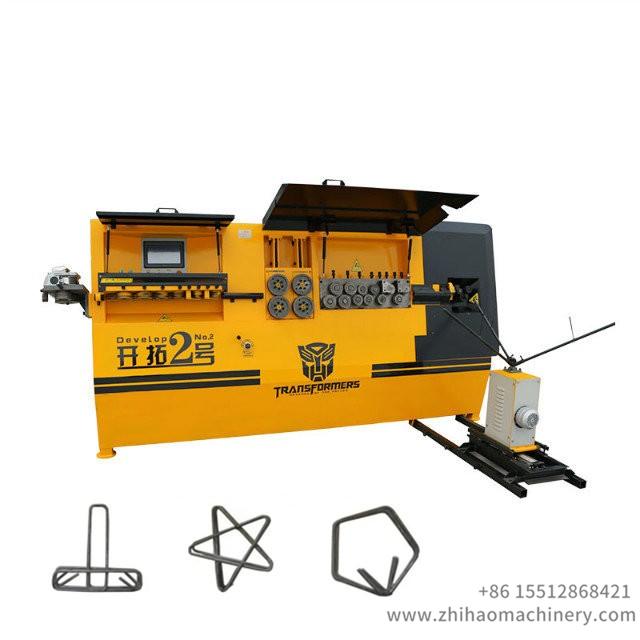

Automatic stirrup bending machine Develop No.2

Automatic stirrup bending machine is composed of PLC control system, traction system, straightening system, shearing system, etc. It can automatically complete traction, straightening, sizing, cutting, etc.

The control system adopts domestic and foreign mature control systems with high reliability and has fault identification and alarm functions;

The machine is composed of two sets of horizontal and vertical automatically adjustable straightening wheels, combined with 4 traction wheels, driven by a servo motor, to ensure the best accuracy of the straightening of the steel bars;

The bending is driven by servo motor, and the bending part can be extended and contracted, saving raw materials to the greatest extent.

Compared with the traditional process, the CNC stirrup bending machine is more efficient, occupies less space, and saves raw materials. One machine can replace 10-15 manual labor, widely used in construction site.

tmt bar stirrup bending machine, zhihaomachinery

Model KT2 technical parameter for tmt bar stirrup bending machine:

Single wire Round steel 4-12mm

Ribbed bar 4-10mm

Double wire Round steel 4-8mm

Ribbed steel bar 4-8mm

Max bending angle ±180°

Center pin diameter 16/18/20

Max towing speed 60m/min

Max bending speed 800°/sec

Dimension 3200*1000*1700mm

Machine color Yellow (customized)

Process piece ≤ 2

Air system pressure ≥ 0.8mpa

Total power 20kw

Work temperature -5℃---40℃

Length accuracy ±1mm

Angle accuracy ±1°

Average power 5kw/h

Weight 1350kg

More details of tmt bar stirrup bending machine, pls contact us freely!
