Model: Z28-360 threading machine price,anchor foundation bolts thread rolling machine
Max rolling diameter: 100mm
Max rolling thread pitch: 10mm
Max rolling pressure: 450kn
Brand: ZHIHAO
Description: Z28-360 metal steel hread rolling machines are used to produce screws, bolts, and studs. Thread rolling is a cold-form forming operation used to form external screw threads in a blank. During the thread rolling process, a hard die is pressed onto a rotating workpiece (also called a blank) that is attached to the tie rod thread rolling machine.
threading machine price,anchor foundation bolts thread rolling machine
HIGH PRECISION
HIGH STABILITY
SIMPLE CONTROL
EASY MAINTENANCE
Technical parameter of anchor foundation bolts thread rolling machine:
Items Z28-360
Rolling thread range Diameter 100mm
Max thread pitch 10mm
Spindle angle ±10°
Max rolling pressure 450kn
Spindle RPM CVT
Roller size range Outside diameter 230mm
Hole 75/85mm
Max width 200mm
Rolling time 0.1-99.9s
Rest time 0.1-99.9ss
Spindle drive power 15kw
Hydraulic transmission power 11kw
Dimension 2150*1850*1550mm
Weight 3600kg

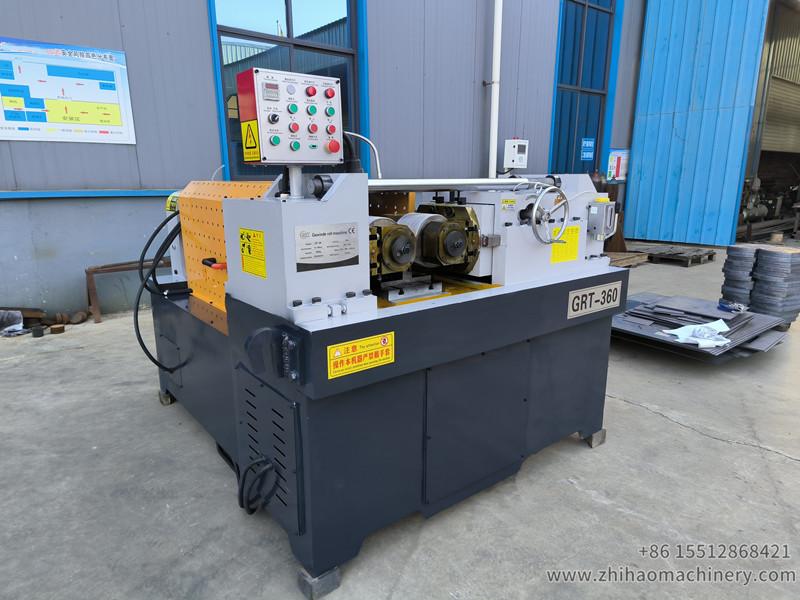

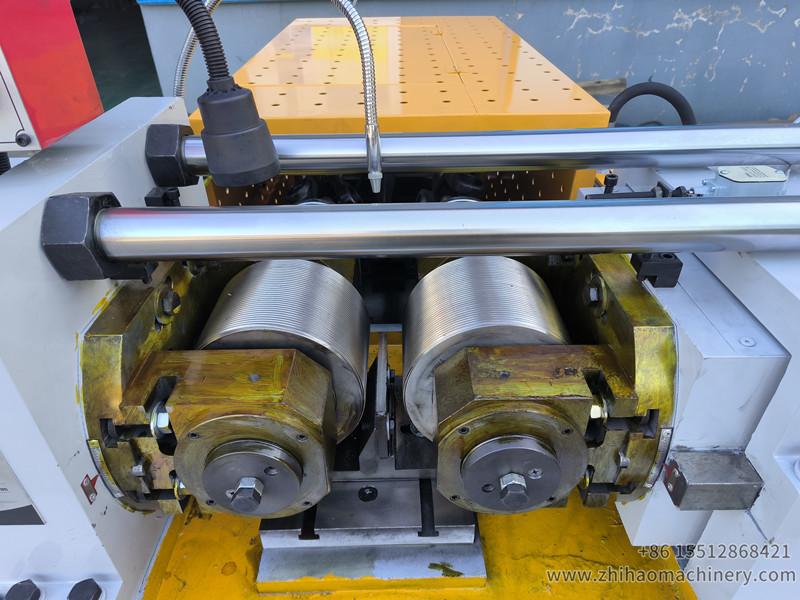

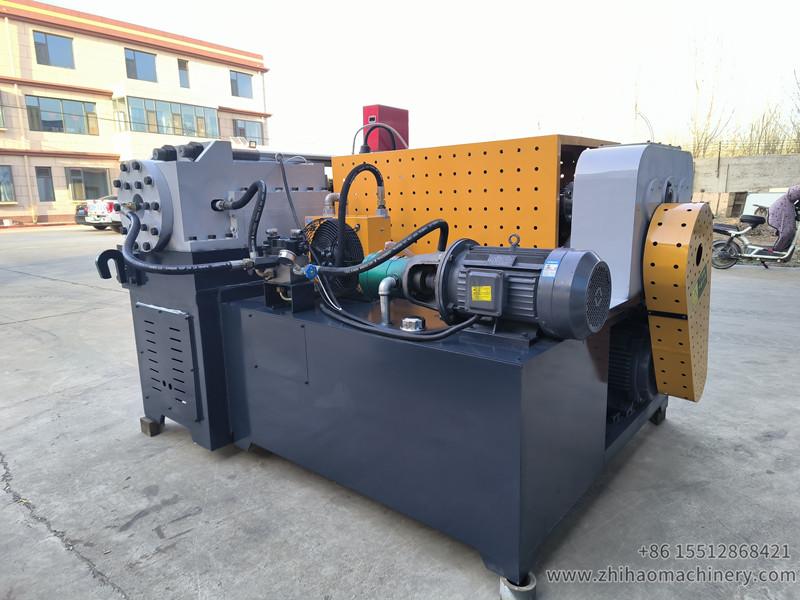

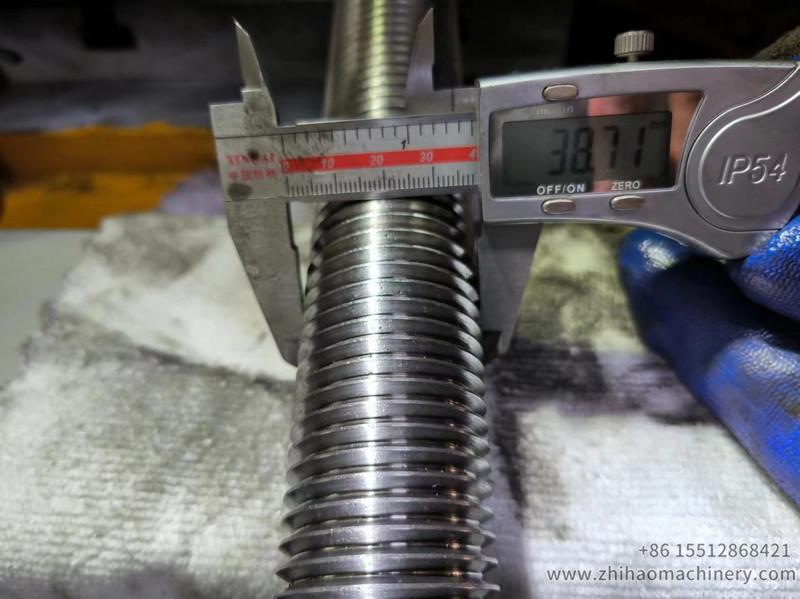

Photos for anchor foundation bolts thread rolling machine:
Any more questions of anchor foundation bolts thread rolling machine, pls contact us freely.
