High efficient automatic CNC stirrup bending machine for construction

High efficient automatic CNC stirrup bending machine for construction

1. Develop No.3 CNC automatic stirrup bending machine can bend 4-12mm steel bar to any shapes. The device is widely used in the construction industry, large steel processing plants and other fields. In addition, the production equipment is more perfect after several improved, it can meet the actual needs of the steel processing and production.

2. Composed of PLC control system, traction system, straightening system, shearing system, etc. It can automatically complete traction, straightening, sizing, cutting, etc.

3. The control system adopts domestic and foreign mature control systems with high reliability and has fault identification and alarm functions;

4. The machine is composed of two sets of horizontal and vertical automatically adjustable straightening wheels, combined with 4 traction wheels, driven by a servo motor, to ensure the best accuracy of the straightening of the steel bars; and the bending part can be extended and contracted, saving raw materials to the greatest extent.

5. Compared with the traditional process, the CNC stirrup bending machine is more efficient, occupies

less space, and saves raw materials. One machine can replace 10-15 manual labor.

Technical parameter for NEW AUTOMATIC CNC STIRRUP BENDING MACHINE:

Model KT3 double bending way

Single wire Straight rebar 14mm Ribbed steel bar 5-12mm

Double wire 5-10mm

Max bending angle ±180°

Max towing speed 75m/min

Max bending speed 1000°/sec

Dimension 3750*1200*2270mm

Machine color Yellow (customized)

Process piece ≤ 2

Total power 32kw

Work temperature -5℃---40℃

Length accuracy ±1mm

Angle accuracy ±1°

Average power 5kw/h  Weight 2200kg

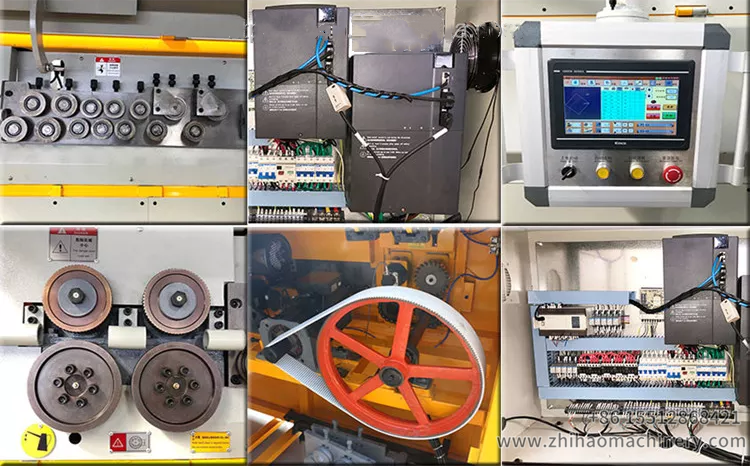

Detail display:

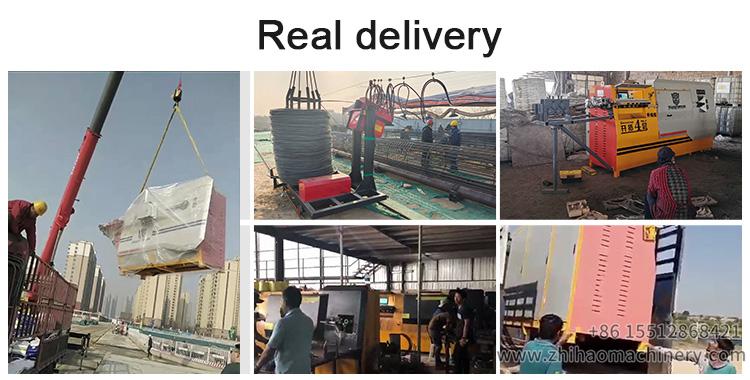

Packing and delivery:

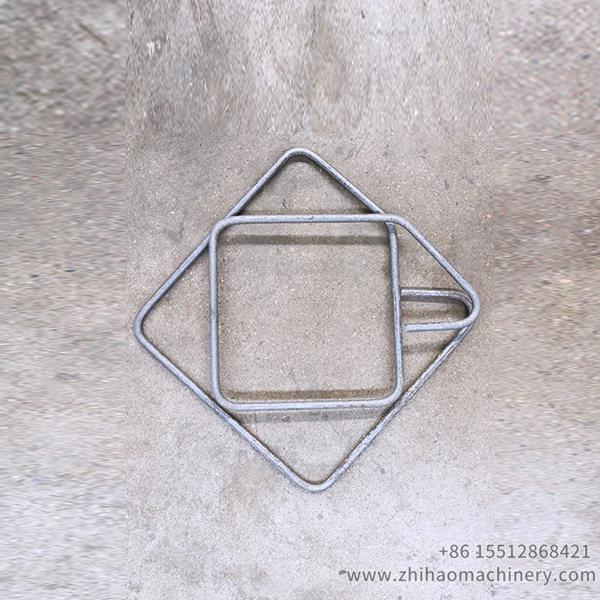

Finished stirrups:

If have any interesting, pls contact zhihaomachinery freely.

Email: sales@zhihaomachinery.com

Mob/whatsapp/wechat: +8615512868421
