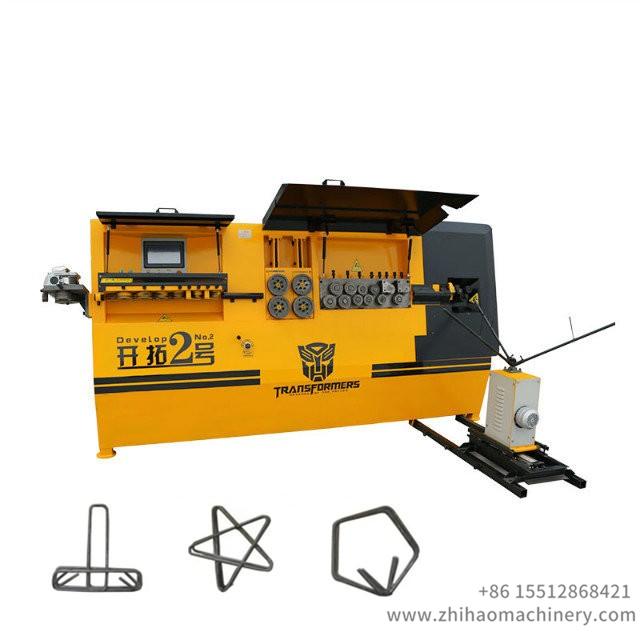

Sold well all over the country CNC control rebar stirrup bending machine, automatic rebar bending machine

Model: KT2 cnc stirrup bender
Max single bending diameter: 12mm
Max double bending diameter: 8mm
Total power: 20kw
Brand: ZHIHAO
Description: 1. The automatic stirrup bending machine is used for bending .
2. The automatic stirrup bending machine uses high-quality, fast, energy-saving steel construction process, ensuring efficiency and effective.
3. But also provides the premise for the low price and high quality.
4. widly variety.can produce more than 100 different types wokpiece

EMAIL

Sold well all over the country CNC control rebar stirrup bending machine, automatic rebar bending machine


Advantages:

1 This equipment adopts servo controlling system;

2 Automatically accomplish the functions of rebar feeding, straighten, bending and cutting etc;

3 Max bending diameter of round bar is 12mm;

4 Continuously bend various stirrup of plane figure;

5 Bidirectional bending function,rebar stirrup bending machine can make special-shaped;

6 High efficiency and accurate processing precision;

7 Double roller synchronization with a wire feed system,easy to use and more convenient to study.



Model KT2 technical parameter:

Single wire Round steel 4-12mm

Ribbed bar 4-10mm

Double wire Round steel 4-8mm

Ribbed steel bar 4-8mm

Max bending angle ±180°

Center pin diameter 16/18/20

Max towing speed 60m/min

Max bending speed 800°/sec

Dimension 3200*1000*1700mm

Machine color Yellow (customized)

Process piece ≤ 2

Air system pressure ≥ 0.8mpa

Total power 20kw

Work temperature -5℃---40℃

Length accuracy ±1mm

Angle accuracy ±1°

Average power 5kw/h

Weight 1350kg

automatic rebar bending machine, zhihaomachineryrebar stirrup bending machine, zhihaomachinery

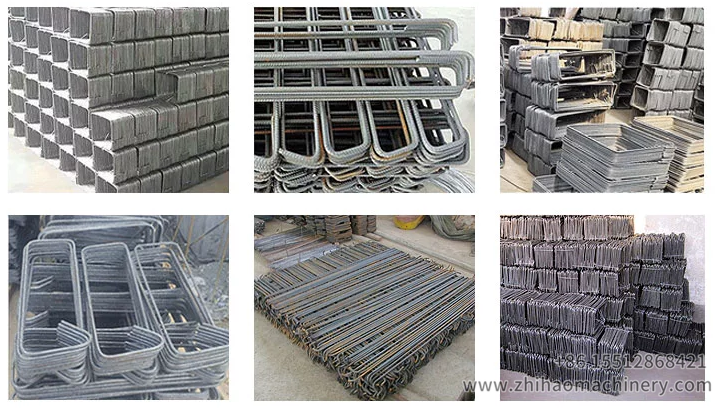

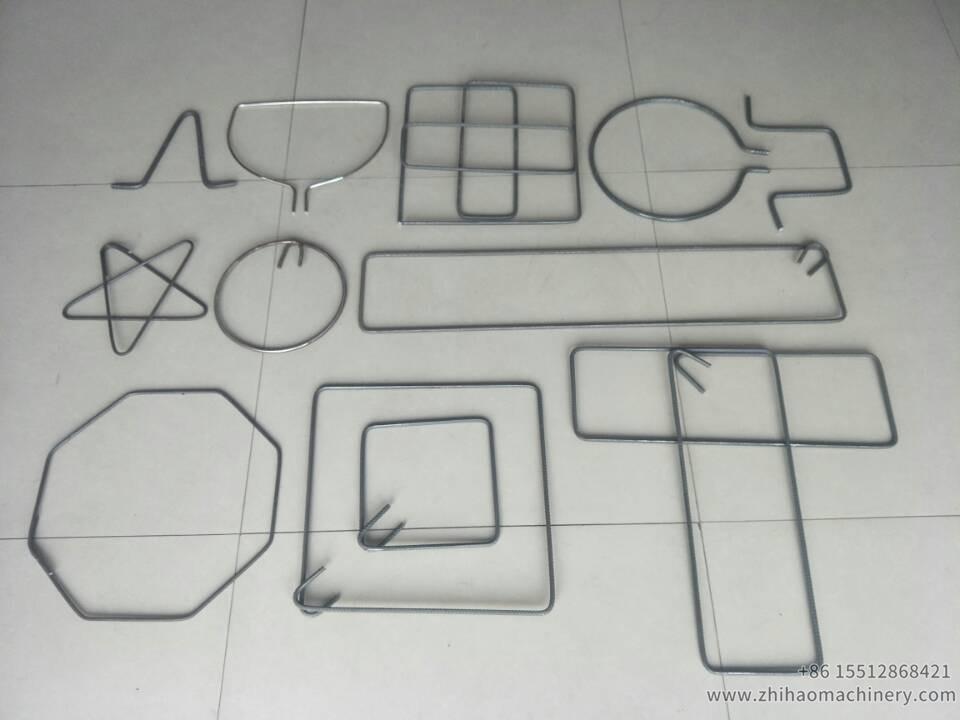

Finished workpieces of automatic rebar bending machine:

cnc stirrup bender, zhihaomachinery


More details of automatic rebar bending machine, pls contact us freely!
