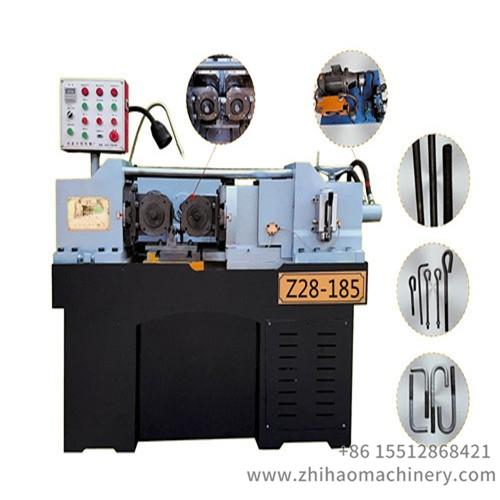

Z28-150 long rod thread rolling machine

Model: long rod thread rolling machine
Max rolling diameter: 60mm
Max rolling thread pitch: 6mm
Max rolling pressure: 250kn
Description: Taiwan automatic bolt threading machine with Reliable quality and high efficiency Compact, reansonable structure, strong processing ability without adjustment and wrong connetction. Avoid adjusting disoder thread and convenient adjustment.


Long rod thread rolling machine

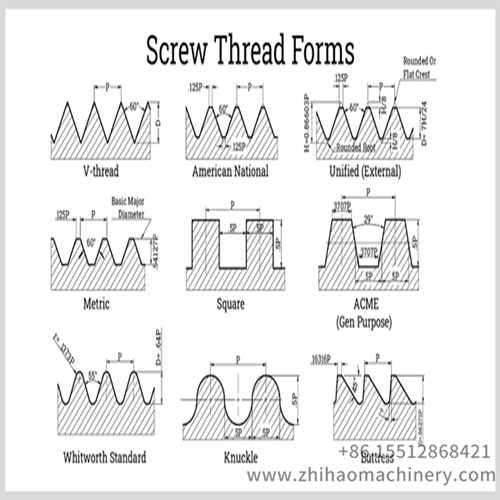

The Z28-150 / 185 long rod thread rolling machine is mainly used for processing precision standard parts of thread and high strength, including regular thread, trapezoid thread and modulax thread. The objective material to be processed inchcde carbon steel, alloy steel and nonferrous metal with elongation over 10% and tensile strength less than 100kgf/mm²

1.Two spindle of the machine rotates synchronously in the same direction .Right spindle feed motion in the horizontal direction under the rolling drive.Two rolling wheels make the work as required and other thread shape by rolling.

2.This machine is mainly composed of an organism, rotating box, fixed spindle seat , a movable spindle seat, hydraulic system and electrical parts etc.

3.The fixed seat and the movable seat main function is installing the screw rolling wheel and adjusting the rolling wheel tooth.

4.This machine is a hydraulic power system, it is mainly to make the active spindle seat to feed and return

5.The two spindle seat adjust center respectively.Angle of table axis can be adjusted in the plus or minus 3 degrees.Each shaft to feed the workpiece can be determined according to the parameters of workpiece and mechanical properties of materials.

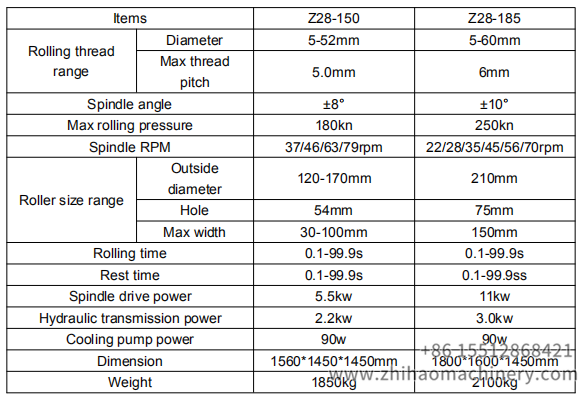

Technical parameter of long rod thread rolling machine:

thread rolling machine parameter, zhihaomachinery

long rod thread rolling machine, zhihaomachinery

Service of long rod thread rolling machine:

Professional and patient consulting service to help you find the suitable solution.

Further negotiation about the technical details, machine configuration, price basis, payment term and delivery time.

Powerful control of the machine production schedule and quality, and keep you posted about details in time.

Free training and accommodation in our plant during machine inspection. Or photos and video of the machine and package for your confirmation before shipment.

Quick and safe shipment as per your requirement including the booking ,container loading, and shipping documents.

For technical support, we can help you online by email and phone, also we can send technicians to your site if necessary.

For the spare parts, we will supply the parts for free during one year guarantee period, also the parts supplying at original cost after that.

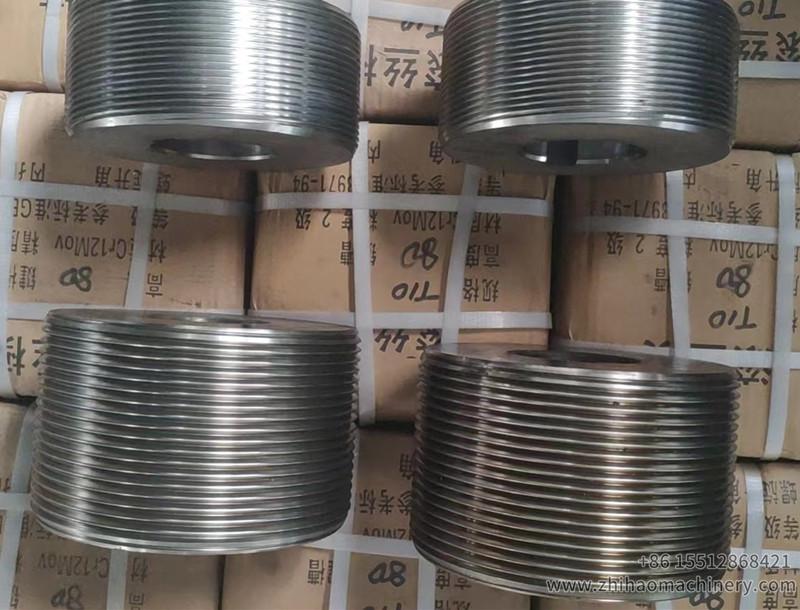

Free thread rolling dies of long rod thread rolling machine:

iron rod thread rolling machine, zhihaomachinery

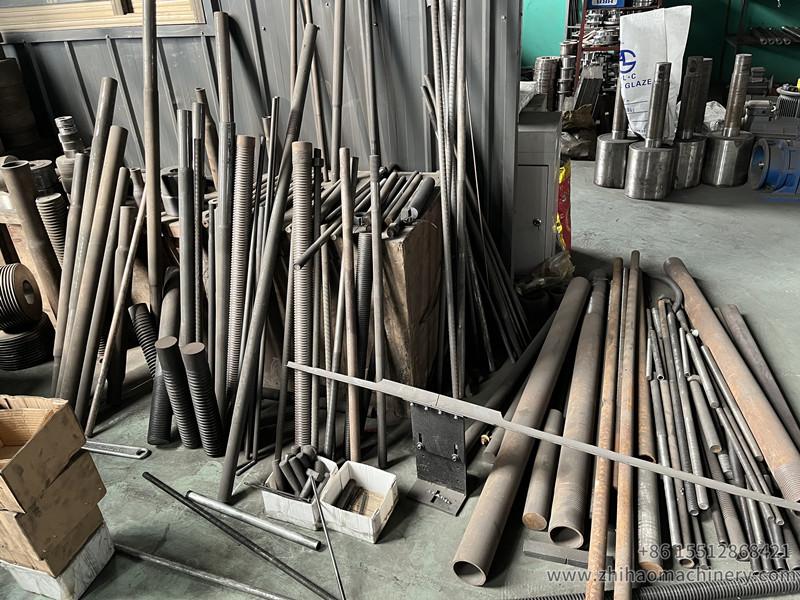

Testing workpieces for customer:

two roll thread rolling machine, zhihaomachinery

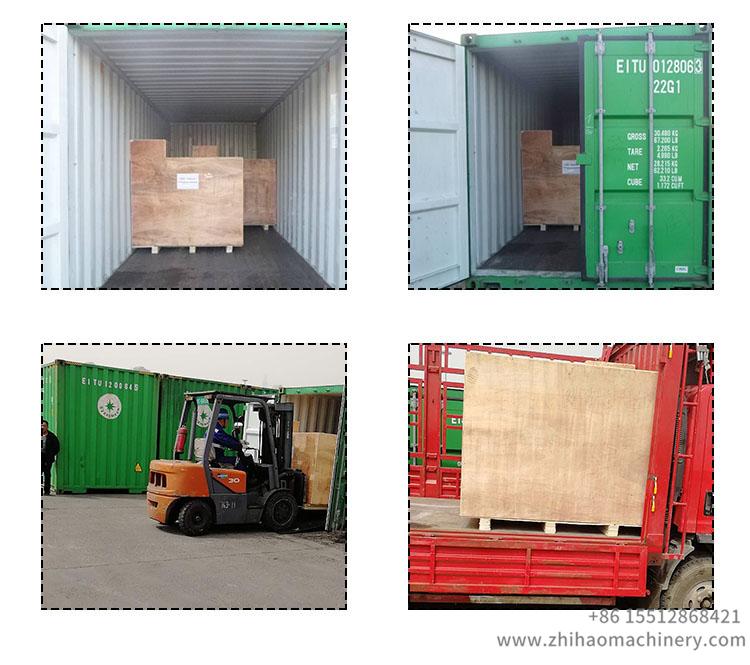

Packing and delivery for long rod thread rolling machine:

automatic thread rolling machine, zhihaomachinery

If have any interesting for long rod thread rolling machine, pls contact us freely.
