Hydraulic shrinking machine bars diameter reducer for Morocco

Hydraulic shrinking machine bars diameter reducer for Morocco

Model: SJ-25 hydraulic shrinking machine bars diameter reducer for Morocco
Brand: ZHIHAO
Reducing range:12-24mm
Reducing extent: ≤2.5mm
Motor power: 11kw
Reducing length: 250mm
Extension length after reduce: 10%-15%
Capacity: 5-8pcs/min
Dimension: 1650*1600*1600mm
Weight: 1400kg

Hydraulic shrinking machine bars diameter reducer for Morocco

Technical parameter:

Model: SJ-25 steel bar stud bolt diameter reducing machine

Brand: ZHIHAO

Reducing range:12-24mm

Reducing extent: ≤2.5mm

Motor power: 11kw

Reducing length: 250mm

Extension length after reduce: 10%-15%

Capacity: 5-8pcs/min

Dimension: 1650*1600*1600mm

Weight: 1400kg

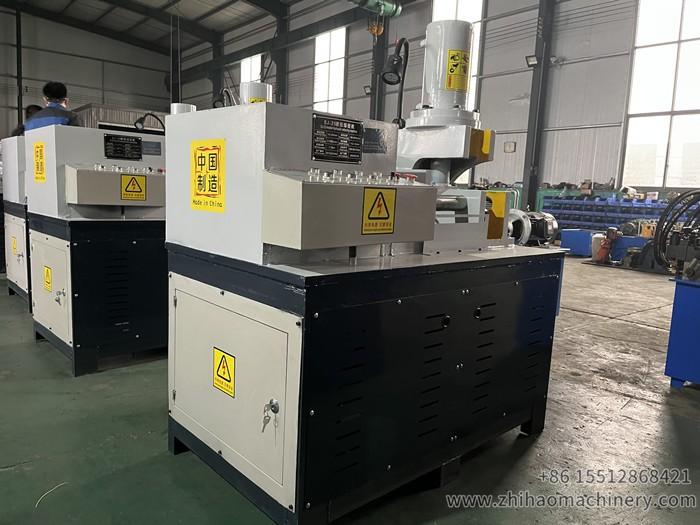

This hydraulic shrinking machine is a chipless maching equipment, has the advantages of high production efficiency, easy operation, saving raw materials, stable quality, it is the round steel shall be reduced diameter portion into a special mould by cold pressing, use hydraulic pressure compressing section steel density can be improved greatly, so as to improve the tensile strength of material.While the plasticity, impact toughness of malpractice. This machine is suitable for 8mm-22mm, low power, low cost, high efficiency.

diameter reducer, zhihaomachinery
