stirrup hook bar bender for US

Model: KT5 stirrup hook bar bender for US
Max single bending diameter: 14mm for straight bar, 12mm for round coil bar
Max double bending diameter: 10mm
Total power: 32kw
Dimension: 3850*1200*2200mm
Weight: 2200kg
Average power: 5kw/h


stirrup hook bar bender for US

The automatic bending machine adopts CNC servo control system can automatically complete the straightening, sizing, bending, cutting, and other processes.The machine can bend maximum diameter is 14mm and can continuously produce any plane shape products.The device is widely used in the construction industry, large steel processing plants and other fields. In addition, the production equipment is more perfect after several improved, it can meet the actual needs of the steel processing and production.

bar bender, zhihaomachinery

Model KT5 stirrup hook bar bender

Single wire Straight rebar 14mm Ribbed steel bar 5-12mm

Double wire 5-10mm

Max bending angle ±180°

Max towing speed 75m/min

Max bending speed 1000°/sec

Dimension 3850*1200*2200mm

Machine color Yellow (customized)

Process piece ≤ 2

Total power 32kw

Work temperature -5℃---40℃

Length accuracy ±1mm

Angle accuracy ±1°

Average power 5kw/h

Weight 2500kg

Long platform 3460*900*2000mm


1) automaticly straightening

2) automaticly measure

3) automaticly bending (to different shapes used in construction projects)

4) automaticly cutting

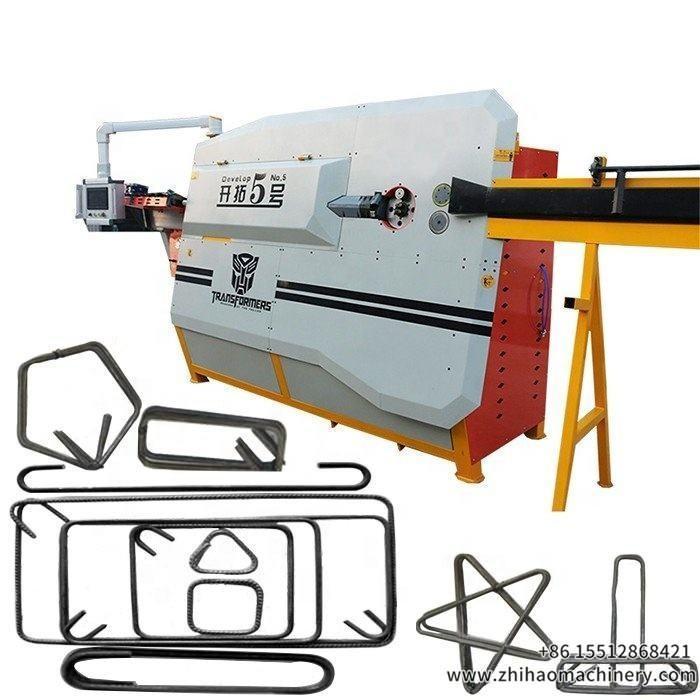

Detailed photos of stirrup hook bar bender:

hook bar bender, zhihaomachinery

More details of stirrup hook bar bender, pls contact zhihaomachinery freely!
