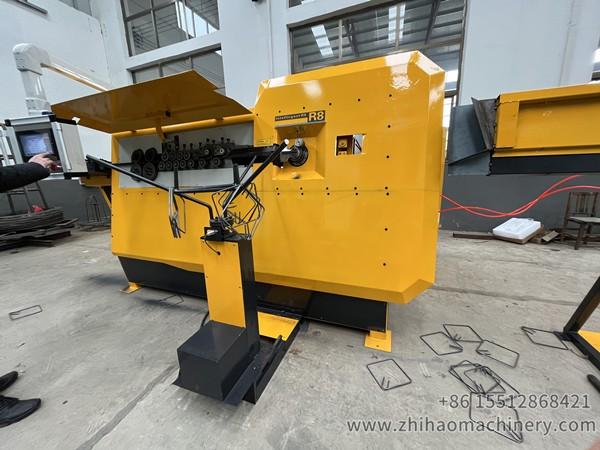

R8 automatic rod bending machine

Model: R8 automatic rod bending machine
Max single bending diameter: 12mm
Max double bending diameter: 10mm
Total power: 23kw
Brand: ZHIHAO
Dimension: 4*2.3*1.5m
Weight: 2200kg

R8 automatic rod bending machine

working video: https://youtu.be/Fm9w7sRWjPw

• Automatic wire feeding system ( CNC );

• Split, multi-blade design (patented) to reduce consumption costs;

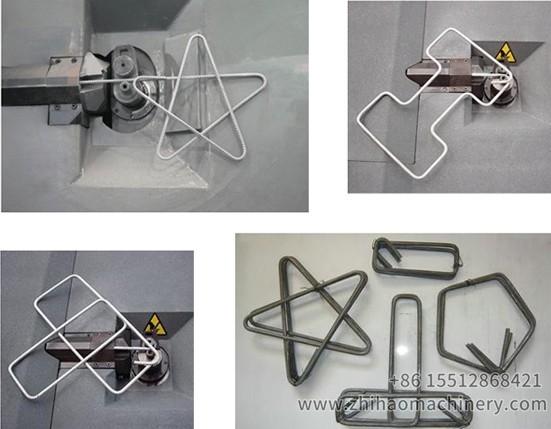

• Large storage capacity can save more than 500 processing geometric graphics, high degree automation;

• High power feeding motor to ensure bending bar accuracy;

• High quality special material and high treatment to make straightening wheels, traction wheels, the metering wheel, longer life with lower operating costs;

Technical parameter for automatic rod bending machine R8:

Model: R8 double direction way bending

Single processing capacity: 4-12mm

Double processing capacity: 4-10mm

Max Bending Angle: 180°

The angle of the degree of accuracy: ±1°

Total power: 23kw

Servo –motor: 11kw

Bending motor: 5.5kw

Cutting and air pump power: 4kw

Weight:2200kg

Dimensions: 4*2.3*1.5m
