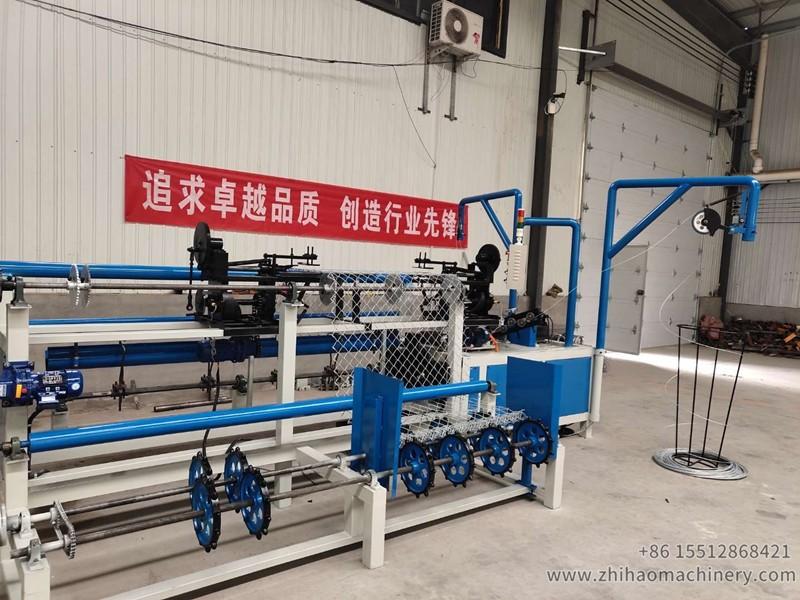

Diamond chain link weaving wire mesh fence knitting machine

Diamond chain link weaving wire mesh fence knitting machine
Model: 1-2000
Machine width: 2m
Wire mesh width: 0.5-2m
Wearing parts: Moulds, Shear knife, Proximity switch
Brand: ZHIHAO
Description: The galvanized wire single spiral chain link fence machine is welded of high-quality steel and channel steel with a PLC control system, so the frame of the machine will be more stable and stronger, and the height of the frame can be adjustable. Easy operation and high-speed efficiency.

EMAIL

Diamond chain link weaving wire mesh fence knitting machine



Advantages of Diamond chain link weaving wire mesh fence knitting machine:

1. PLC control

2. Material feeding by servo motor

3. Single die single spiral

4. Automatically weaving mesh

5. The chain link fence is automatically wond to form rolls when the desired length is manufactured.

6. Fence side can be twisted or knuckled as required


Technical parameter of Diamond chain link weaving wire mesh fence knitting machine:

Model: 1-2000

Machine width: 2m

Wire mesh width: 0.5-2m

Overall dimension: netting 3.8m *1m *2.2m, lockrand 3.7m *1m *1.4m, rolling mesh 2.7m *1m *0.7m

Machine weight: 1700kg

Wire diameter: 1.2-4.5mm

Grid size: 25-120mm

Capacity: 30-100m2/h

Voltage: 3 phase 380v ( if need other volatge, can custom made)

Power: Major motor: 3.8kw Servo motor 1 set

Flap: 1.1kw brake motor 1 set

Cutter: 0.75kw 3 phase motor 1 set

Lockrand: 0.75kw 3 phase motor 2 sets

Rolling mesh: 0.75kw 3 phase motor 1 set (rolling mesh machine)

water pump: 30w motor 1 set


wire mesh fence knitting machine, zhihaomachinery

chain link fence machine for sale, zhihaomachinery


Package and Load in container:

chain link fence machine spare parts, zhihaomachinery


Any interesting for Diamond chain link weaving wire mesh fence knitting machine, pls contact zhihaomachinery freely!
