Thrufeed thread rolling dies

Thrufeed thread rolling dies from China zhihaomachinery company
Size: M6, M8, M10, M12, M14, M16, M188, M20, M22, M24, M27, M30, M33, M36, M42, M48, M56, M64, M72, M80, M90, M100
Thickness range: 50mm - 210mm
Hole size: 54mm, 75mm
Weight: 30kg per set


Thrufeed thread rolling dies

  1. Surface for thrufeed dies: Thrufeed: The threads are as the rings on the surface of thread rolling dies.

  2. Thread rolling progress for thrufeed thread rolling dies: Set the helix angle with the roller shafts of thread rolling machines first, and insert the thread rolling dies.

  3. Axial movement for thrufeed thread rolling dies: Work piece rides between the dies on a support blade.

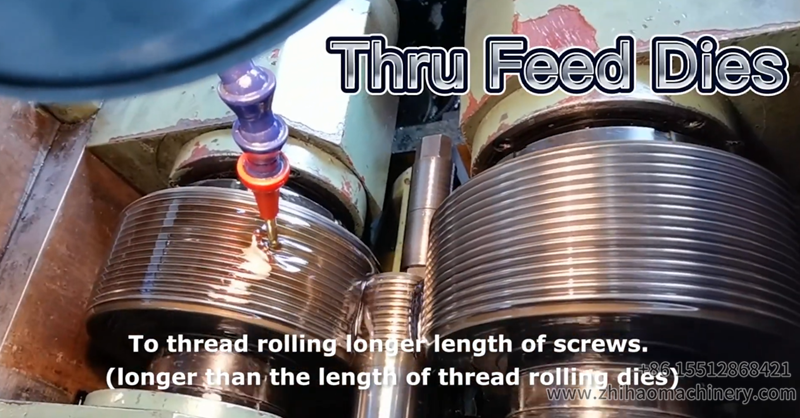

  4. Application for thrufeed dies: To thread rolling longer length of screws. (longer than the length of thread rolling dies).

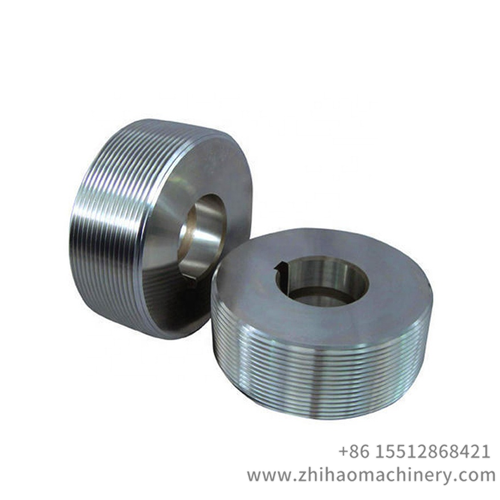

thrufeed thread rolling die, zhihaomachinery

Package and delivery for thrufeed thread rolling dies:

thread rolling mold, zhihaomachinery

If have interesting for thrufeed thread rolling dies, pls contact us freely.
