automatic stirrup rebar bending machine phmtools

Model: KT6 automatic stirrup rebar bending machine
Max single bending diameter: 16mm
Max double bending diameter: 12mm
Total power: 52.5kw
Dimension: 4000*2000*2200mm
Weight: 3000kg
Average power: 12kw/h


automatic stirrup rebar bending machine phmtools

Advantages of automatic stirrup rebar bending machine:

1, combine with horizontal and vertical straightening wheels, drive by Invance brand 52.5kw servo motor, make sure best accuracy

when straightening rebar.

2, bending spindle could rotating and telescope in high speed, could cut rebars very quick with high bending precision.

3, large storage capacity can save many processing graphics,

4, Fatek or Simens control system, touchscreen, Inovance servo motor.

5, straightening, measure length, bending, shear at same time, processing in high efficiency.

stirrup benders, zhihaomachinery

Technical parameter of automatic stirrup rebar bending machine:

Model KT6 double bending way

Single wire 5-16mm

Double wire 5-12mm

Max bending angle ±180°

Max traction speed 75m/min

Max bending speed 800°/sec

Dimension 4000*2000*2200mm

Machine color Yellow (customized)

Total power 52.5kw(include air compressor)

Work temperature -5℃---40℃

Length accuracy ±1mm

Angle accuracy ±1°

Average power 12kw/h

Weight 3000kg

Optional with long platform

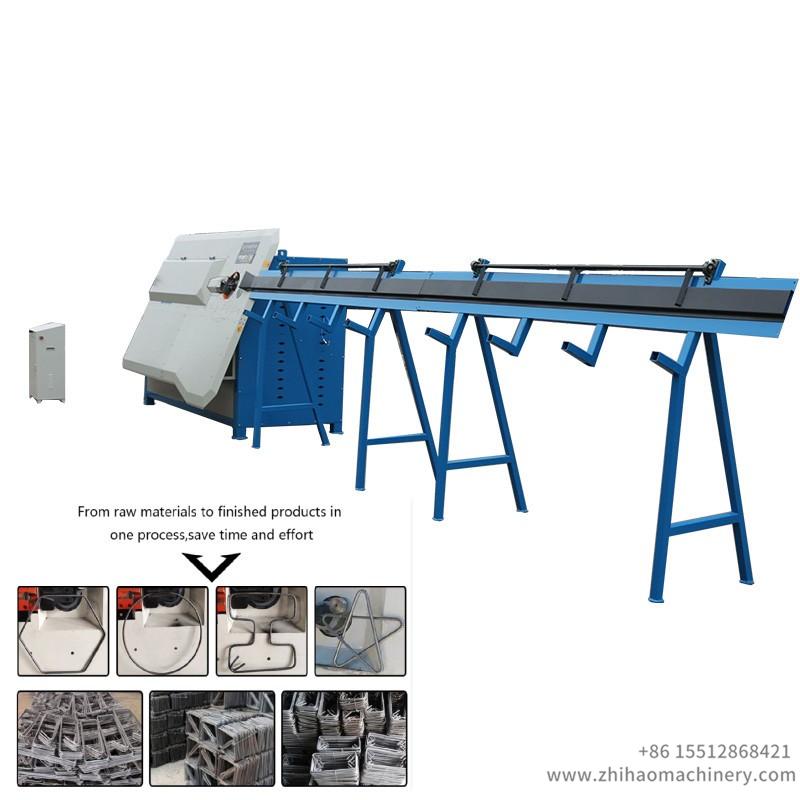

Detailed photos of automatic stirrup rebar bending machine:

rebar bending machine, zhihaomachinery

wire stirrup bending machine, zhihaomachinery

Application of automatic stirrup rebar bending machine:

Widely used in construction industry and rebar manufacturing enterprise; for steel wire rod, steel bar, steel rebar, ribbed bar, round coil bar, etc.

stirrup rebar bending machine, zhihaomachinery

If have any interesting for automatic stirrup rebar bending machine, pls contact us freely.

Email: sales@zhihaomachinery.com

Whatsapp: +8615512868421
