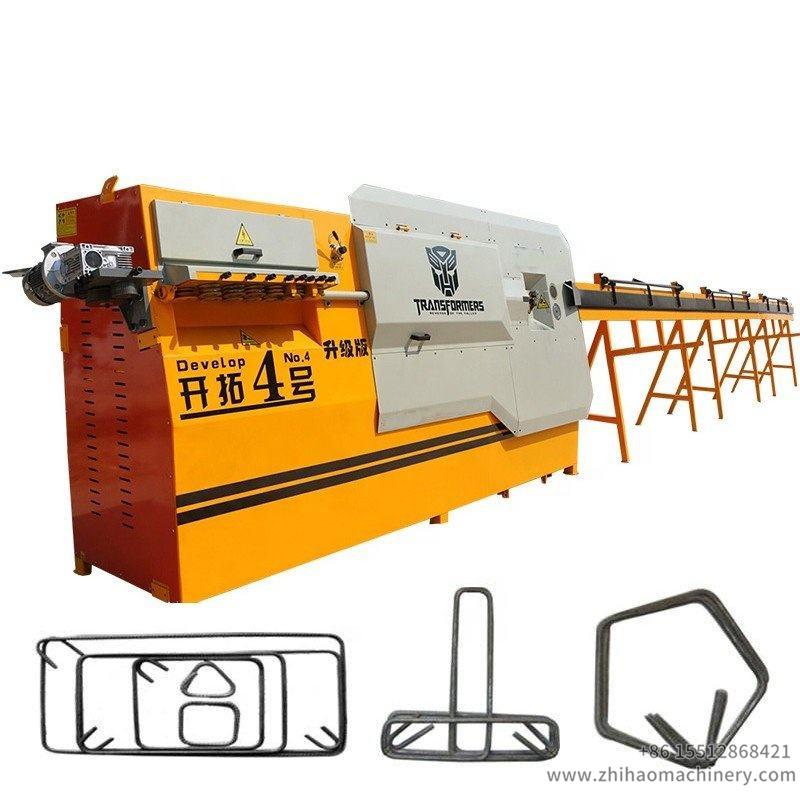

straightening coil bar stirrup bending machine for Kuwait

Model: KT4 straightening coil bar stirrup bending machine for Kuwait
Max single bending diameter: 12mm
Max double bending diameter: 8mm
Total power: 23.5kw
Dimension: 3600*1110*1700mm
Weight: 1550kg
Average power: 5kw/h


straightening coil bar stirrup bending machine for Kuwait

stirrup bending machine, zhihaomachinery

kuwait stirrup bending machine, zhihaomachinery

Technical parameter:

Model KT4 double bending way

Single wire Round steel 4-12mm Ribbed steel bar 4-10mm

Double wire Round steel 4-8mm Ribbed steel bar 4-8mm

Max bending angle ±180°

Max towing speed 60m/min


Weight 1550kg

Machine color Yellow (customized)

Process piece ≤ 2

Air system pressure ≥ 0.8mpa

Total power 23.5kw

Work temperature -5℃---40℃

Length accuracy ±1mm

Angle accuracy ±1°

Average power 5kw/h

Features of Kuwait straightening coil bar stirrup bending machine:

Automatic stirrup bending machine,adopting intelligent control, can process various sizes ,such as square, rectangle, polygon and rhombus etc..At the same time ,with straightening and cutting functions, multi-use of one machine.Greatly enhance the production efficiency and reduce labour costs.

Adopting microcomputer control, it has strong functions, high expansibility, Chinese captions, interactive operation and it is easy to study.

Speed is set in sections. The precision of bending tube is high. Multi-angle workpiece is finished at one time.

Besides, assistant pushing, core existing and other functions may also be equipped. And thin-wall pipes are also able to be bended.

Adapted material: round bar, screw rebar,stainless steel, copper pipe, aluminum pipe; articular fittings: particular mould, crease-proof plate, assistant device and so on.

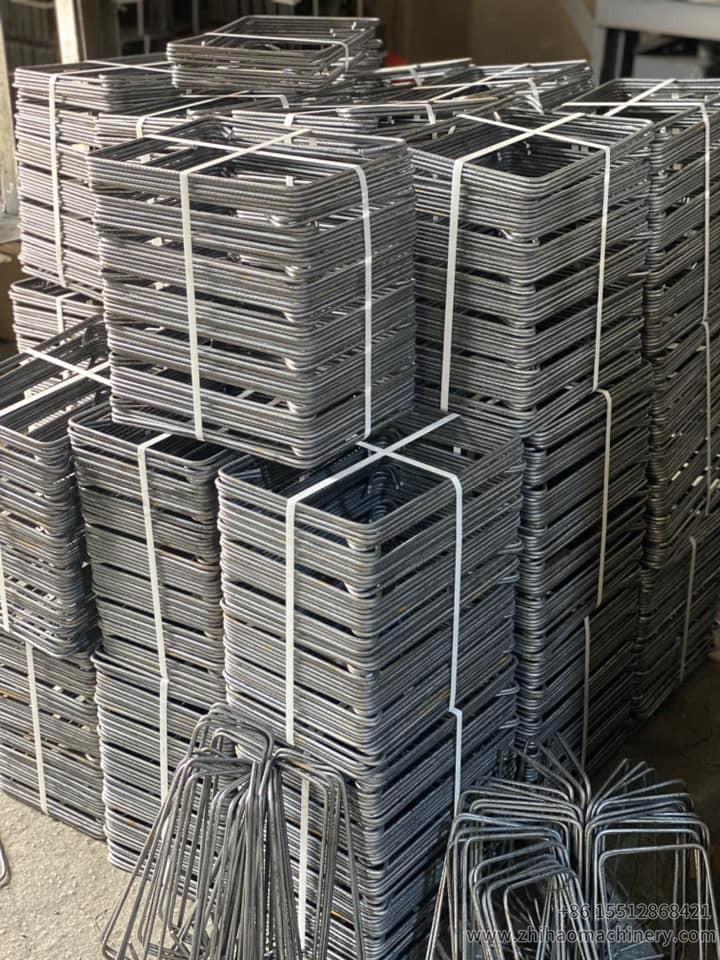

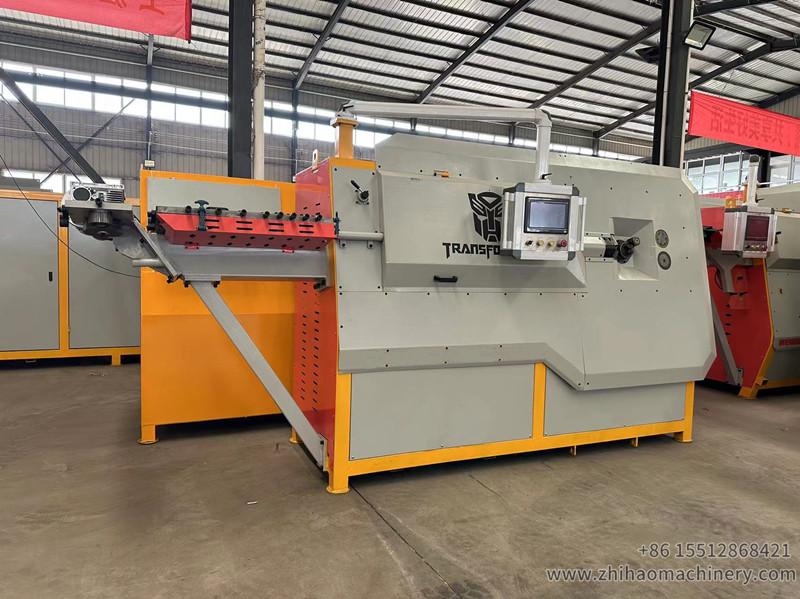

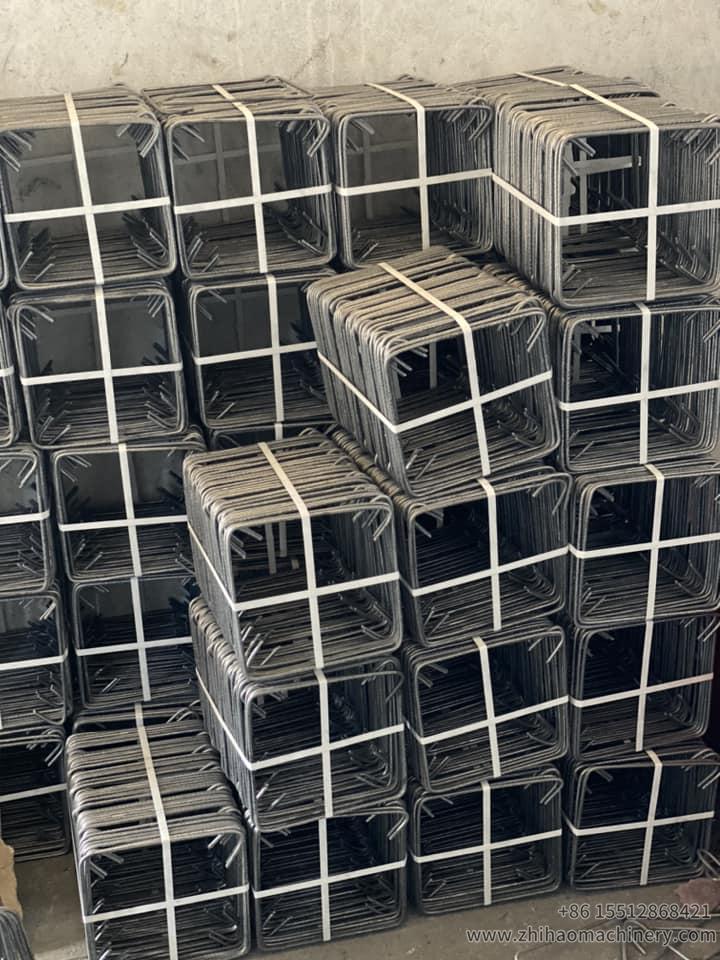

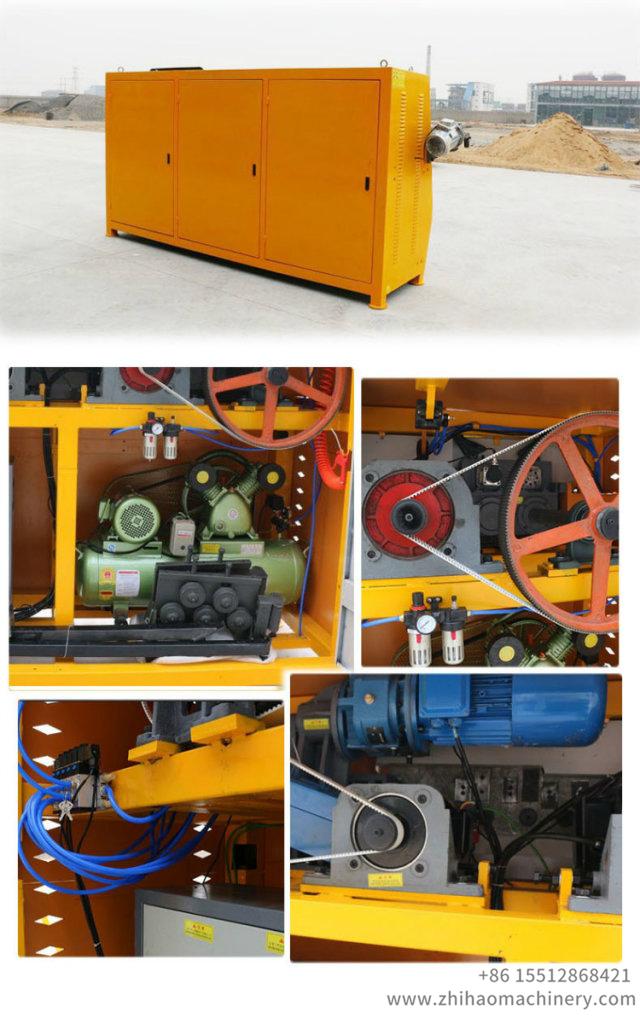

Detailed photos of Kuwait straightening coil bar stirrup bending machine:

develop stirrup bending machine, zhihaomachinery

steel bar stirrup bending machine, zhihaomachinery

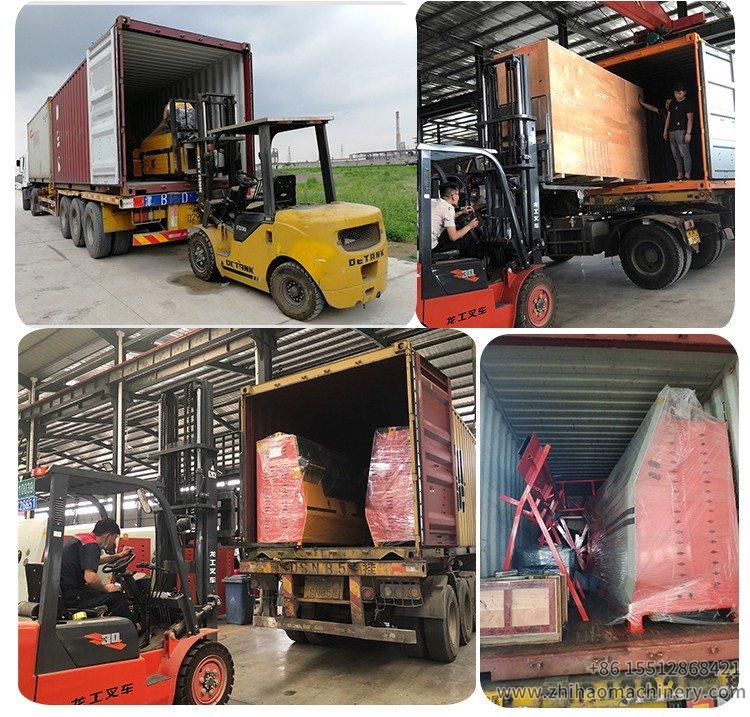

Packing and Delivery:

automatic stirrup bending machine, zhihaomachinery

Why choose us?

1. For price, we are professional manufacturer in Hebei province, we can supply competitive price for you.

2. For pre-sales service, our sales team will answer all your questions within 24 hours, welcome you visit our factory to verify quality.

3. For after-sales service, we have professional technician to solve your problems within 24 hours, life time technical support.

4. For packages, fumigation-free marine wooden box.

5. For payment, we accept TT, LC, WEST UNION and etc.

6. For delivery time, we always have machines in stock.

digital control stirrup bending machine, zhihaomachinery

More details of Kuwait straightening coil bar stirrup bending machine, pls contact zhihaomachinery freely!

Email: sales@zhihaomachinery.com

Whatsapp: +8615512868421
