Double Wire & Single Wire Fully Automatic Diamond Mesh Chain Link Fence Making Machine Factory

Model: 1-2000
Machine width: 2m
Wire mesh width: 0.5-2m
Wearing parts: Moulds, Shear knife, Proximity switch
Brand: ZHIHAO
Description: The automatic chain link fence making machine is welded of high-quality steel and channel steel with a PLC control system, so the frame of the machine will be more stable and stronger, and the height of the frame can be adjustable. Easy operation and high-speed efficiency.

EMAIL

Double Wire & Single Wire Fully Automatic Diamond Mesh Chain Link Fence Making Machine Factory


Model: 1-2000

Machine width: 2m

Wire mesh width: 0.5-2m

Overall dimension: netting 3.8m *1m *2.2m, lockrand 3.7m *1m *1.4m, rolling mesh 2.7m *1m *0.7m

Machine weight: 1700kg

Wire diameter: 1.2-4.5mm

Grid size: 25-120mm

Capacity: 30-100m2/h

Voltage: 3 phase 380v ( if need other volatge, can custom made)

Power:

Major motor: 3.8kw Servo motor 1 set

Flap: 1.1kw brake motor 1 set
Cutter: 0.75kw 3 phase motor 1 set
Lockrand: 0.75kw 3 phase motor 2 sets
Rolling mesh: 0.75kw 3 phase motor 1 set (rolling mesh machine)
water pump: 30w motor 1 set

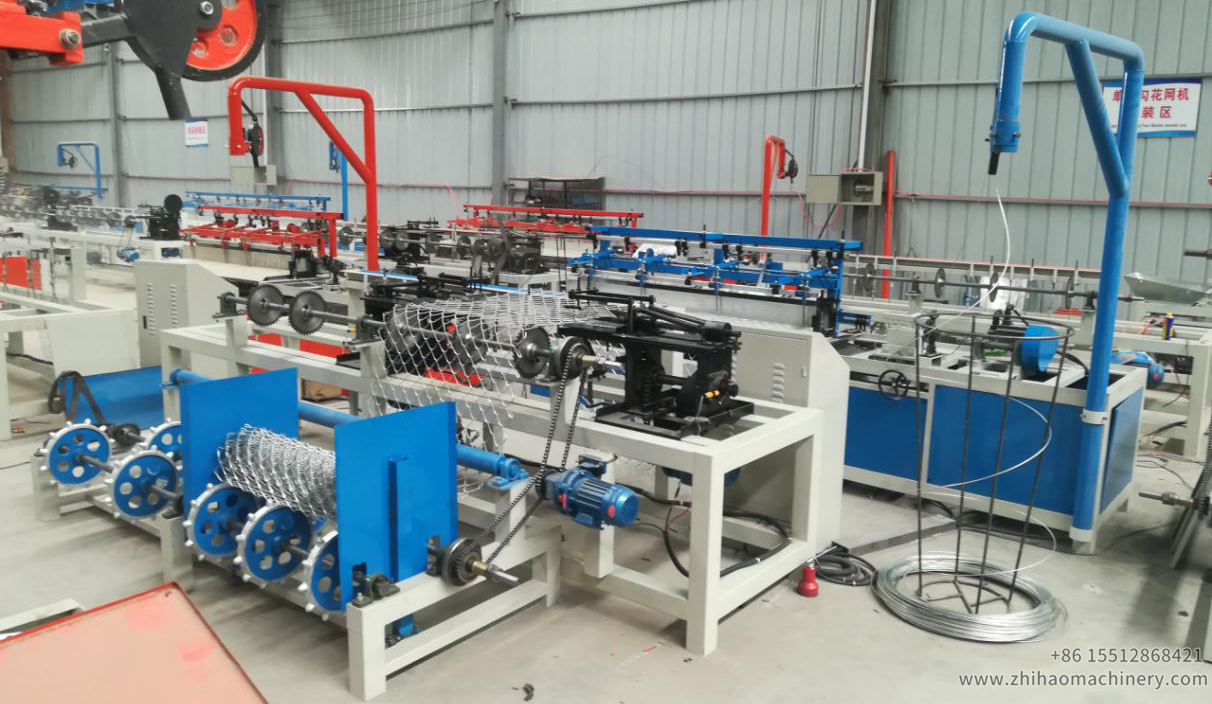

Double Wire / Single Wire Fully Automatic Diamond Mesh Chain Link Fence Making Machine Factory

chain link fence making machine, zhihaomachinery

diamond mesh making machine, zhihaomachinery


Working Principle

1. The wire is taken in from the pay-off stand and passed through the dies where the diamond size takes place.Different gap sized.

2. After passing from the die, the diamond pattern wire is automatically thrown on the winding shaft in the stitching process.

3. Once the stitching is complete, the woven is manually glided down to enable the next switch to take place.

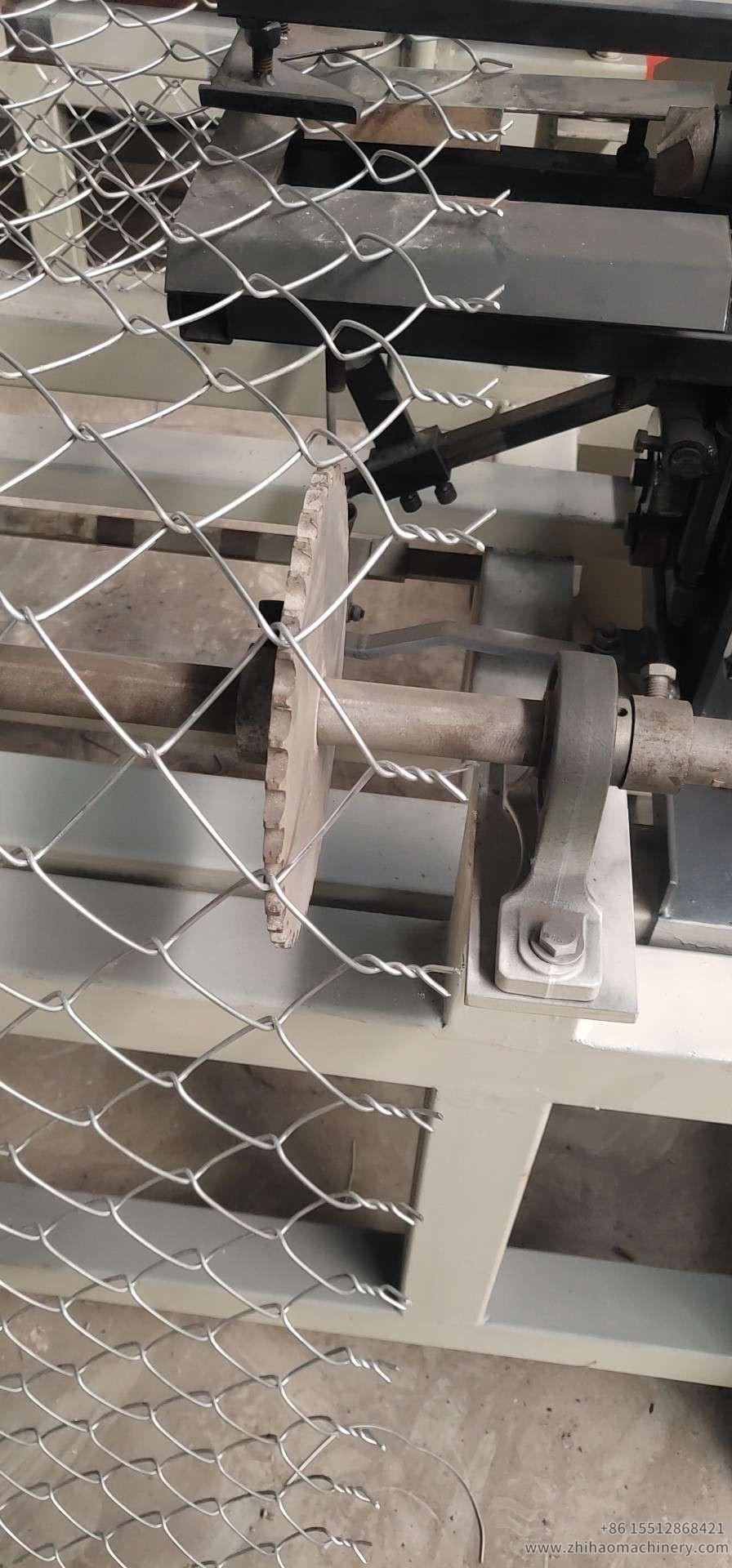

4. The chain link is automatically wound to form rolls when the desired length is setted.

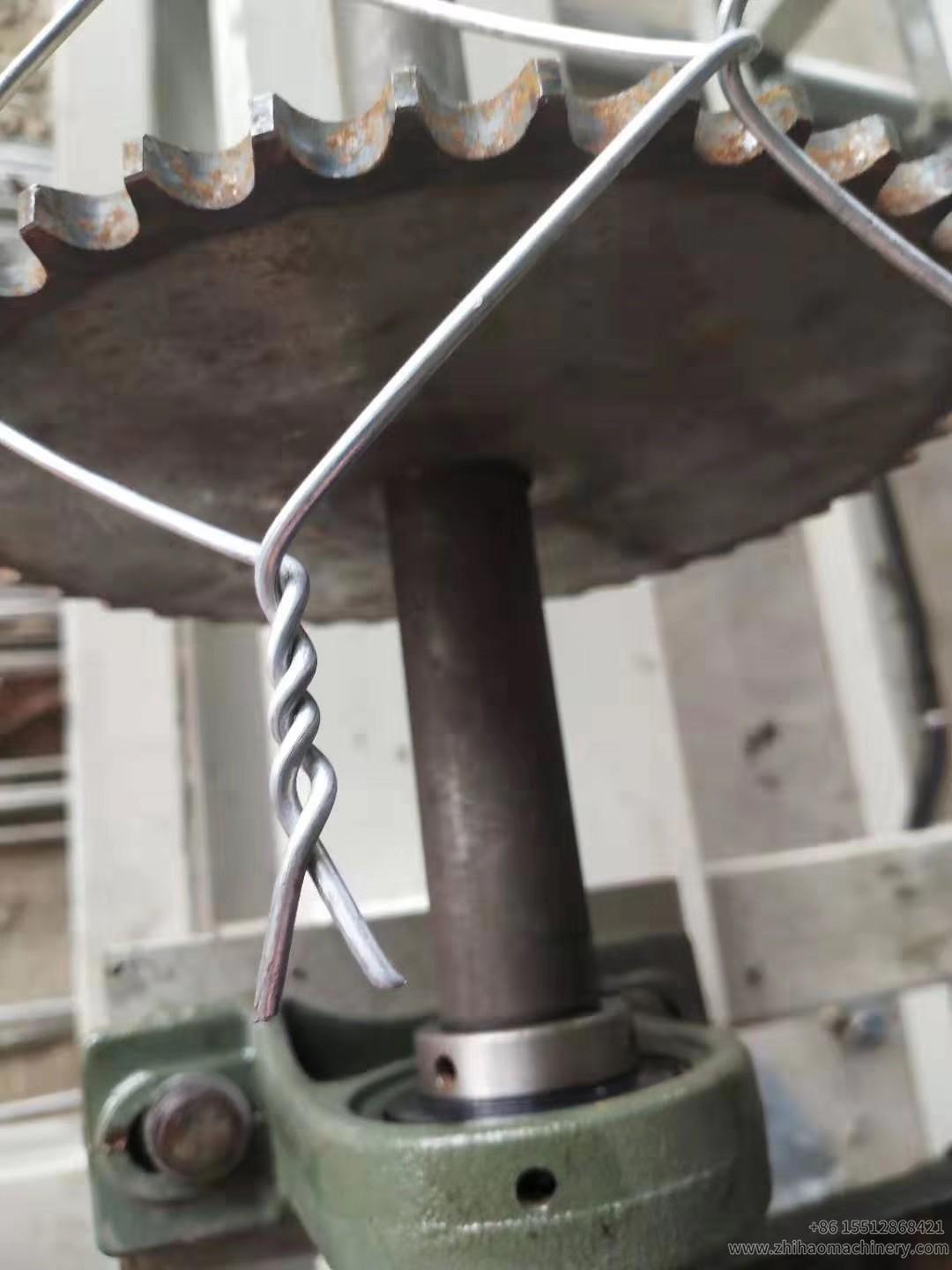

5. One side or both side of the end of net hole is twisted or with burr in edge.

6. Use rolling side machine to make it into rolls.



Advantage

1. The machine is controlled by PLC automatic controller, so only one person is needed to operate it.

2. One wire feeding which can reduce the breakdowns.

3. Wide width weaving scope: 1.3-4.5mm.

4. The high productivity for this machine can be 100m²/h.

5. The width scope can be 600-4000mm, and we can customize it for you.

6. The mesh size can be 25x25-120x120mm, and can be changed according to the mould.


Usage

The product is wildly used as prevent for road, railway, airport, residence district, seaport, garden, feeding and husbandry.
