cnc wire bender machine for sale

Model: KT4 cnc wire bender machine for sale
Max single bending diameter: 12mm
Max double bending diameter: 8mm
Total power: 23.5kw
Dimension: 3600*1110*1700mm
Weight: 1550kg
Average power: 5kw/h


cnc wire bender machine for sale

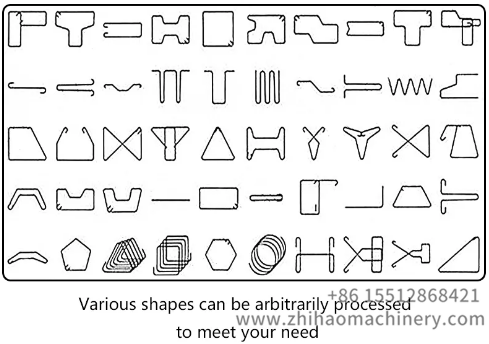

1.CNC control, the machine can process more than 500 types stirrup.

2.Bend in two directions, meet you various need.

3. Large Inclined plane design can process maximum 1500*1500 mm big size.

4. Widened machine body, more stable when working.

5. Famous brand servo motor, guarantee high quality of machine.

Technical parameter:

Model KT4 double bending way

Single wire Round steel 4-12mm

Ribbed steel bar 4-10mm

Double wire Round steel 4-8mm

Ribbed steel bar 4-8mm

Max bending angle ±180°

Max towing speed 60m/min

Max bending speed 800°/sec

Dimension 3600*1110*1700mm

Machine color Yellow (customized)

Process piece ≤ 2

Air system pressure ≥ 0.8mpa

Total power 23.5kw

Work temperature -5℃---40℃

Length accuracy ±1mm

Angle accuracy ±1°

Average power 5kw/h

Weight 1550kg

Optional Long platform 3m/6m/9m

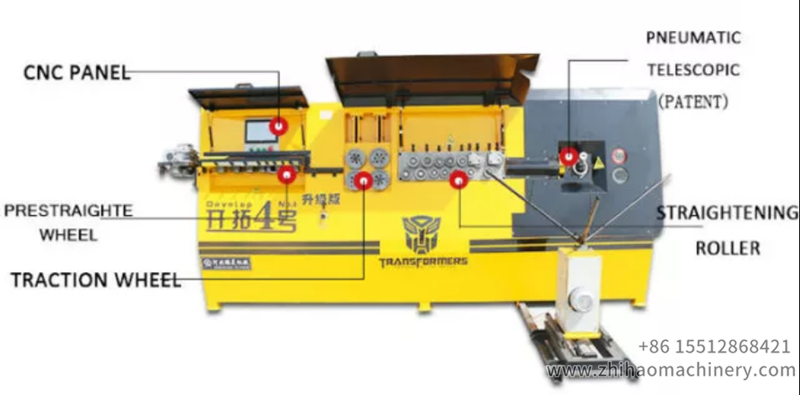

Detailed photos of wire bender machine:

wire bender machine, zhihaomachinery

bar stirrup bending machine, zhihaomachinery

Why choose us?

1. For price, we are professional manufacturer in Hebei province, we can supply competitive price for you.

2. For pre-sales service, our sales team will answer all your questions within 24 hours, welcome you visit our factory to verify quality.

3. For after-sales service, we have professional technician to solve your problems within 24 hours, life time technical support.

4. For packages, fumigation-free marine wooden box.

5. For payment, we accept TT, LC, WEST UNION and etc.

6. For delivery time, we always have machines in stock.

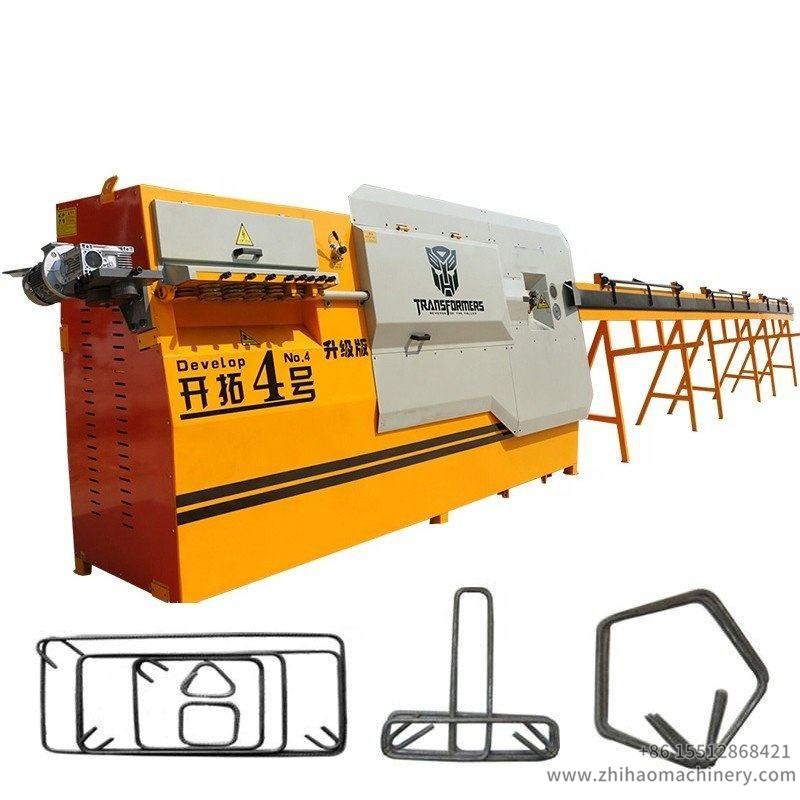

cnc wire bender machine, zhihaomachinery

More details pls contact zhihaomachinery freely!

Email: sales@zhihaomachinery.com
