Fast Speed Automatic Butterfly Type Wire Hanger Making Machine

Fast Speed Automatic Butterfly Type Wire Hanger Making Machine
Wire size: 2.0-4.5mm
Capacity: 40-50pcs/min
Voltage: 3phase 380v 50hz/ 3phase 220v 60hz
Keyword: wire hanger molding machine
Weight: 900kg
Dimension: 1.85*1.0*1.68m
Package: export wooden box


Fast Speed Automatic Butterfly Type Wire Hanger Making Machine

Working video: https://youtube.com/shorts/X4G5wvzjUTI

Brief Introduction of wire hanger making machine:

1. The wire hanger forming machine is in sheet plate welded structure, with internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.

2. Double hydraulic oil cylinder is applied for upper transmission, provided with mechanical limit stopper and synchronous torsion bar, typical of stable and reliable operation, as well as high precision.

3. Electrical control and manual fine-tuning mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital display device, easy and quick in use.

4. Upper die is fitted with deflection compensation device.

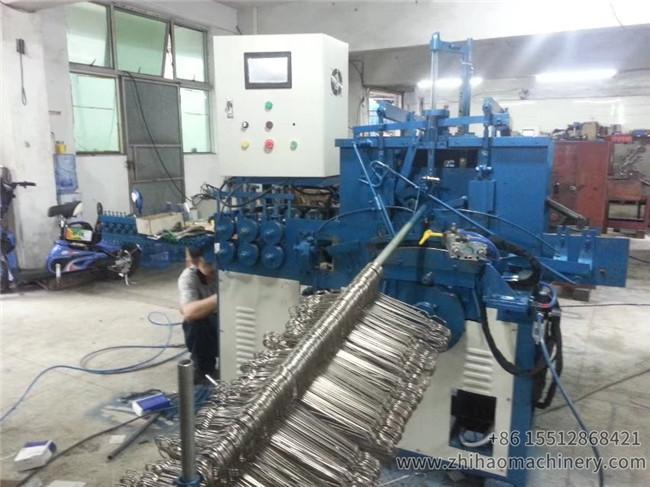

wire coat hanger making machine, zhihaomachinery

The raw material of wire coat hanger machine:

Plating line, iron wire,  stainless steel strings P.V.C. coated wire, galvanized wire.

Technical parameter of automatic butterfly type wire hanger making machine:

Host computerMotor Power (KW) 2.2

specific speed 1;50

Line frame Motor Power(KW) 1.5

specific speed 1;30

serve Motor Power(KW) 2.0

serve specific speed 1;2

Output per minute(PCS) 40-50

Remark: Stainless steel wire Drdiary wire

Specification 1.85*1.0*1.68m

weight 900kg

Material 45# steel

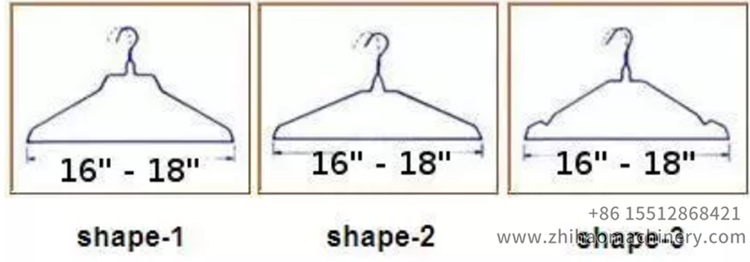

hanger size 14inch to 19inch

Diameter 2.0-4.5MM

wire hanger making machine, zhihaomachinery

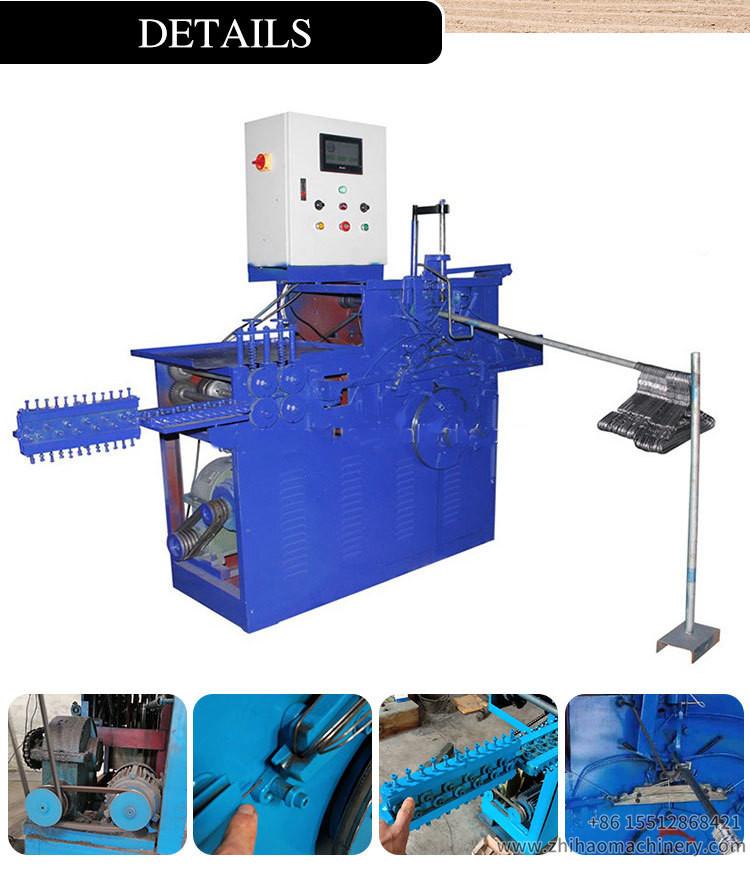

Automatic Wire Hanger Making Machine, zhihaomachinery

Any more question for Fast Speed Automatic Butterfly Type Wire Hanger Making Machine, pls contact zhihaomachinery freely.
