Automatic thread rolling machine for J-Type Anchor Bolt

Model: Z28-360 Automatic thread rolling machine for J-Type Anchor Bolt
Max rolling diameter: 100mm
Max rolling thread pitch: 10mm
Max rolling pressure: 450kn
Description: Z28-360 metal steel screw hread rolling machines are used to produce screws, bolts, and studs. Thread rolling is a cold-form forming operation used to form external screw threads in a blank. During the thread rolling process, a hard die is pressed onto a rotating workpiece (also called a blank) that is attached to the tie rod thread rolling machine.


Automatic thread rolling machine for J-Type Anchor Bolt

Automatic J anchor bolt thread rolling machine descriptions:

1.Two spindle of the machine rotates synchronously in the same direction .Right spindle feed motion in the horizontal direction under the rolling drive.Two rolling wheels make the work as required and other thread shape by rolling.

2.This anchor bolt thread rolling machine is mainly composed of an organism, rotating box, fixed spindle seat , a movable spindle seat, hydraulic system and electrical parts etc.

3.The fixed seat and the movable seat main function is installing the screw rolling wheel and adjusting the rolling wheel tooth.

4.This threaded bold machine is a hydraulic power system, it is mainly to make the active spindle seat to feed and return .

5.The two spindle seat adjust center respectively.Angle of table axis can be adjusted in the plus or minus 3 degrees.Each shaft to feed the workpiece can be determined according to the parameters of workpiece and mechanical properties of materials

bolt thread rolling machine, zhihaomachinery

Technical parameter of J anchor bolt thread rolling machine:

Items Z28-360

Rolling thread range Diameter 100mm

Max thread pitch 10mm

Spindle angle ±10°

Max rolling pressure 450kn

Spindle RPM CVT

Roller size range Outside diameter 230mm

Hole 75/85mm

Max width 200mm

Rolling time 0.1-99.9s

Rest time 0.1-99.9ss

Spindle drive power 15kw

Hydraulic transmission power 11kw

Dimension 2150*1850*1550mm

Weight 3600kg

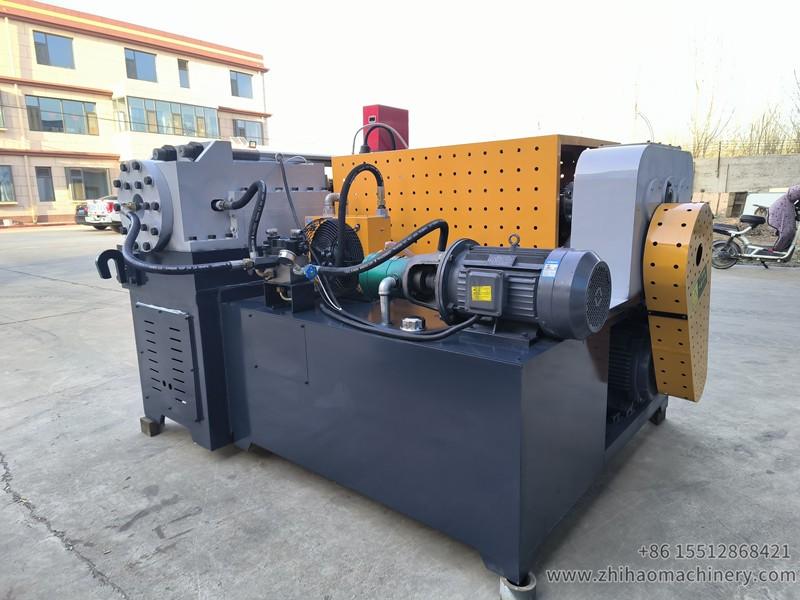

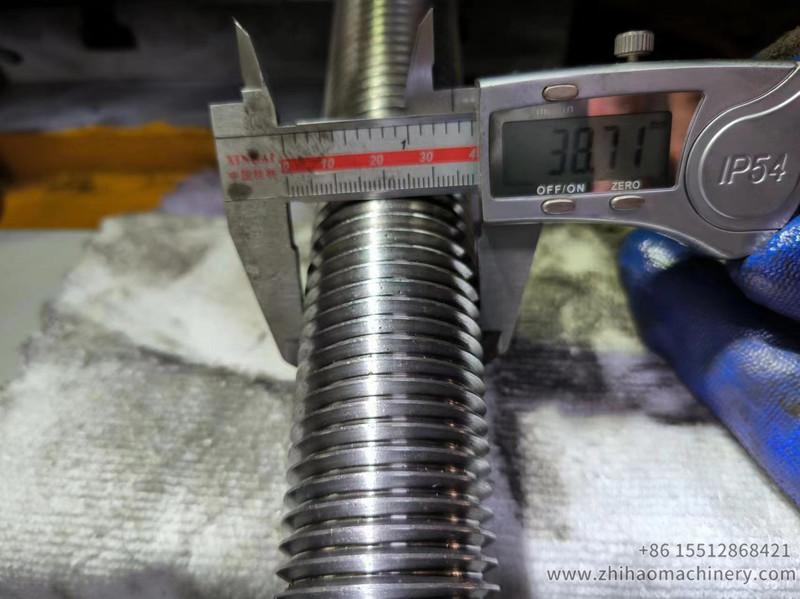

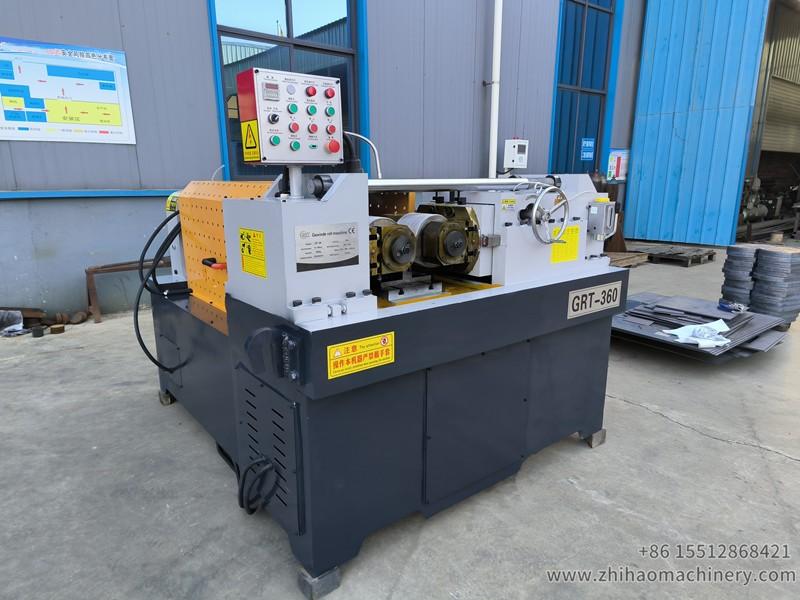

Photos for J anchor bolt thread rolling machine:

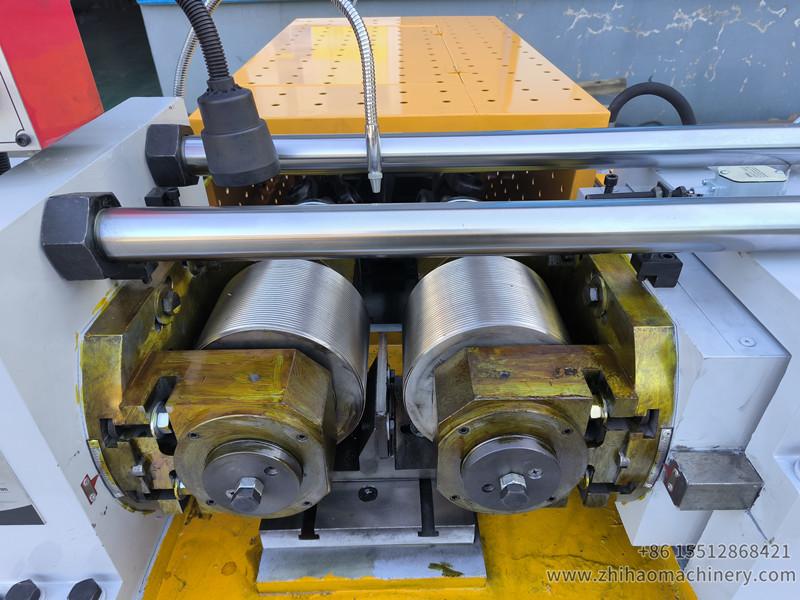

anchor bolt thread rolling machine, zhihaomachineryJ anchor thread rolling machine, zhihaomachinerythread roller, zhihaomachinery

Any more questions of J anchor bolt automatic thread rolling machine, pls contact us freely.
