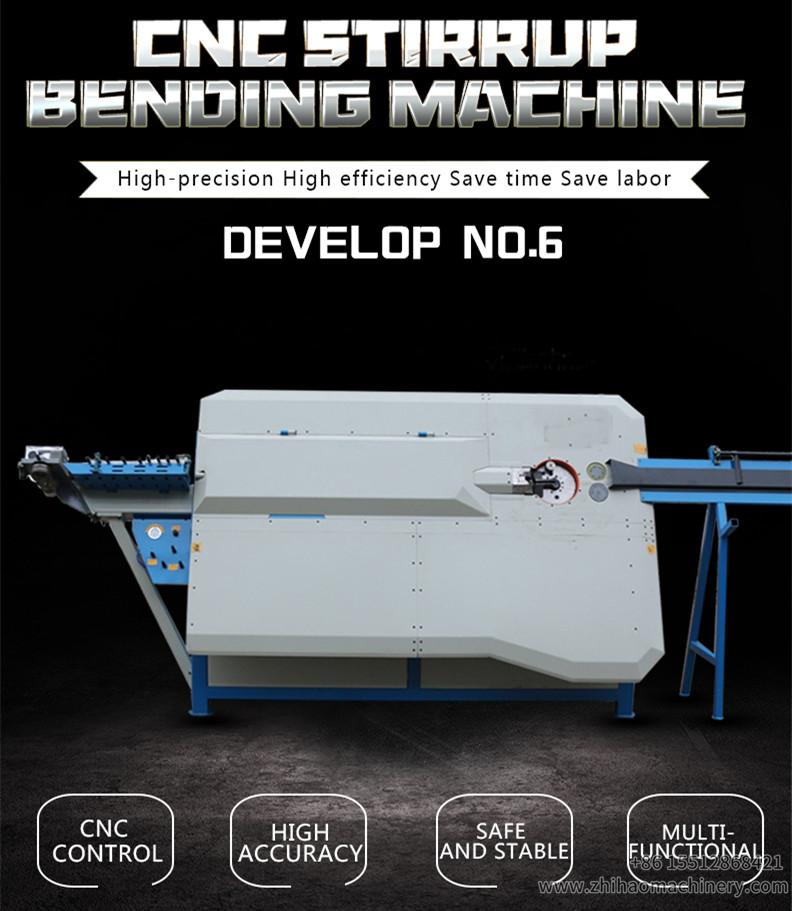

Amazing CNC Automatic Stirrup Bending Machine

Amazing CNC Automatic Stirrup Bending Machine

- double direction bending.

- worm gear reducer connect to servo motor directly, enable a simple structure and easy maintenance.

- clockwise bending only which can meet the requirement of most construction site.

- Pay-off and air compressor not include

Technical parameter for Amazing CNC Automatic Stirrup Bending Machine:

Model KT6 double bending way

Single wire 5-16mm

Double wire 5-12mm

Max bending angle ±180°

Max traction speed 75m/min

Max bending speed 800°/sec

Dimension 4000*2000*2200mm

Machine color Yellow (customized)

Total power 52.5kw(include air compressor)

Average power 12kw/h

Weight 3000kg

Optional with long platform

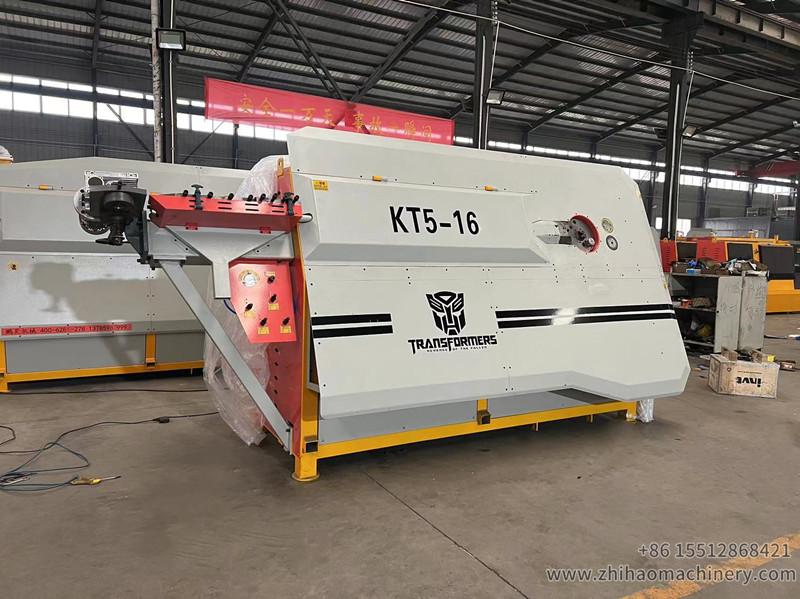

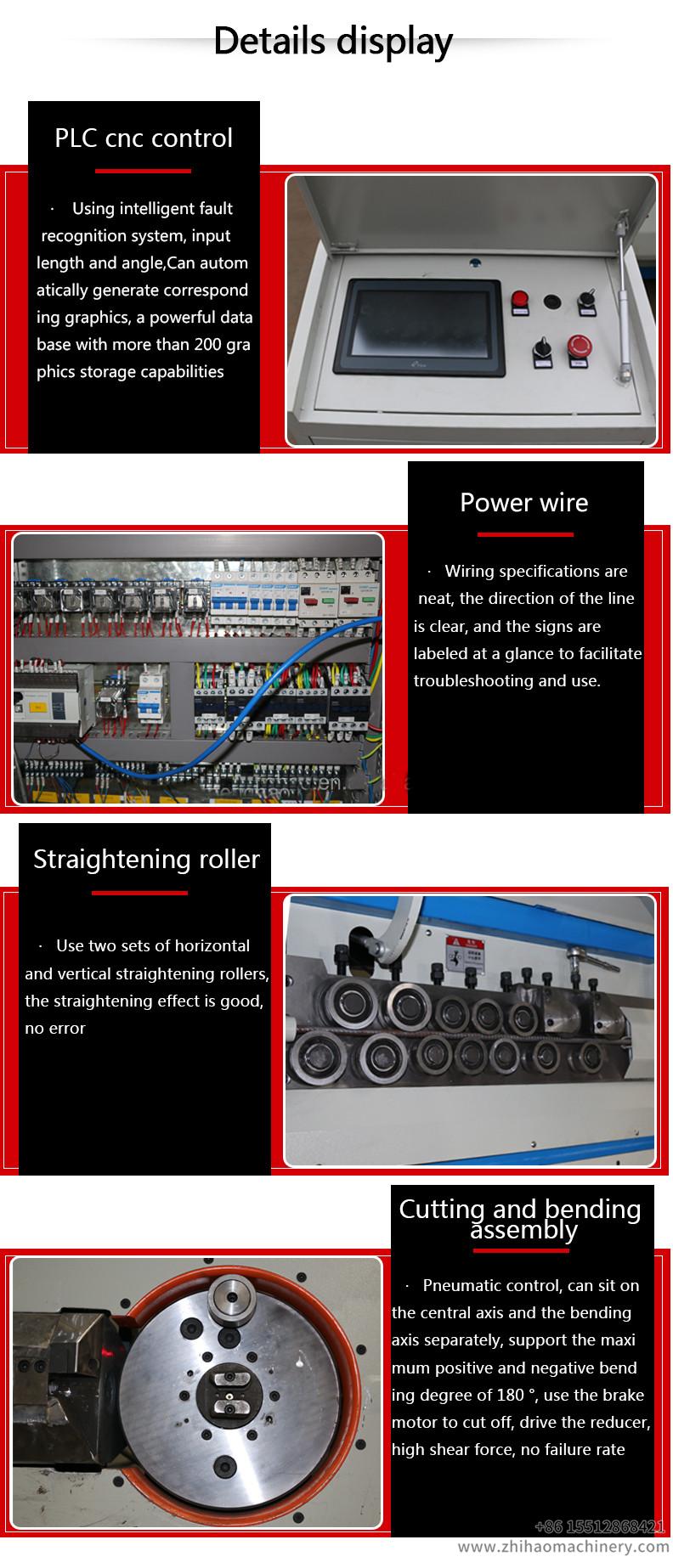

Detailed photos for Amazing CNC Automatic Stirrup Bending Machine:

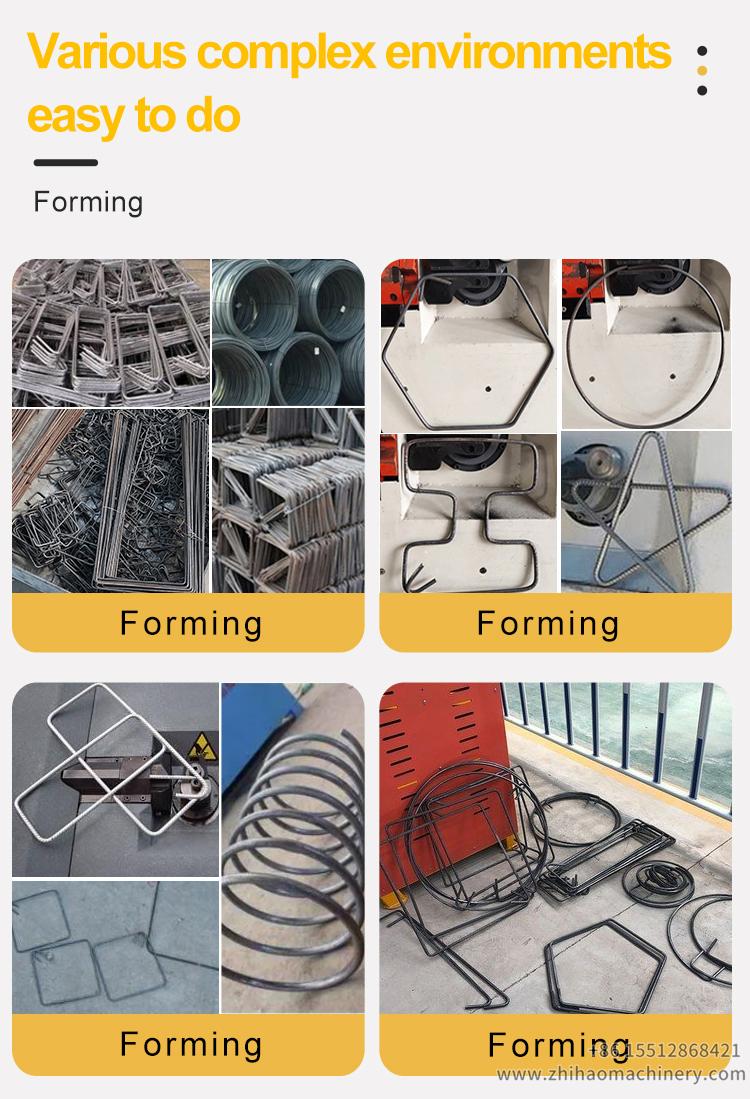

Application of Amazing CNC Automatic Stirrup Bending Machine:
Widely used in construction industry and rebar manufacturing enterprise; for steel wire rod, steel bar, steel rebar, ribbed bar, round coil bar, etc.
